Radio with CD/MP3/USB/AUX Home Pages on the CommandCenter™

RXA0122014-UN-04NOV11

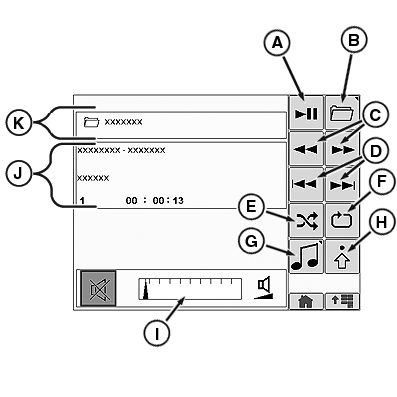

MP3 Home Page Shown

RXA0122252-UN-15NOV11

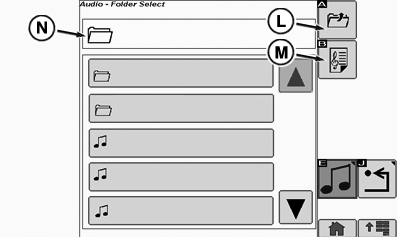

Audio Folder Select Page

A - Play/Pause Softkey

B - Folder Select Softkey

C - Fast Reverse/Fast Forward Softkeys

D - Previous Track/Next Track Softkeys

E - Random Folder/Random All

F - Repeat Track/Repeat Folder/Repeat All Softkey

G - Select Source Softkey

H - Audio Settings Softkey

I - Volume Adjustment

J - Display Area 1

K - Folder Name

L - Folder Softkey

M - Playlist Enable/Disable Softkey

N - Folder Name

The Folder Select softkey (B) will bring you to the Folder Select page. The Folder Select softkey and Folder Name (K) are not available when playing a CD. The Random softkey (E) will cycle through Random Folder, Random All, and Random Off. The Repeat softkey (F) will cycle through Repeat Track, Repeat Folder, Repeat All, and Repeat Off. The Select Source softkey (G) gives the operator the ability to cycle through radio tuner sources and external source (see Premium Radio Source Select on the CommandCenter™ in this section).

The Display Box (J) will show artist name, album name, song name, track number, and elapsed time. Depending on the home page that is selected, some of these displays may not be available. Folder Name (K) is not available on the CD Home Page.

Operator must select a song to play, then the radio will play songs from that folder if repeat folder is ON, otherwise it will play songs from the entire device. The Playlist softkey (M) will enable playlist mode. Playlist mode allows the operator to select a playlist.
