Operating the Phone Through the CommandCenter™

RXA0119442-UN-09AUG11

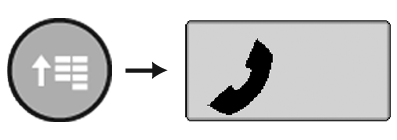

CommandARM Menu Button → Phone Softkey

RXA0122015-UN-04NOV11

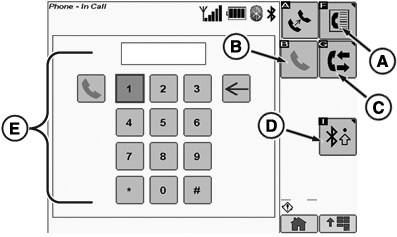

Home Page for Phone

A - Phone Book Softkey

B - Dial Phone Number Softkey

C - Directories Softkey

D - Bluetooth Settings Softkey

E - Phone Softkeys

1. Select Menu button.
2. Select Phone softkey.

To place a call, enter the phone number with the number softkeys. Next select the Dial Phone Number softkey (B).

While in a call, an In Call Phone popup will display name, contact information, and number.

The Phone Book softkey (A) will transfer you to the Phone Book page (see Phone Book on the CommandCenter in this section). The Bluetooth® Settings softkey will transfer you to the Bluetooth® Settings page (see Premium Radio Settings on the CommandCenter™ in this section).

NOTE: Phone softkeys (E) and phone book softkey are not available while in a call. Use your cell phone if you need to use numbers while in a call.

Phone buttons on this page will be disabled while the phone is syncing the phonebook with the radio.
