Phone Book on the CommandCenter

RXA0117319-UN-18MAY11

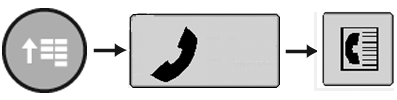

CommandARM Menu Button → Phone → Phone Book

RXA0122011-UN-15NOV11

Radio Phone Book

RXA0122013-UN-15NOV11

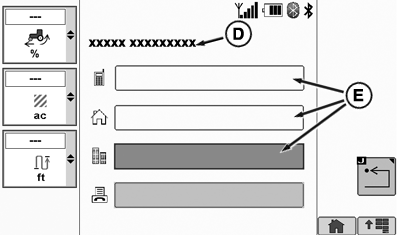

Phone Book Entry Page

A - Alphabetic Softkeys

B - Return Softkey

C - Phone Book Contact List

D - Contact's Name

E - Contacts' Phone Numbers

Select Menu button.

Select Phone softkey.

Select Phone Book softkey.

If a new contact is made in your cell phone, the phone must be re-synced with the radio Bluetooth® (see Phone Settings on CommandCenter™ in this section). A contact entry CANNOT be edited through the CommandCenter™. The contact must be edited through the cell phone, and the cell phone must be re-synced with the radio Bluetooth® (see Phone Settings on CommandCenter™ in this section).

Selecting a contact from the list (C) will bring up a phone book entry page listing all contacts phone numbers (E) (cell, work, home). Selecting the number on the phone book entry page will directly call the number. Selecting appropriate Alphabetic softkey (A) in the right region narrows the number of names in the contact list to those names beginning with the letters on the selected softkey.

An incoming call from a contact will display a contact's name and number. If a call is received from an unknown phone number, the phone number and Unknown will be displayed in a popup window.

When a call is missed, a missed call popup window will be displayed with the caller's phone number and name if the caller is listed in the phone book, or Unknown if the caller is not listed.

NOTE: Some phones will not correctly sync with the radio Bluetooth®. When this happens, a call cannot be made from the Phone Book page.

The maximum number of phone book entries is 650. The maximum number of characters in a phone number is 20. The maximum number of characters in a phone book name is 20.
