Pre-Assemble the Pick-Up Weight

CAUTION: When performing the work described below, comply with the safety measures.

CAUTION: Select lifting and conveying equipment appropriate for the weight of 900 kg (1985 lb) or 1150 kg (2535 lb).

CAUTION: Use approved lifting equipment only.

CAUTION: Observe safety rules. Do not stand under suspended loads.

NOTE: To facilitate the transport of the weight, it is a good idea to pre-assemble it on a pallet. Make sure the bearing weight of the pallet is sufficient.

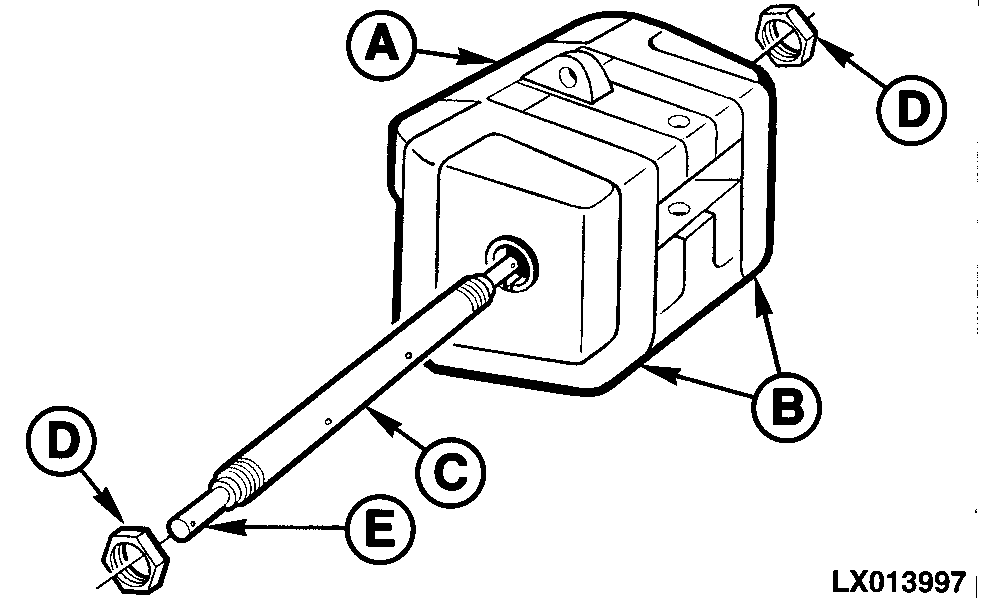

LX013997
LX013997-UN-02APR96

Use lifting equipment to lower the center weight (A) onto a level surface.

Arrange the side weights (B) alongside the center weight and install bearing shaft (C).

Tighten nuts (D) to 300 Nm (220 lb-ft).

If attaching to a three-point hitch, adjust pins (E) to their maximum lengths.

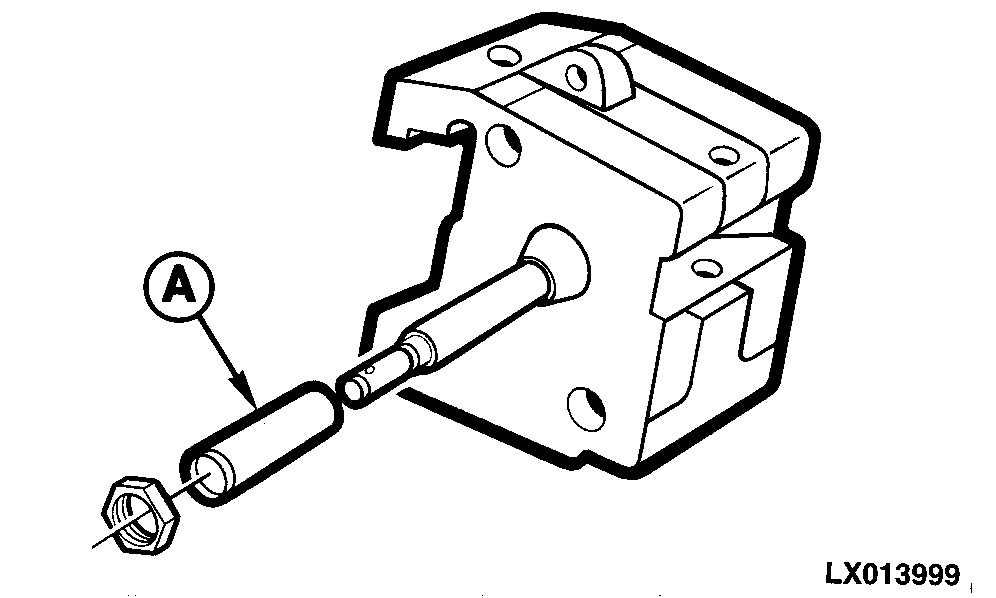

LX013999
LX013999-UN-02APR96

If attaching the center weight only, install a spacer bushing (A) at each end of the bearing shaft.

Tighten nuts to 300 Nm (220 lb-ft).

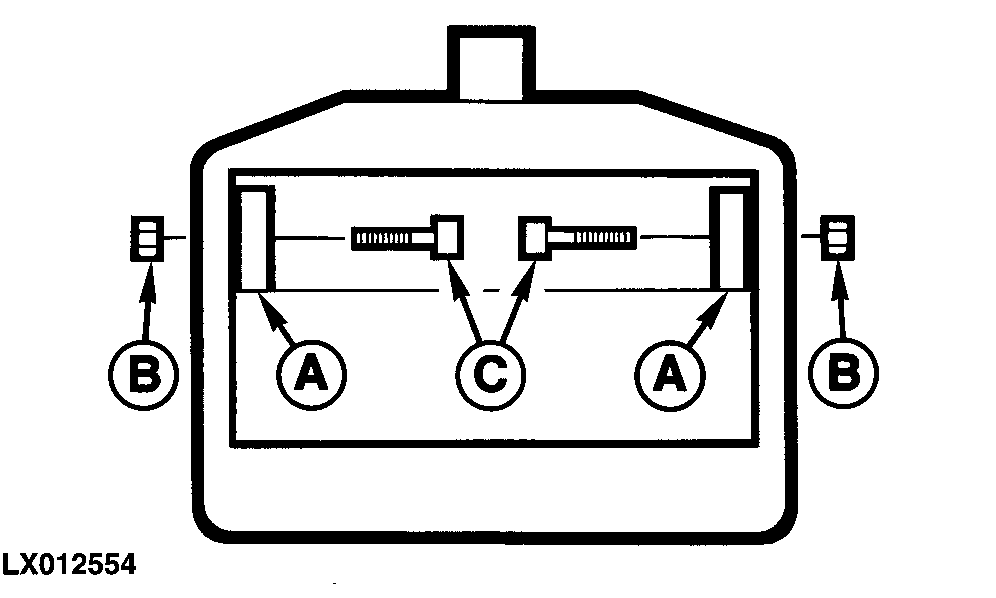

LX012554
LX012554-UN-27JUN96

When attaching to a 60 kg (130 lb) basic weight, install a spacer (A) at both inner sides.

When attaching to a 110 kg (240 lb) basic weight, spacers are not needed.

Insert the hex. socket screws (C) from the inner side and install nuts (B).

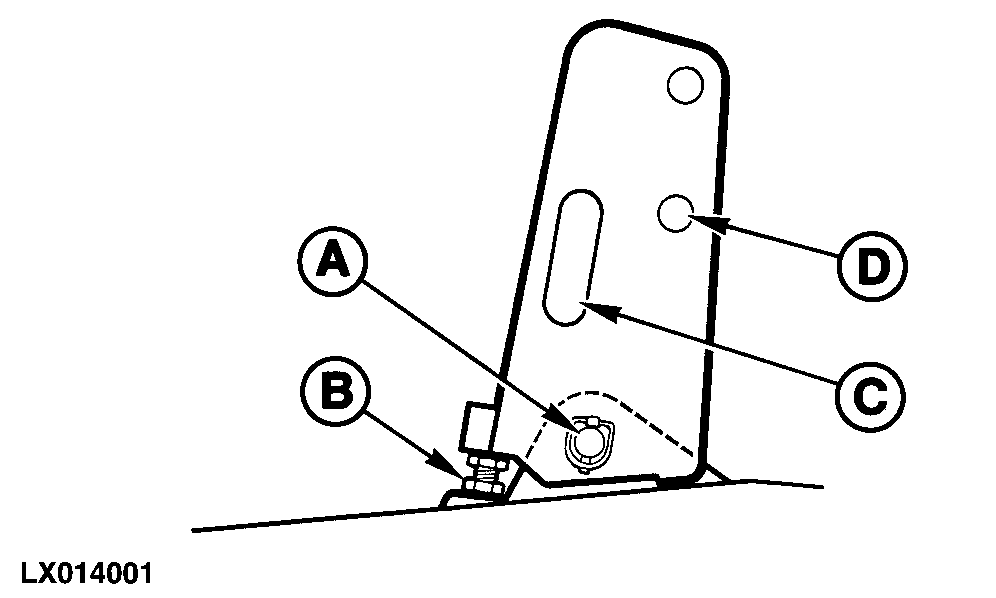

LX014001
LX014001-UN-02APR96

If attaching to the three-point hitch, install the center link bracket. Install and secure pin (A). Adjust the depth to which screw (B) is screwed into the center link bracket until the screw is in contact with the pick-up weight, and then counter-lock the screw.

The center link bracket has a recess (C) where the spacers can be stored when not in use.

When the center link is not in use, it is tilted over and fastened above the bore hole (D) at the weight.
