DirectDrive — Special Features when Maneuvering the Tractor

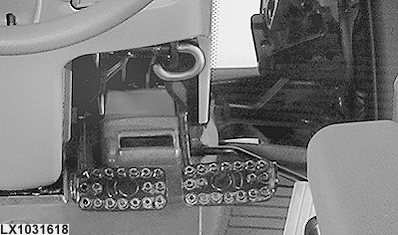

LX1031618-UN-23JAN06

CAUTION: This description applies only if AutoClutch (the automatic clutch function) is switched on.

The brake pedals activate an automatic clutch function. Partially depressing both of the brake pedals allows the tractor to creep - this makes it easier to back up to an implement, for example. Fully depressing the two brake pedals stops the tractor. There is no need to depress the clutch pedal. However, be aware that:

• Full torque remains available even at very slow speeds. In certain conditions, even obstacles will not bring the tractor to a standstill.
• After the brakes are released, the tractor automatically accelerates up to the speed currently commanded by the hand throttle or accelerator pedal.
• If you go back to a tractor with a conventional transmission (without AutoClutch function), and when AutoClutch is switched off, it is essential to remember the following: When the brake pedals are depressed to stop the tractor, the clutch does not separate automatically and the tractor continues to move in the selected direction of travel.

NOTE: Depress the brake pedals when turning on a downhill slope, as this will make the tractor change direction faster.
