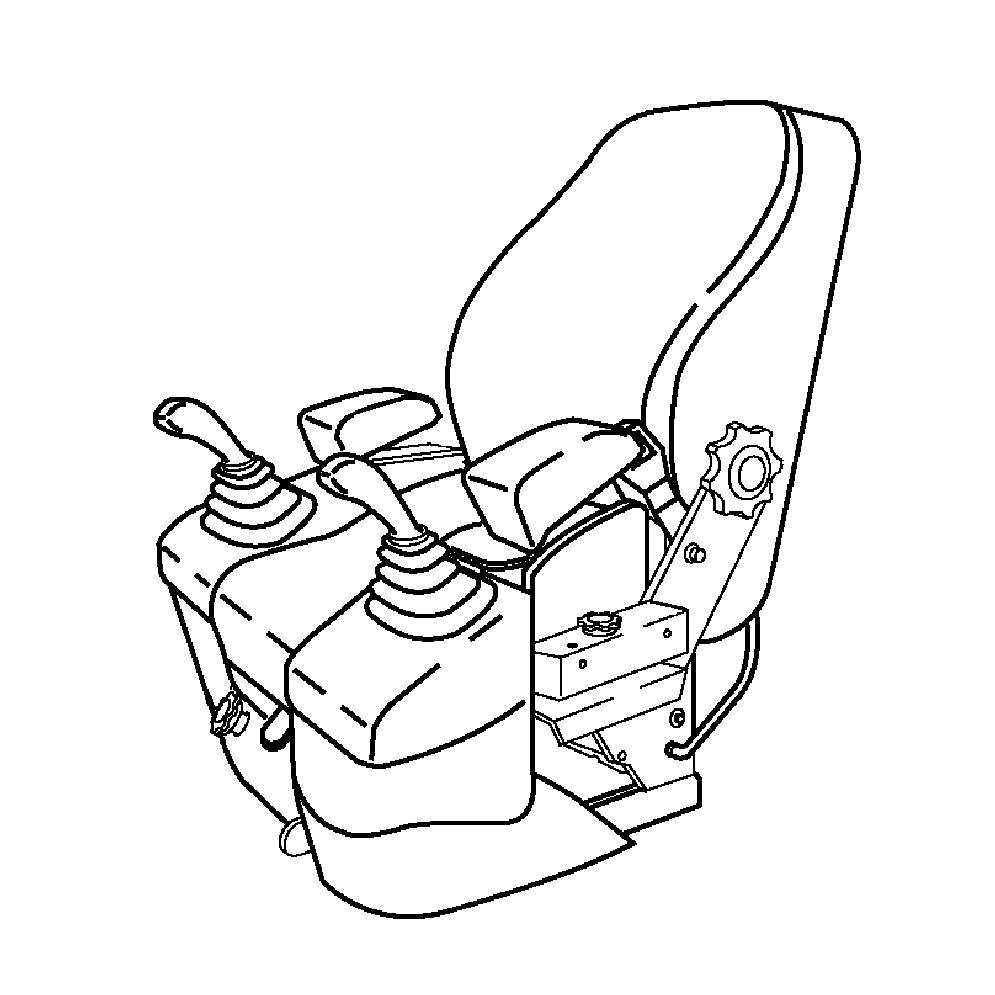

Check Seatbelt and Belt Support

Ensure that seatbelts are securely fastened to the seat frame.

Belt straps must not show indications of wear or damage.

The buckle and retractor must operate smoothly.

OUTJ003,0000A0B -19-06NOV01-1/2

Seat belt and mounting hardware must be inspected for wear or damage before operating the machine. Replace the belt or mounting hardware if worn or damaged.

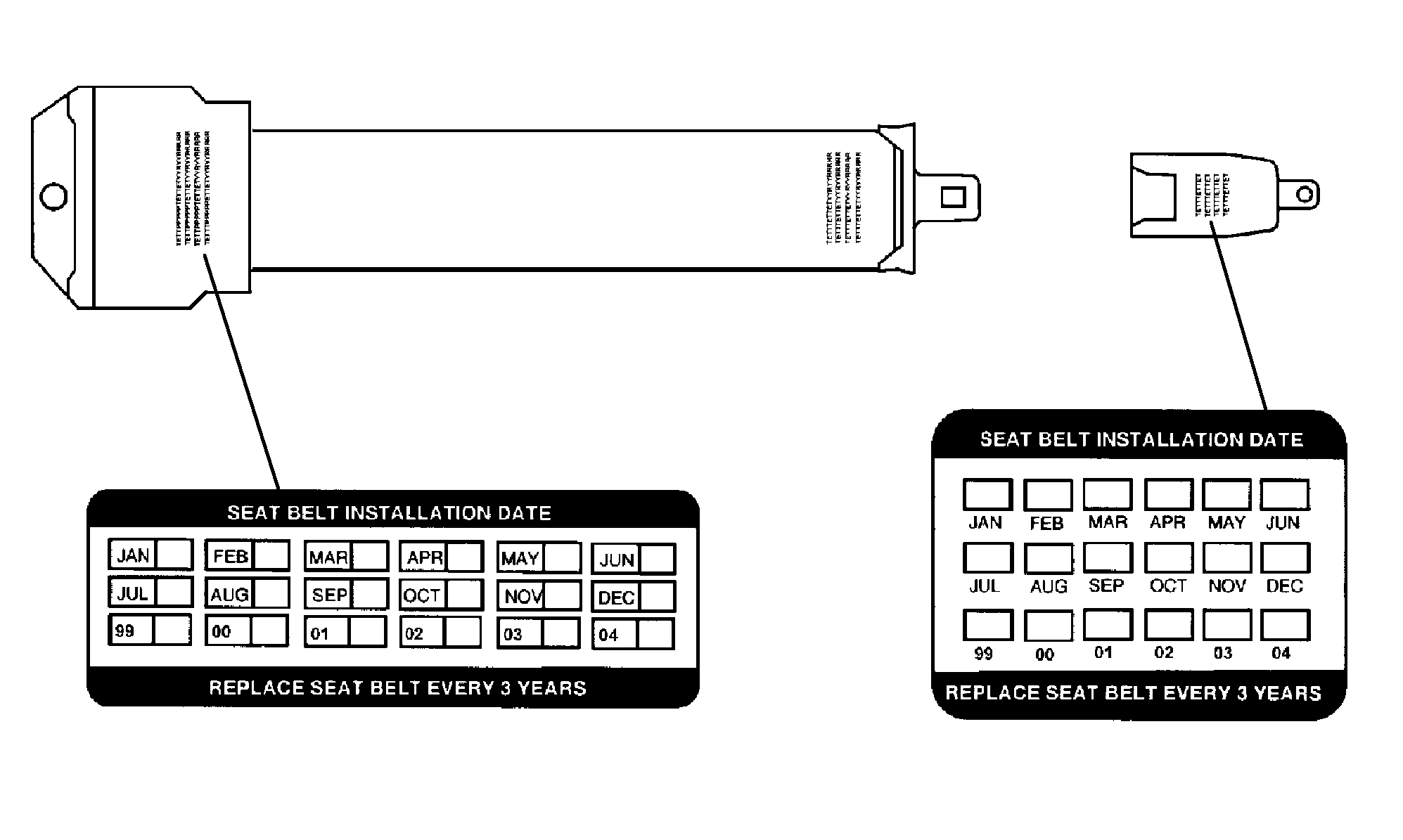

Replace the complete seat belt assembly every three years regardless of appearance. A date label, to determine the age of the belt, is attached to each belt.

OUTJ003,0000A0B -19-06NOV01-2/2
