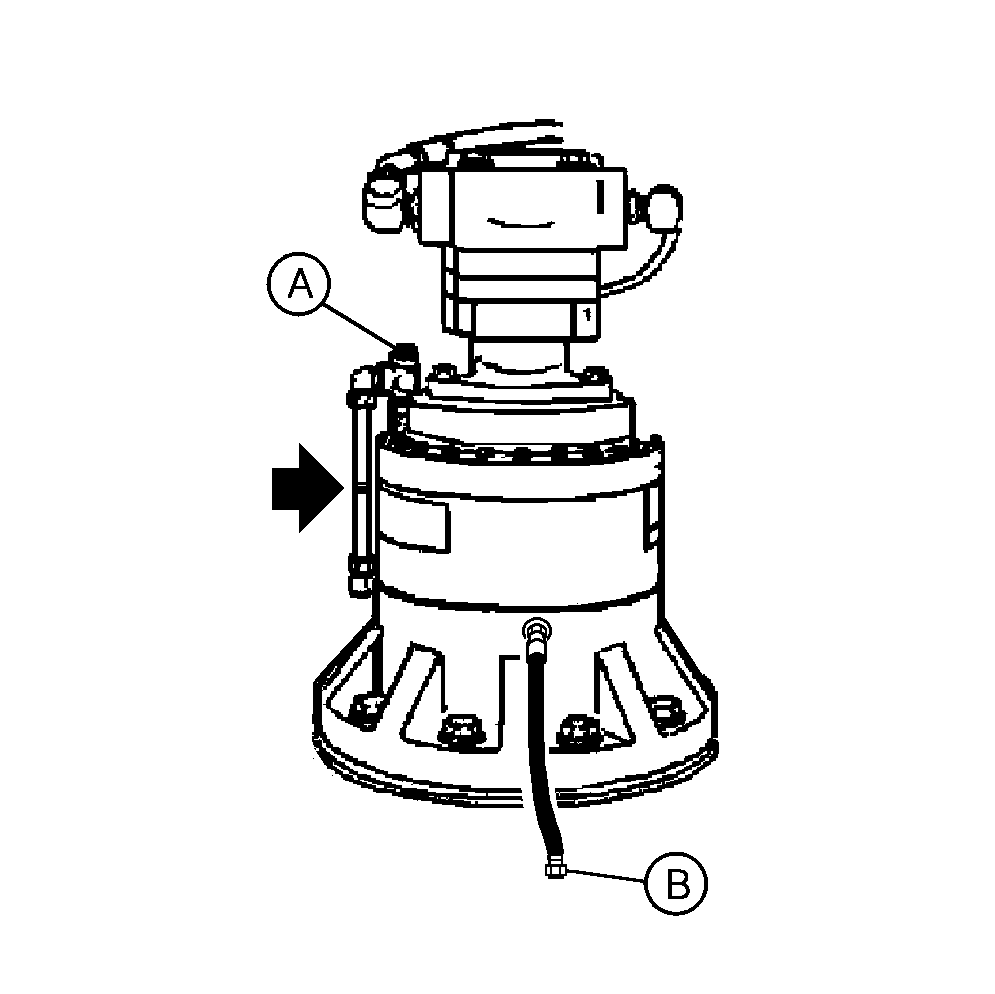

Change Swing Gearbox Oil1. Remove the filler (A) plug to vent the swing gearbox.2. Remove the plug from the swing gearbox drain hose (B). Drain the oil into an appropriate container. NOTE: Dispose of waste properly. 3. Install the drain plug. 4. Refill the gearbox until the oil level is at the full mark on the sight gauge on the side of the gearbox. See Section 3-1 for recommended swing gearbox oil. 5. Install the filler plug.
|
|
OUTJ003,0000A0E -19-06NOV01-1/1 |
