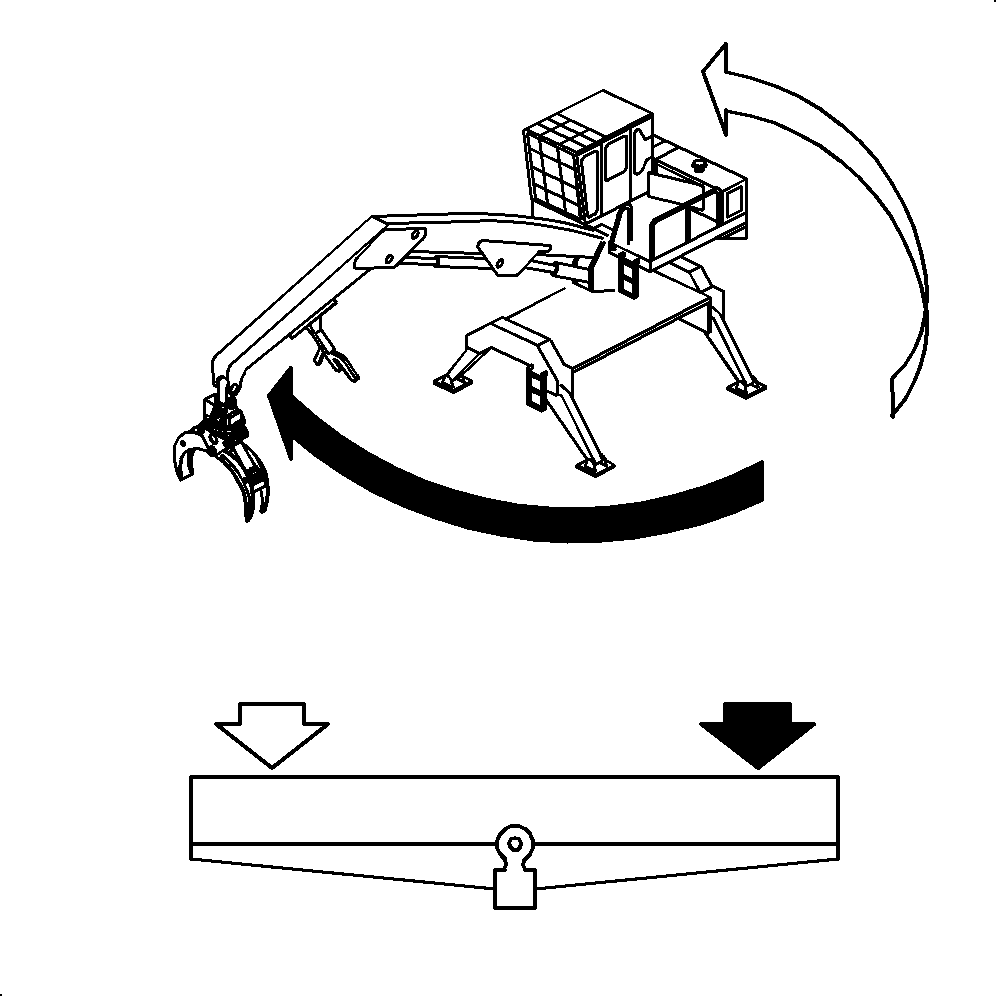

Swing Control PedalA single, center-pivoted, foot-control pedal is used to control rotation of the loader turntable. Press the left side of the pedal to rotate the turntable counterclockwise. Press the right side of the pedal to rotate the turntable clockwise. When released, the pedal returns to center and the turntable stops rotating wherever it is. |
|
OUTJ003,0000A26 -19-08NOV01-1/1 |
