Adjusting Manual Suspension Seat

causym CAUTION: You can lose control of machine and be injured if seat is loose. Be sure seat is properly locked in position before operating the machine.

NOTE: Maximum Weight Capacity 116 kg (300 lb).

1. Lift yellow "Height Adjustment" lever (B). When the lever releases, hold it up while partially lifting the operator's body weight from the seat. When the seat is at the desired height FIRMLY PUSH DOWN on the yellow lever until the seat locks (a click should be heard).

2. Lift yellow "Height Adjustment" lever (B). When the lever releases, partially apply operator body weight to seat until the seat is at the desired height. FIRMLY PUSH DOWN on the yellow lever. Hold lever down until the seat locks into position (a click should be heard).

3. Turn ride adjustment knob (D) until the desired firmness is obtained (CW › soft, CCW › firm).

4. Turn lumbar adjustment knob (E) to desired setting (CW › more support, CCW › less support).

5. Fore-and-aft position, move lever (C) to unlatch position, locate seat to desired location, release lever.

6. Turn knob (A) to desired angle.

7. Loosen armrest position lock (F), position armrest in desired position, tighten lock.

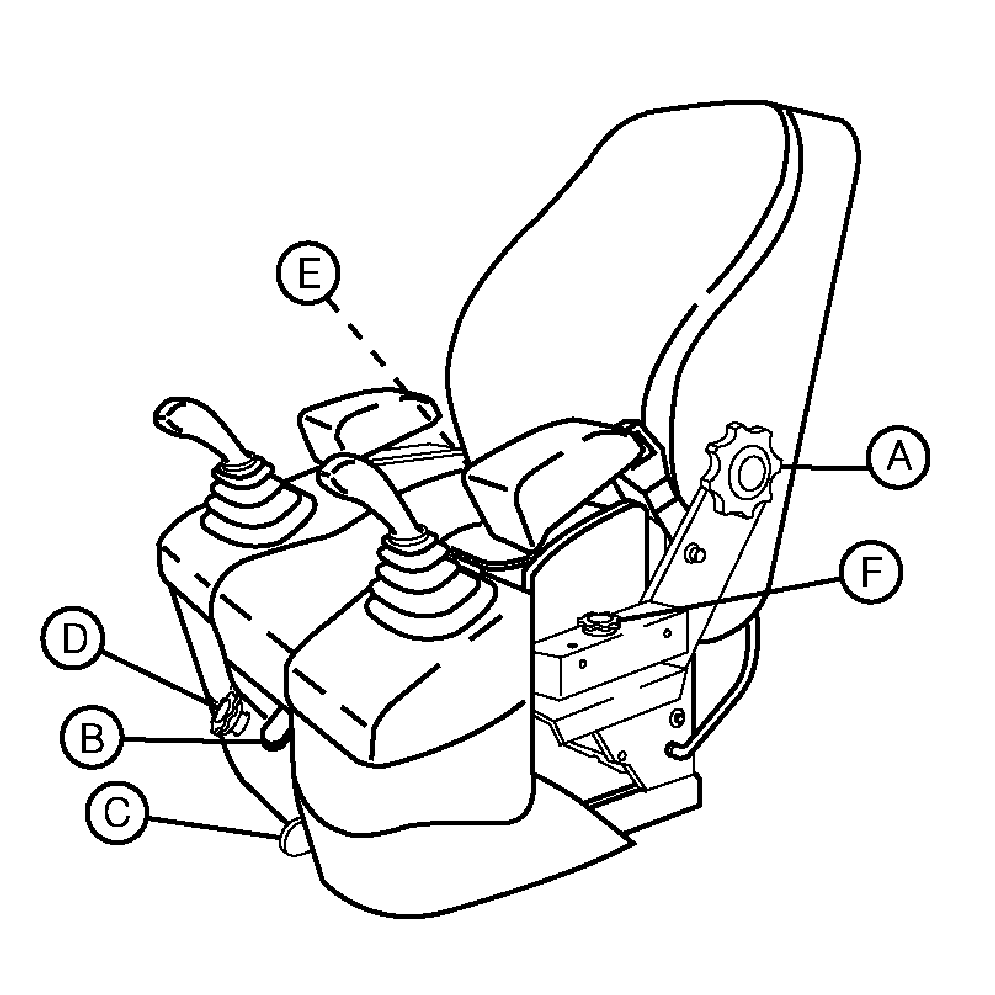

T148023


A-Back Angle Adjustment Knob
B-Height Adjustment Lever (Yellow)
C-Fore/Aft Slide Lever (Black)
D-Ride Adjustment Knob
E-Lumbar Adjustment Knob
F-Armrest Position Lock

OUTJ003,0000A2A -19-08NOV01-1/2

causym CAUTION: Seat can move rapidly and may cause an injury. DO NOT put your full weight on seat while adjusting height.

To raise seat, stand over seat, grasp at bottom edge of seat cushion, and slowly lift; each click is a position. To lower seat, lift as high as possible and release. Seat will return to lowest position.
