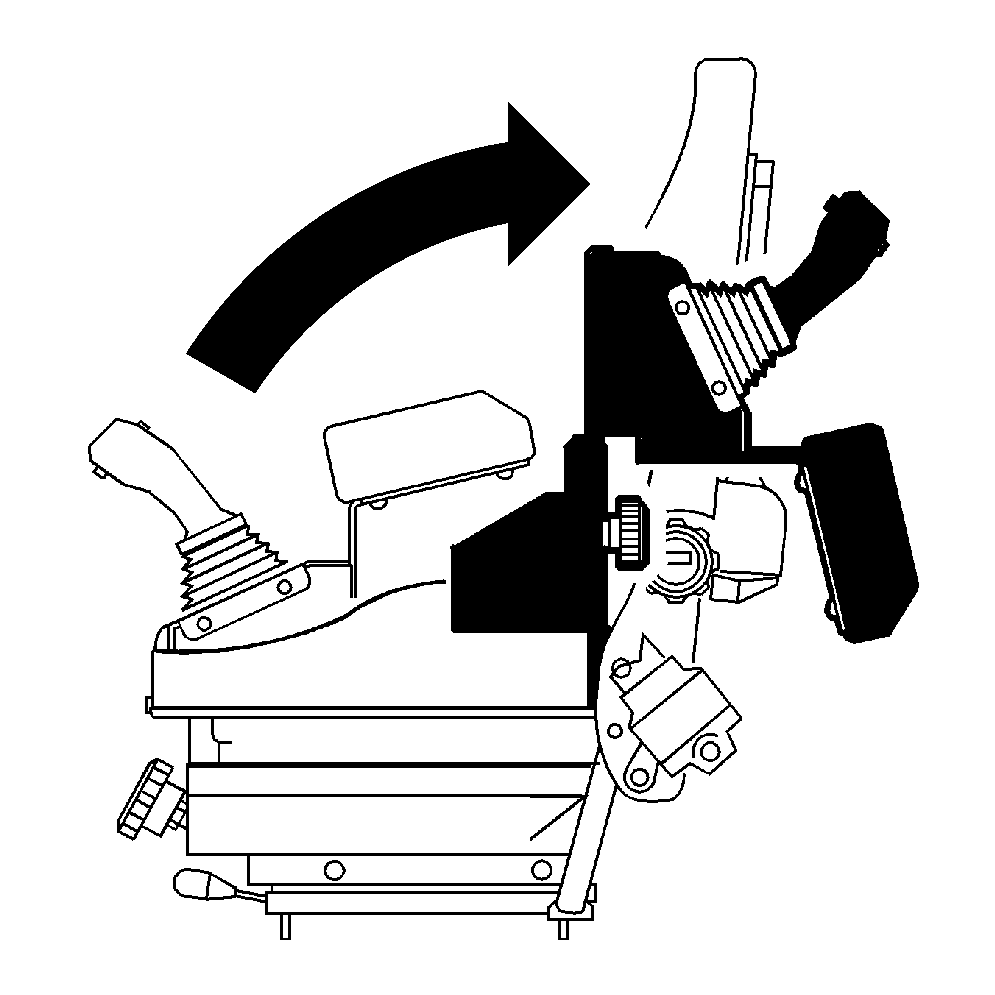

Pilot Shutoff Armrest Switch

The operator's seat armrest must be flipped down in order to enable the hydraulic functions. When the armrest is raised, the pilot control pressure is dumped to tank, disabling the hydraulic functions.

OUTJ003,0000A54 -19-09NOV01-1/1
