Swing Gearbox Oil

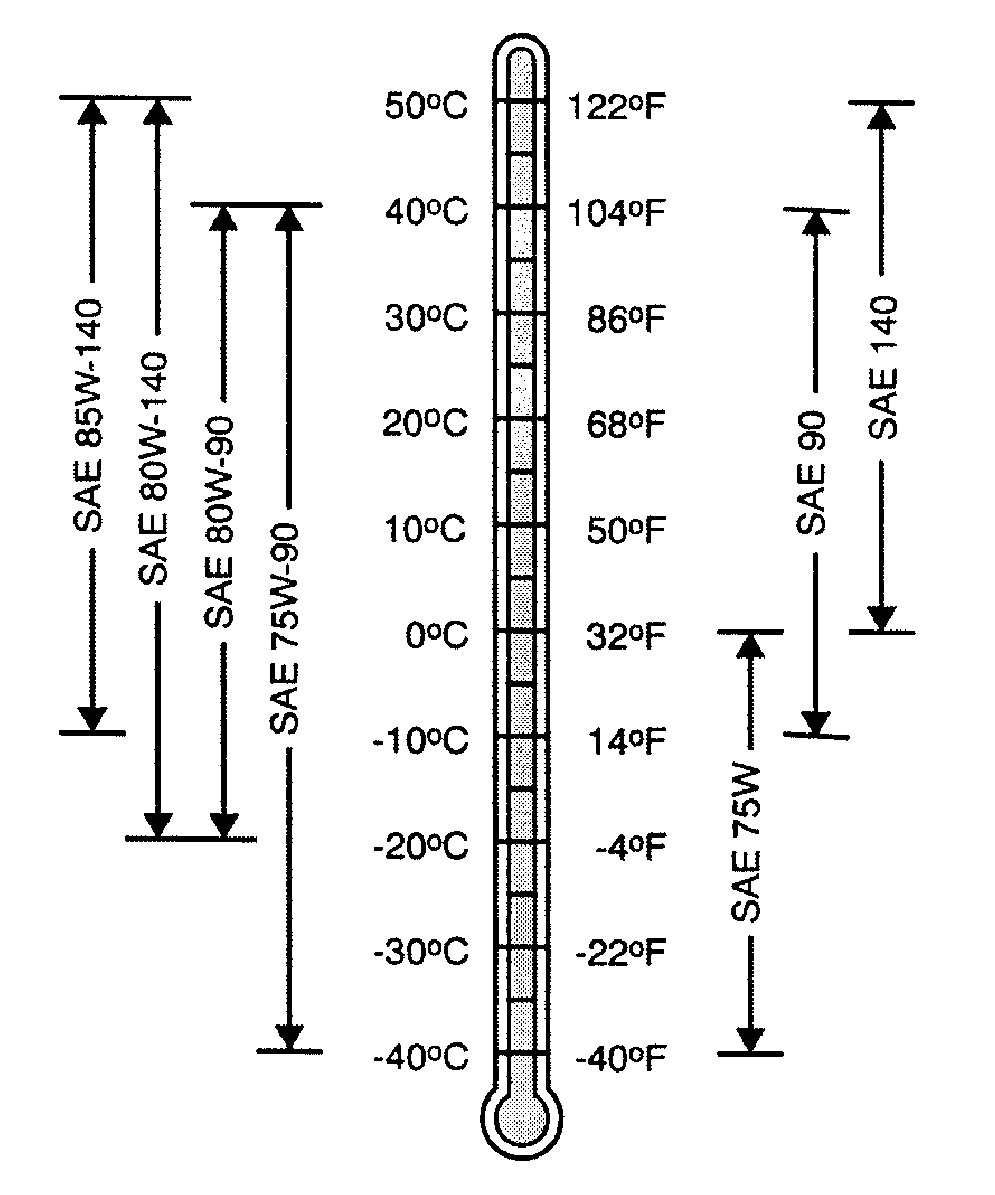

Use oil viscosity based on the expected air temperature range during the period between oil changes.

The following oils are preferred:

  • John Deere GL-5 GEAR LUBRICANT
  • John Deere EXTREME-GARD

Other oils may be used if they meet the following:

  • API Service Classification GL-5

IMPORTANT: The oil must be changed after the first 100 hours of operation. Subsequent oil changes are as specified in the periodic maintenence table.

T147343

OUTJ003,0000A6B -19-11NOV01-1/1
