Hydraulic System Oil

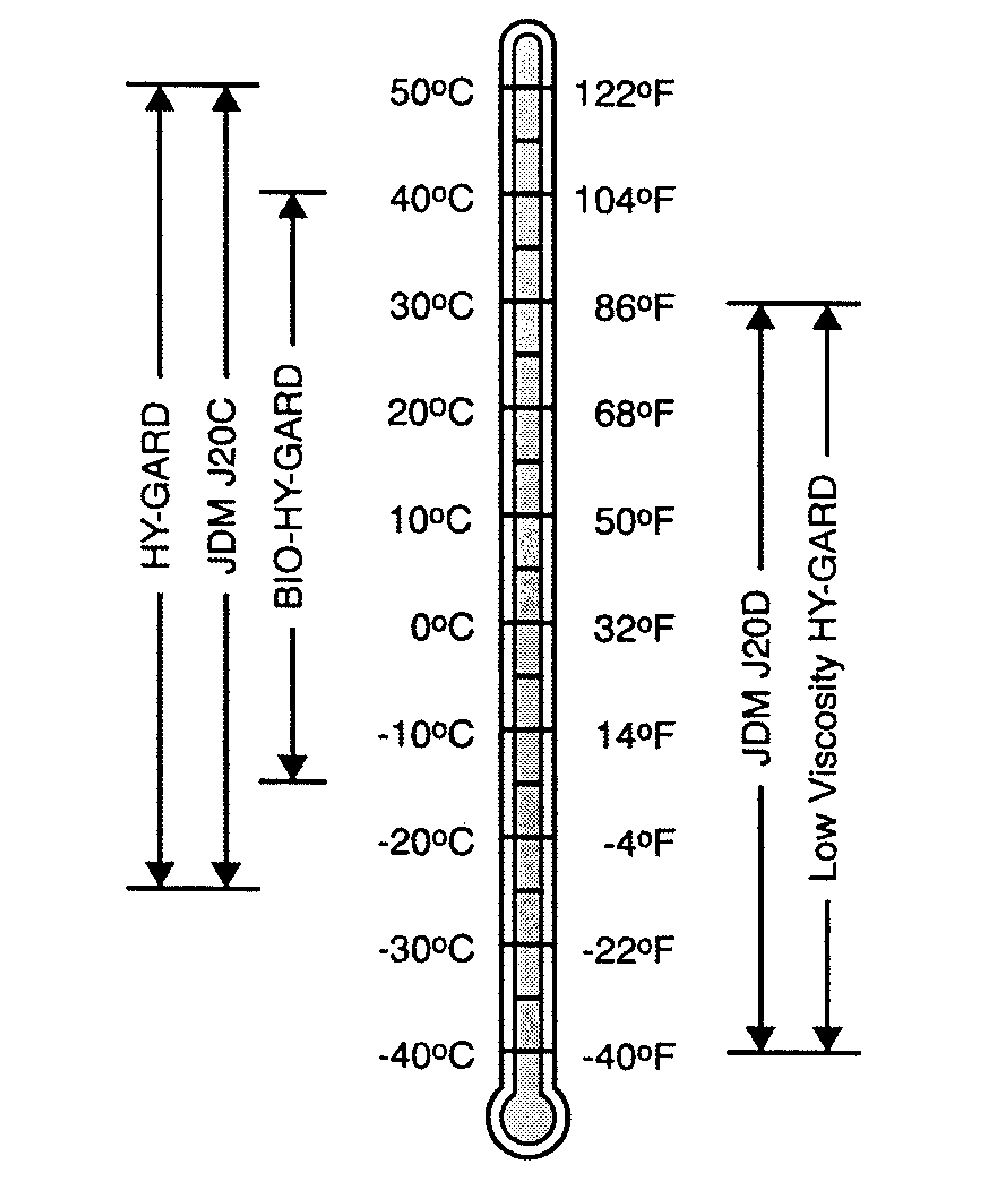

Use oil viscosity based on the expected air temperature range during the period between oil changes.

The following oils are preferred:

• John Deere HY-GARD ®
• John Deere Low Viscosity HY-GARD ®

Other oils may be used if they meet one of the following:

• John Deere Standard JDM J20C
• John Deere Standard JDM J20D

Use John Deere BIO-HY-GARD ™ oil when a biodegradable fluid is required.

NOTE: BIO-HY-GARD meets or exceeds the minimum biodegradability of 80% within 21 days according to CED-L-33-T-82 test method. BIO-HY-GARD should not be mixed with mineral oils, because this reduces the biodegradability and makes proper oil recycling impossible.

HY-GARD is a trademark of Deere & Company
BIO-HY-GARD is a trademark of Deere & Company

OUTJ003,0000A6C -19-11NOV01-1/1
