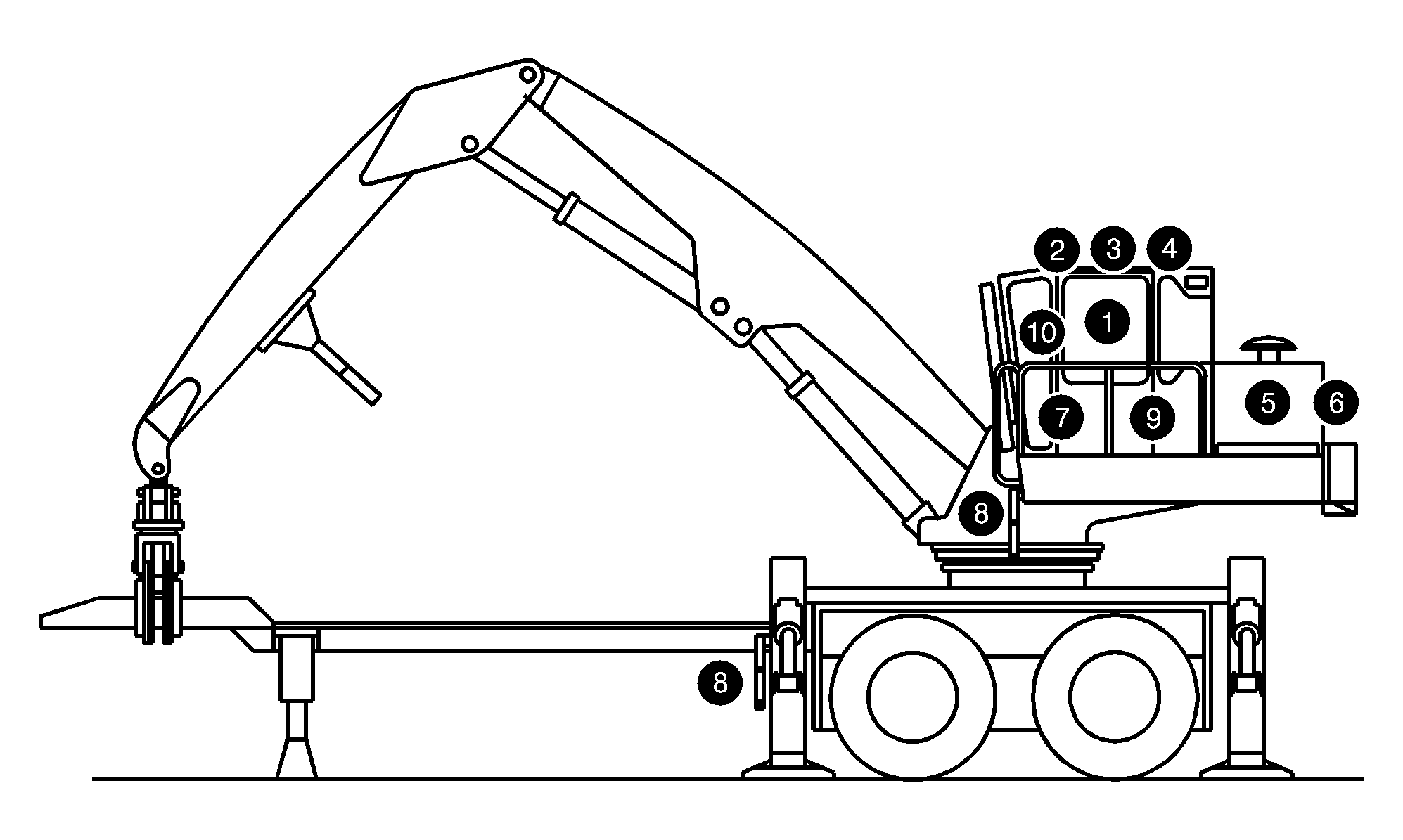

535/530B Log Loader Safety Features

T150221

Please remember, the Operator is the key to reducing accidents.

1. Secondary Exit The right window provides a large exit path, if the cab door is blocked in an emergency.
2. FOPS Integrated guarding and falling object protective structures fully enclose and protect the operator. They also reduce vandalism and provide weather protection.
3. Operator Manual Holder A manual holder in the cab keeps manual on machine clean and dry.
4. Seat Belt Retractor Helps keep seat belt clean and convenient to use.

5. Engine Fan Guard A secondary fan guard inside the engine compartment helps prevent contact with engine fan blades.
6. Bypass Start Protection Shielding over the starter solenoid helps prevent dangerous bypass starting.
7. Handholds Large conveniently placed handholds make it easier to enter or exit the operator's station.
8. Steps Wide slip resistant steps make entry and exit easier and also provides a place to clean shoes.
9. Pilot Control Shut-off Switches on the armrest and cab door disable the hydraulics when the operator leaves the cab.
10. Fire Extinguisher A fire extinguisher is provided in the cab as standard equipment.

OUTJ003,0000BC8 -19-20JAN02-1/1
