Gauges

There are two gauges on the instrument panel.

The upper gauge includes the following indicators:

  • Tachometer
  • Hourmeter

The lower gauge includes the following indicators:

  • Engine Coolant Temperature
  • Voltmeter
  • Engine Oil Pressure
  • Fuel Level

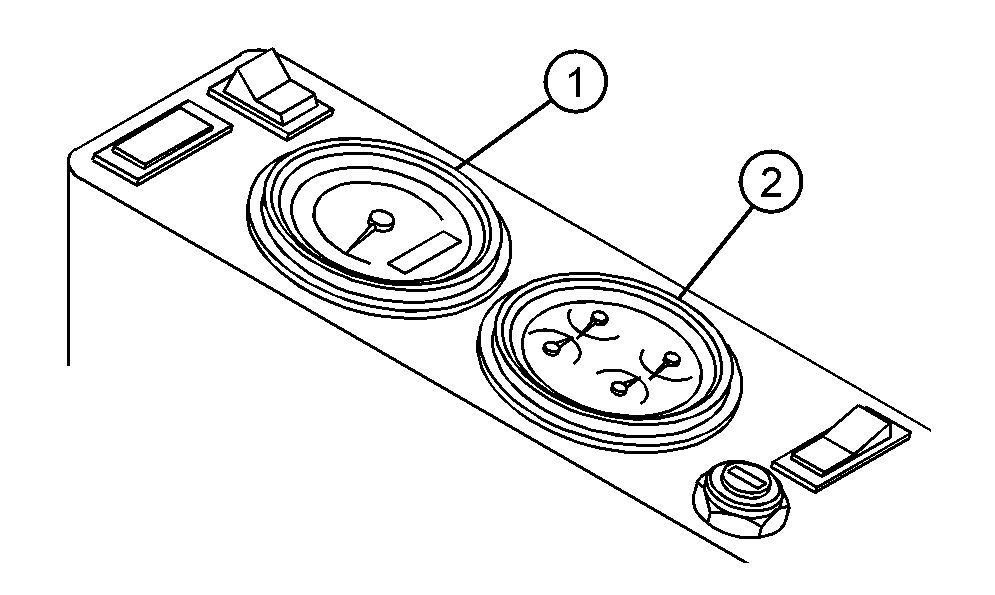

1-Tachometer,
Hourmeter
2-Engine Coolant Temperature
Voltmeter
Engine Oil Pressure
Fuel Level

T150062

OUTJ003,0000BCD -19-20JAN02-1/1
