Battery Disconnect Switch

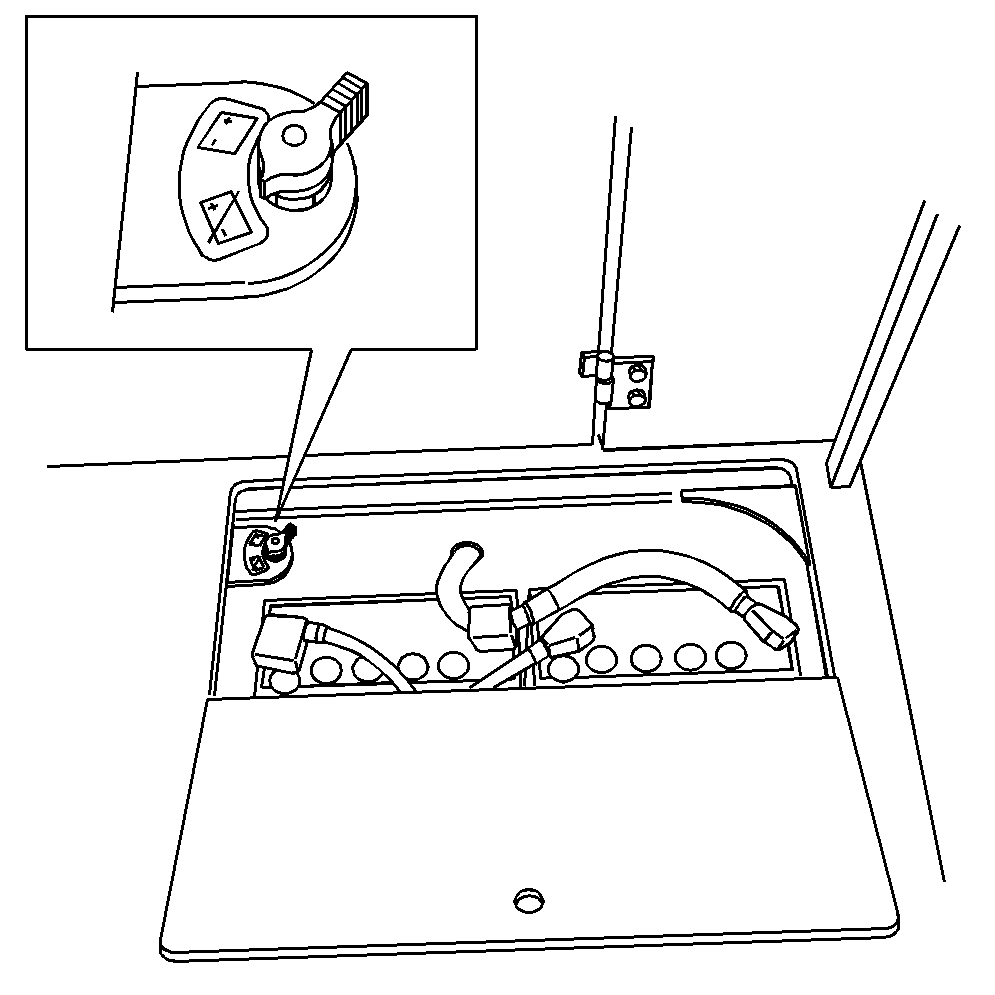

The Battery Disconnect switch is located under the battery box cover in front of the engine enclosure.

When the Battery Disconnect Switch is in the OFF position, the batteries are isolated from the electrical system.

T150224

OUTJ003,0000BCE -19-20JAN02-1/1
