Ignition Switch

The Ignition Switch is a four position key operated switch located on the dashboard.

1. ACC - Lights and accessories available.
2. OFF - Electrical system is disconnected.
3. IGN - All electrical systems enabled. The switch is in this position when the engine is running.
4. START - Turn the ignition key to this position to start the engine. The switch will return to the IGN position when released.

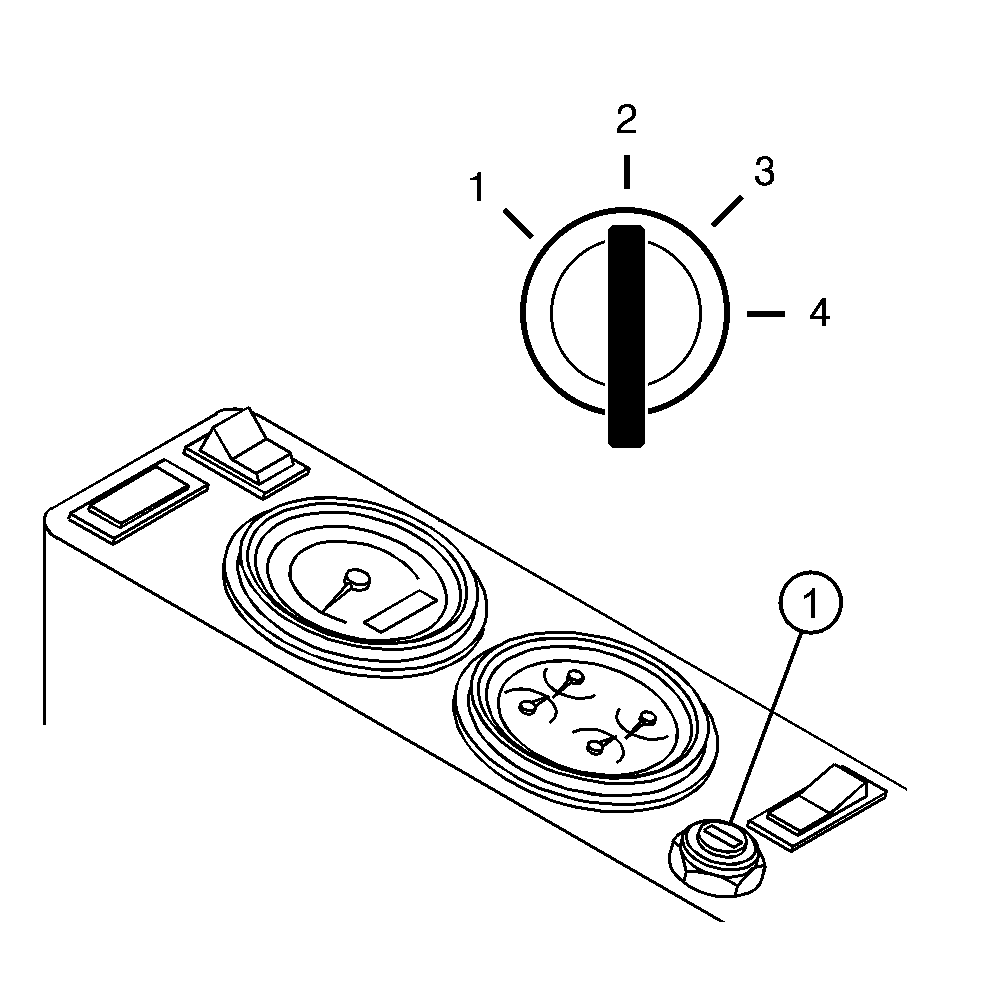

1-Ignition Switch

T150063

OUTJ003,0000BCF -19-20JAN02-1/2

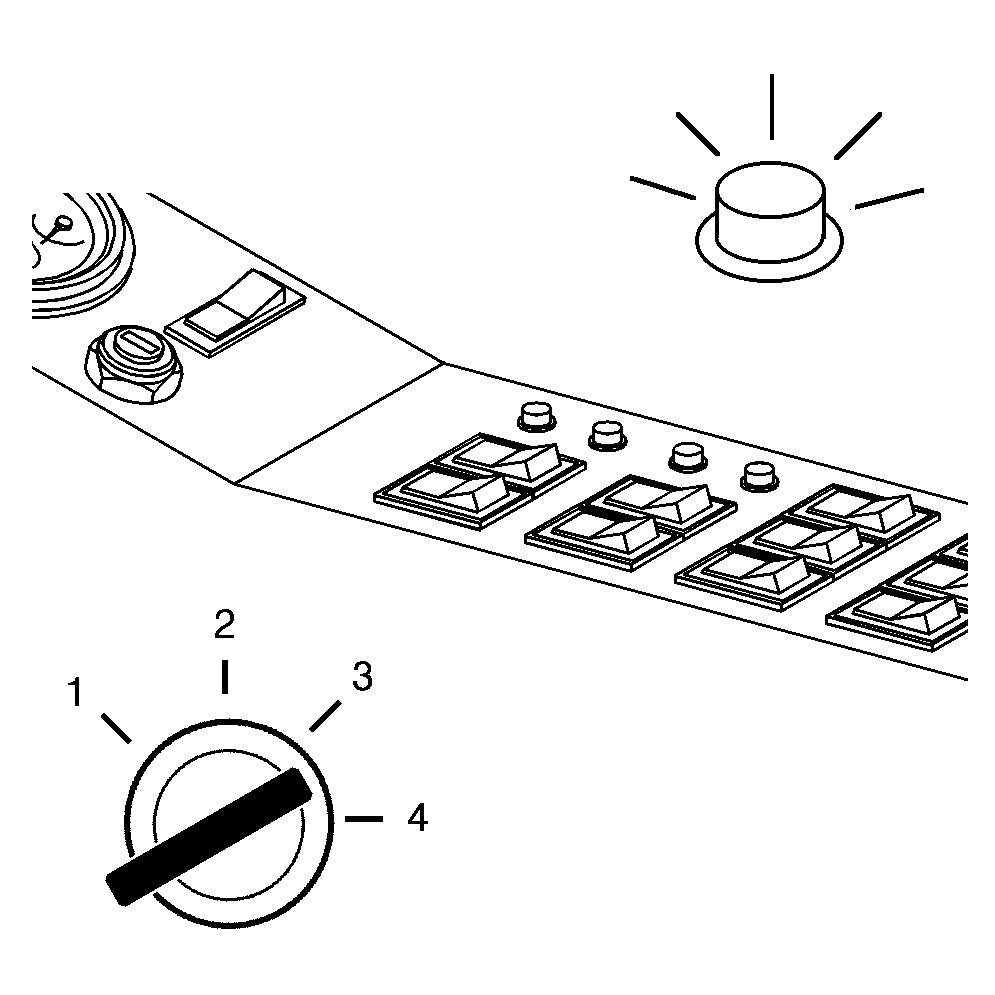

NOTE: When the key is held between position 3 (IGN) and position 4 (START), the four indicator lights on the instrument panel will be lit as a bulb check. There is no detent between position 3 and 4.

T150979

OUTJ003,0000BCF -19-20JAN02-2/2
