Throttle Switch

The Throttle Switch is a dual-action, spring-return rocker switch used for adjustment and maintenance of engine speed during loader operation.

Press right side (rabbit symbol) to increase engine speed.

Press left side (turtle symbol) to decrease engine speed.

Release the switch when the desired engine speed is attained. The switch will return to center.

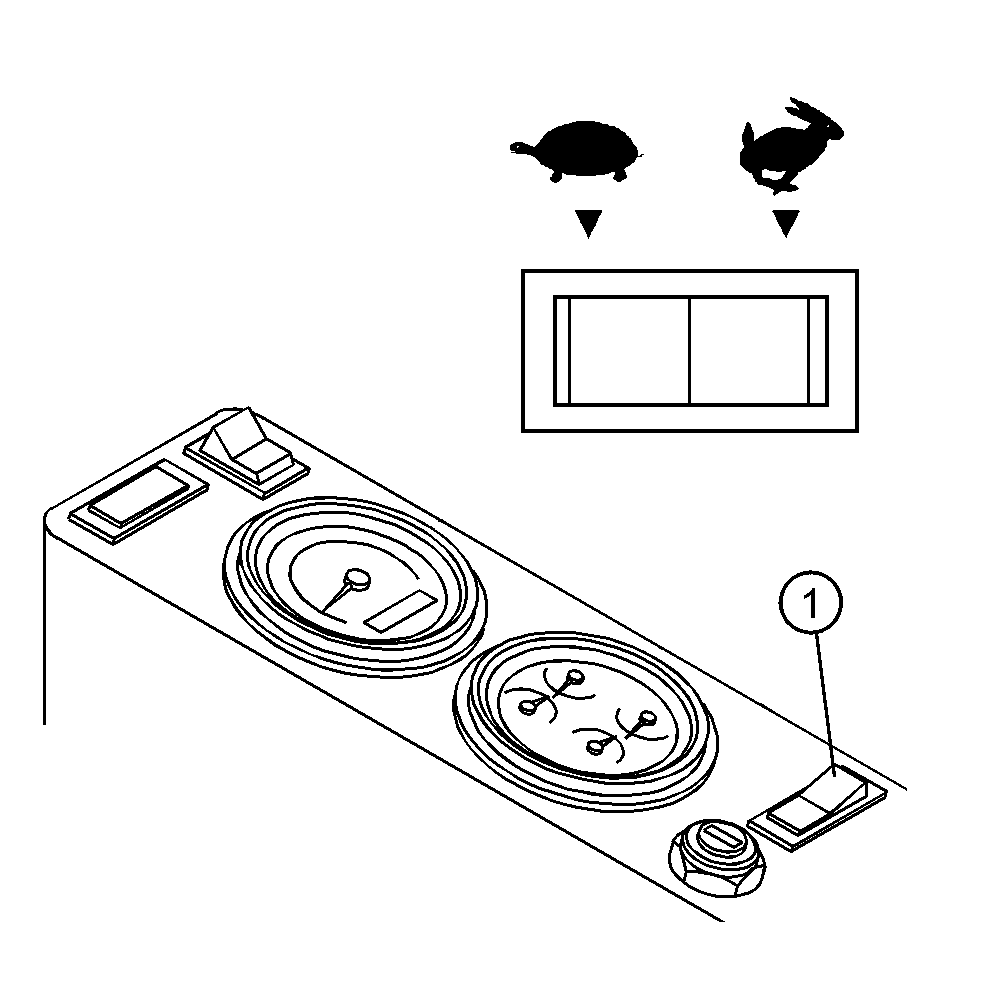

1-Throttle Switch

OUTJ003,0000BD0 -19-20JAN02-1/1
