Switches

Work Lights Switch - A single-action rocker switch used to turn the work lights on and off.

Guide Arms Lockout Switch - A dual-action rocker switch used to lock out or enable guide arms on optional Delimber attachment.

Windshield Washer Switch - Single-action, spring-return switch used momentarily to activate the windshield washer.

Windshield Wiper Switch -Three-position switch: O = off; 1 = slow; 2 = fast

Windshield Wiper Switch -Three-position switch: O = off; 1 = slow; 2 = fast

1-Work Lights Switch
2-Guide Arms Lockout Switch
3-Windshield Washer Switch
4-Windshield Wiper Switch

OUTJ003,0000BD2 -19-20JAN02-1/3

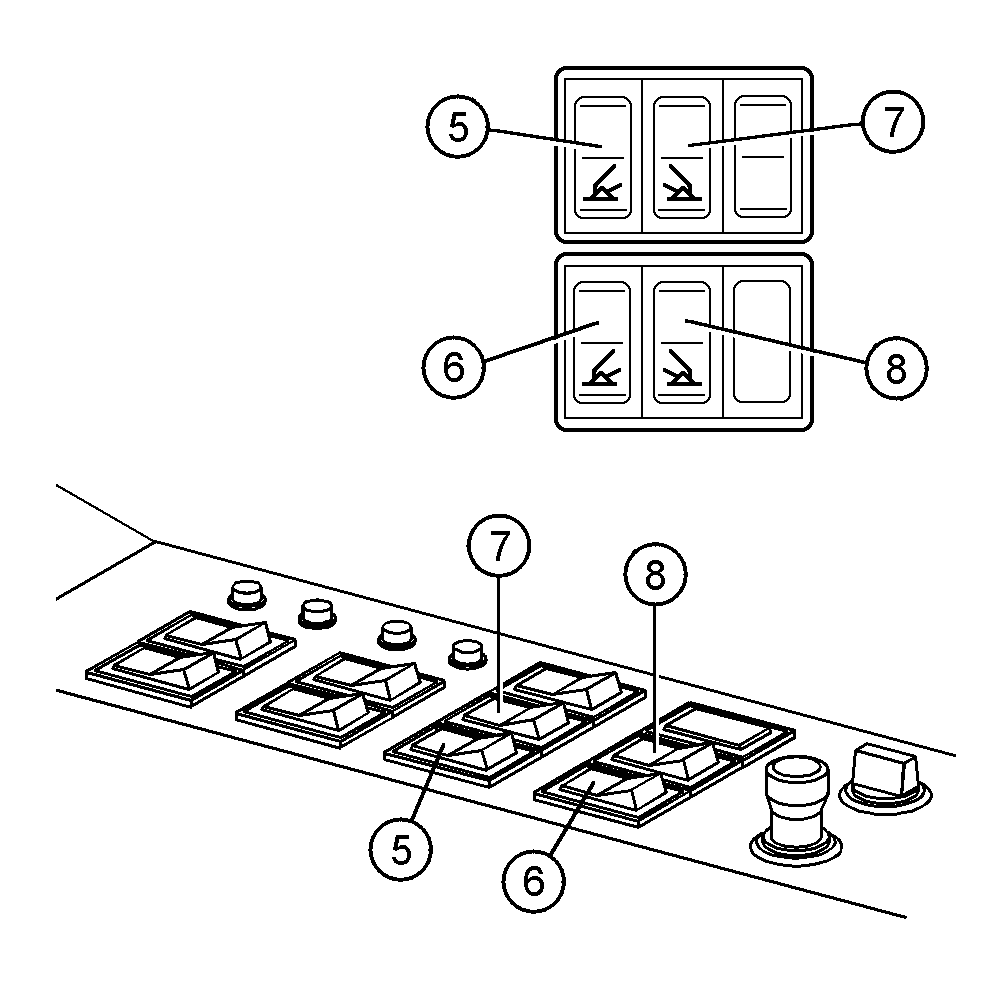

Left Front Stabilizer Switch - A dual-action rocker switch pressed momentarily to raise or lower the left front stabilizer.

Left Rear Stabilizer Switch - A dual-action rocker switch pressed momentarily to raise or lower the left rear stabilizer.

Right Front Stabilizer Switch - A dual-action rocker switch pressed momentarily to raise or lower the right front stabilizer.

Right Rear Stabilizer Switch - A dual-action rocker switch pressed momentarily to raise or lower the right rear stabilizer.

5-Left Front Stabilizer Switch
6-Left Rear Stabilizer Switch
7-Right Front Stabilizer Switch
8-Right Rear Stabilizer Switch

OUTJ003,0000BD2 -19-20JAN02-2/3

Alarm Shutoff Switch - If any indicator light is lit, an audible alarm will also sound. Press the Alarm Shutoff Switch on the console to cancel the audible alarm.

9-Alarm Shutoff

OUTJ003,0000BD2 -19-20JAN02-3/3
