AC/Heater Controls - Option

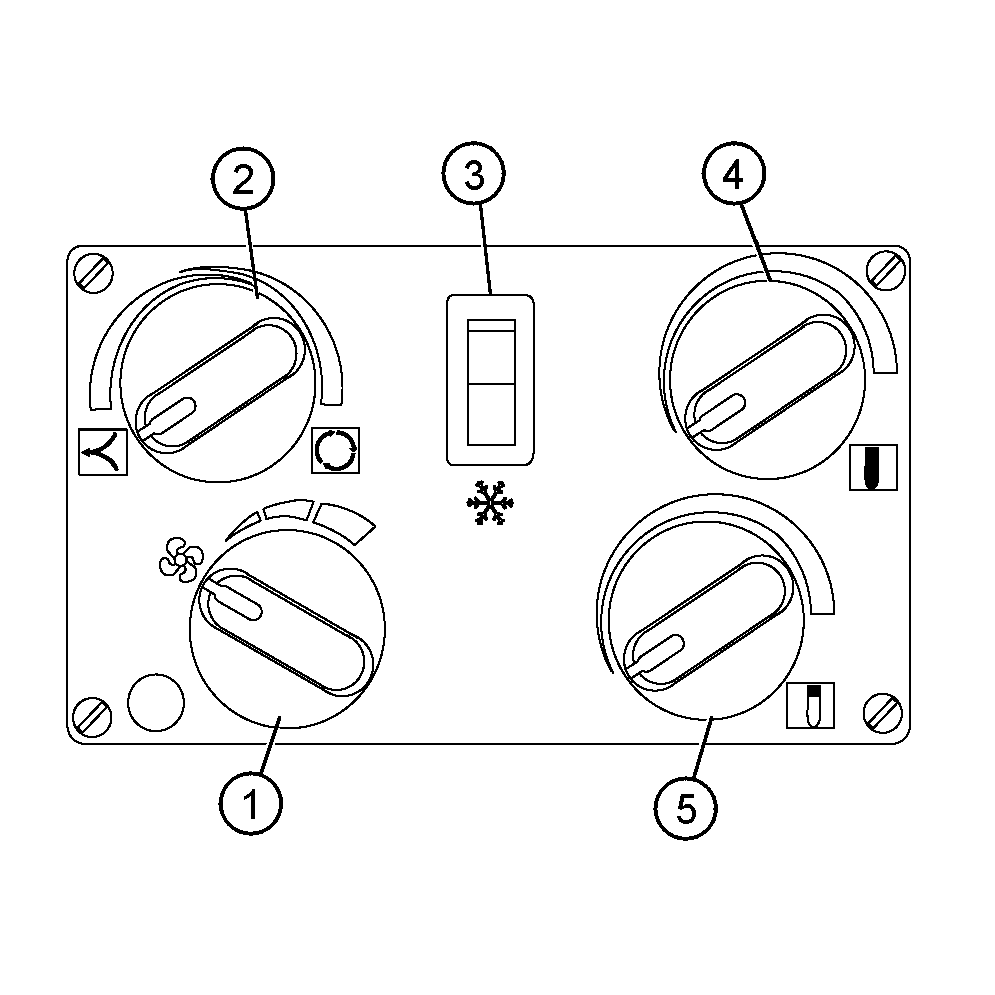

If installed, the AC/Heater Controls are located on the instrument panel.

1. Fan Speed Switch
Clockwise from OFF to LOW, MED or HIGH.
2. Cab Air Recirculation Control
Clockwise to get fresh air from outside.
Counterclockwise to recirculate cab air.
3. Air Conditioner ON/OFF Switch
Toggle the switch to turn the air conditioner on or off.
4. Heater Temperature Control
Clockwise to get warmer air.
Counterclockwise to get cooler air.
5. Air Conditioner Temperature Control
Clockwise to get cooler air.
Counterclockwise to get warmer air.

NOTE: The fan will operate only when the ignition switch is at ACC or RUN.

The cab heater will operate only when the engine is running at normal operating temperature in order to provide hot engine coolant for the heater coil.

The air condition will operate only when the engine is running in order to operate the AC compressor.
