Fuses and Circuit Breakers

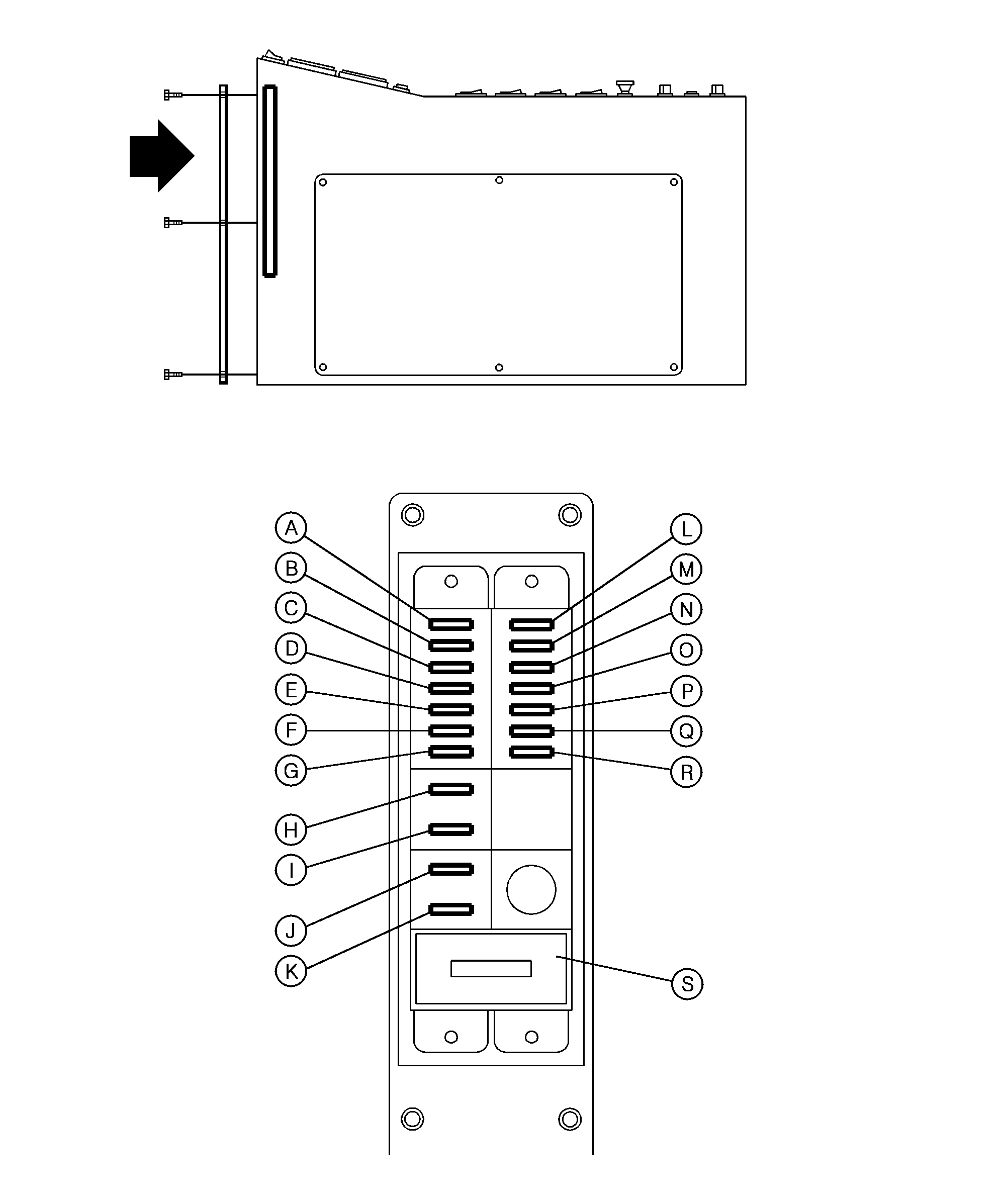

T150393

OUTJ003,0000BD7 -19-20JAN02-1/2



A-Throttle Fuse (10 Amp)
B-Cab Accessories Fuse (15 Amp)
C-Wiper/Washer Fuse (15 Amp)
D-CB Fuse (10 Amp)
E-Radio Fuse (15 Amp)


F-Auxiliary Power Fuse (15 Amp)
G-Fuel Shutoff Solenoid Hold-in Fuse (10 Amp)
H-Standard Cab Lights Circuit Breaker (15 Amp)
I-Optional Cab Lights Circuit Breaker (25 Amp)


J-Optional Lights Circuit Breaker (25 Amp)
K-Empty
L-Gauges Fuse (15 Amp)
M-Joystick Fuse (15 Amp)
N-Empty


O-Radio Memory Fuse (5 Amp)
P-Keyswitch Fuse (15 Amp)
Q-Horn Fuse (10 Amp)
R-A/C Fuse (25 Amp)
S-Storage Drawer

The circuit breakers are located inside the console under the Instrument Panel.

To access the circuit breakers, remove the front panel from the Instrument Panel console.

A storage drawer is provided on the fuse panel.
