Stabilizers Raise/Lower

NOTE: Although the stabilizer switches are located in a pattern corresponding to the stabilizers, the terms front, rear, left, and right are correct only when the loader is turned so that the operator is facing forward.

The operator is facing forward when the loader booms are over the attachment fittings on the front of the lower frame.

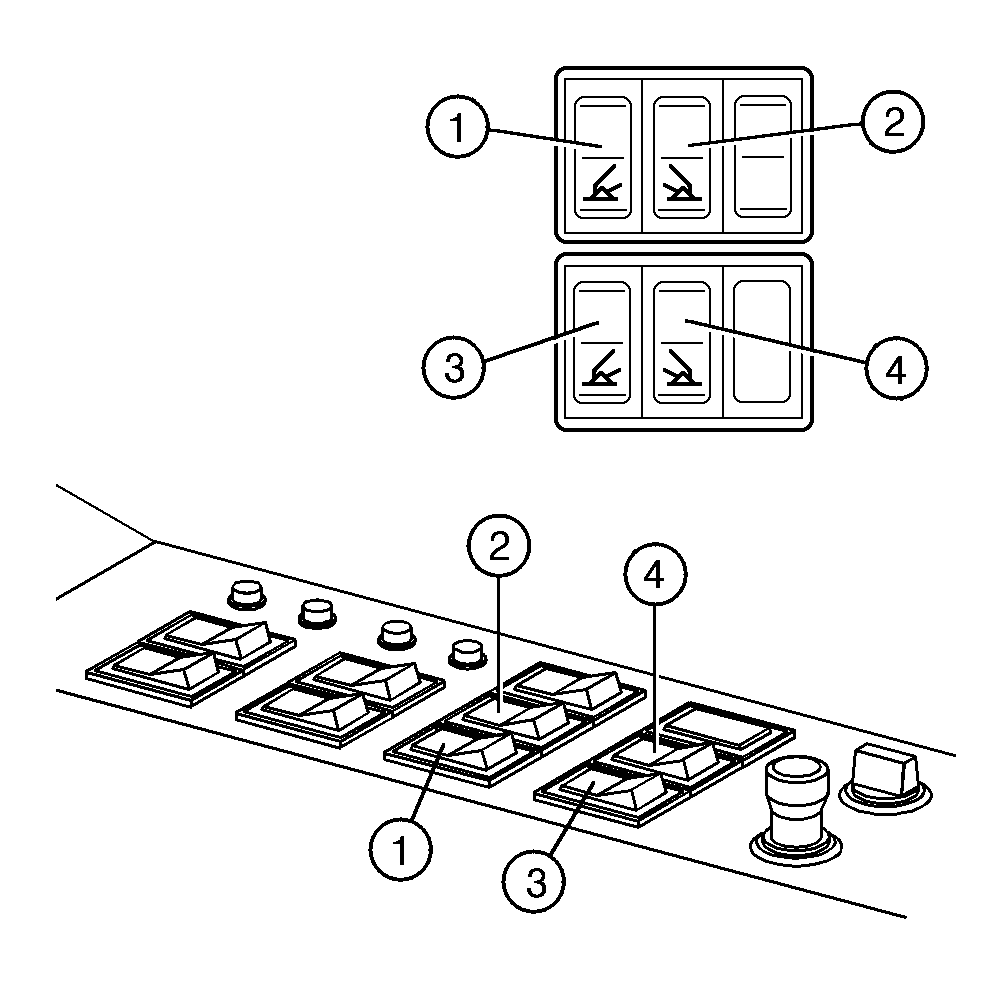

Press the switches on the Instrument Panel to raise or lower each stabilizer.

1-Left Front Stabilizer
2-Right Front Stabilizer
3-Left Rear Stabilizer
4-Right Rear Stabilizer
