Transporting the Log Loader

causym CAUTION: Using chains or suitable straps, secure the booms, heel and grapple to a support cradle or grapple carrier as applicable during transport.

causym CAUTION: Careless or inappropriate preparation of the loader for transport can result in accidents causing personal injury and equipment damage.

causym CAUTION: Do not operate or transport this equipment on any grade greater than 20%.

NOTE: If the boom-mounted heel prevents the boom from being placed in a stowed position, the heel MUST be removed while the loader is in transit.

Relocation MUST ALWAYS be performed in compliance with all local, state, regional, and national regulations.

Regardless if the loader is truck or trailer mounted, the overall height of the vehicle MUST NOT exceed local or state maximum height limitations.

OUTJ003,0000BE1 -19-20JAN02-1/2

1. Start the engine, rotate the turntable as necessary, and lower the booms and grapple to rest on the vehicle support cradle and grapple carrier.

2. Raise the stabilizers to the fully retracted position and shutdown the engine.

3. Using chains or suitable straps, secure the booms, heel, and grapple to support cradle and grapple carrier as applicable.

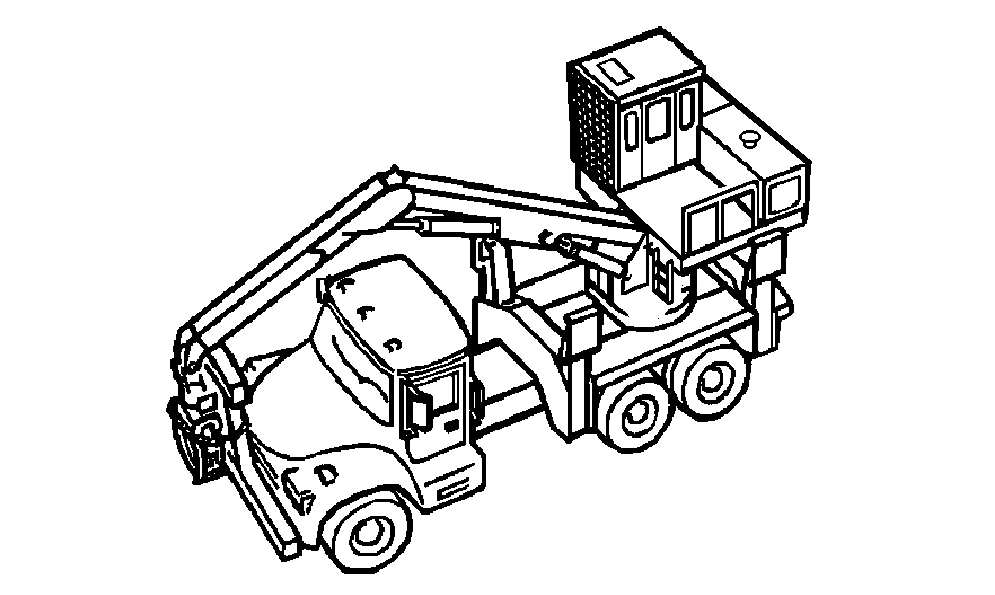

T150231

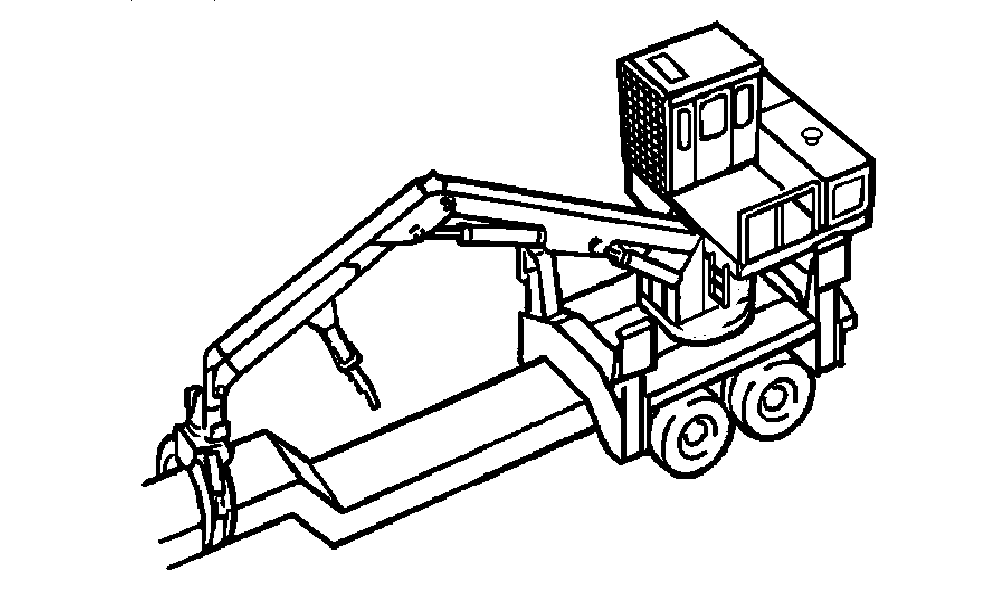

T150232

OUTJ003,0000BE1 -19-20JAN02-2/2
