Check Engine Air Filters and Ducting

1. Squeeze the vacuator valve lips (A) to remove accumulated dirt from the air filter housing.

2. Inspect pipe and hose connections between the air filter housing and the engine, verifying all hardware integrity.

3. Inspect the filter elements (B) and replace them if they are damaged or severely soiled.

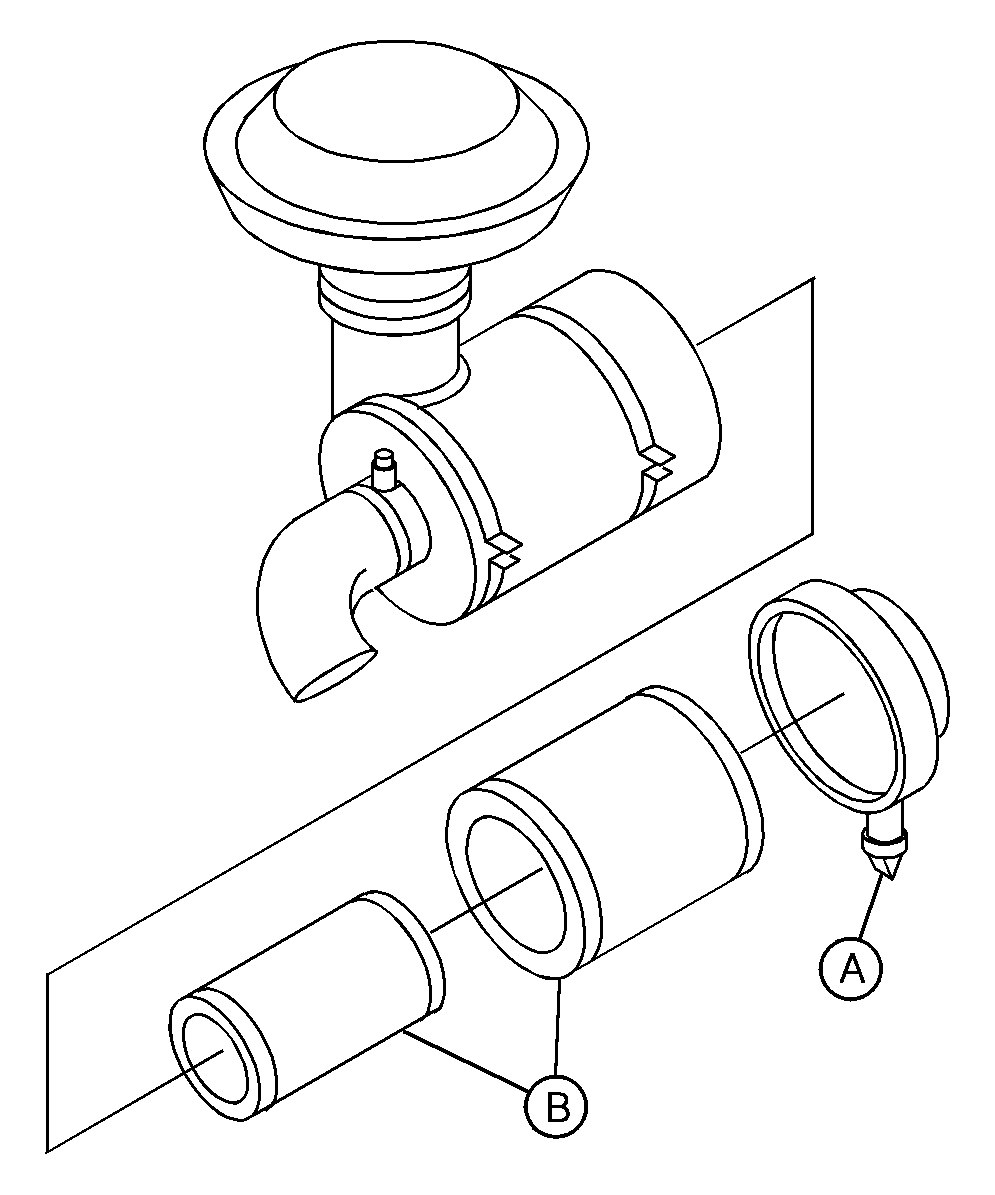

A-Vacuator Valve
B-Air Filter Elements

T150235

OUTJ003,0000BE6 -19-21JAN02-1/1
