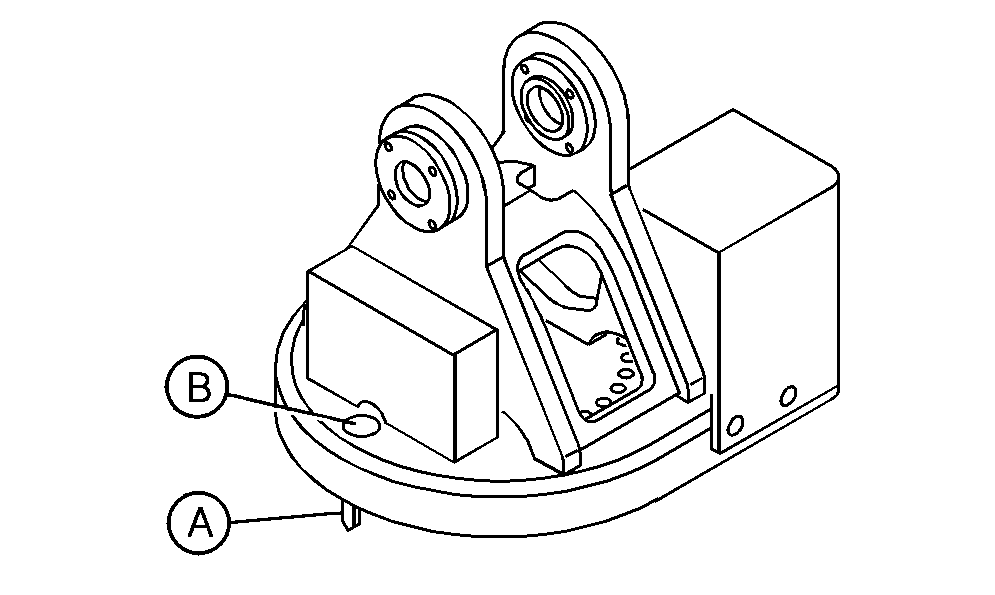

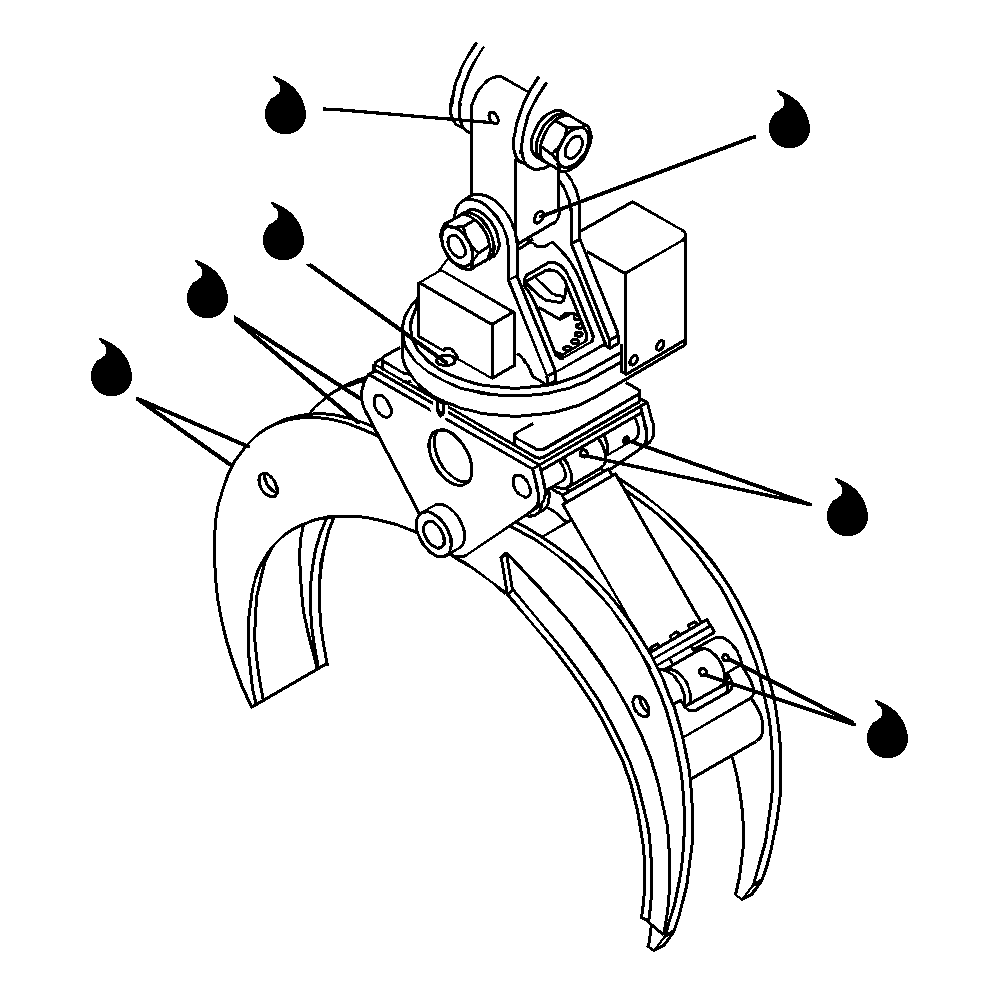

Lubricate Grapple1. Grease all fittings on the grapple swivel, head, and cylinder pins.Use extreme pressure EP2 grease. See Section 3-1 for recommended grease. 2. Line up the position pointers (A) on the grapple head. Apply three shots of a pressure gun in each of the two fittings through the opening (B). 3. Spray-grease the ring gear teeth. Use Shell open gear lubricant (spray can) or equivalent.
|
|
OUTJ003,0000BEC -19-21JAN02-1/1 |
