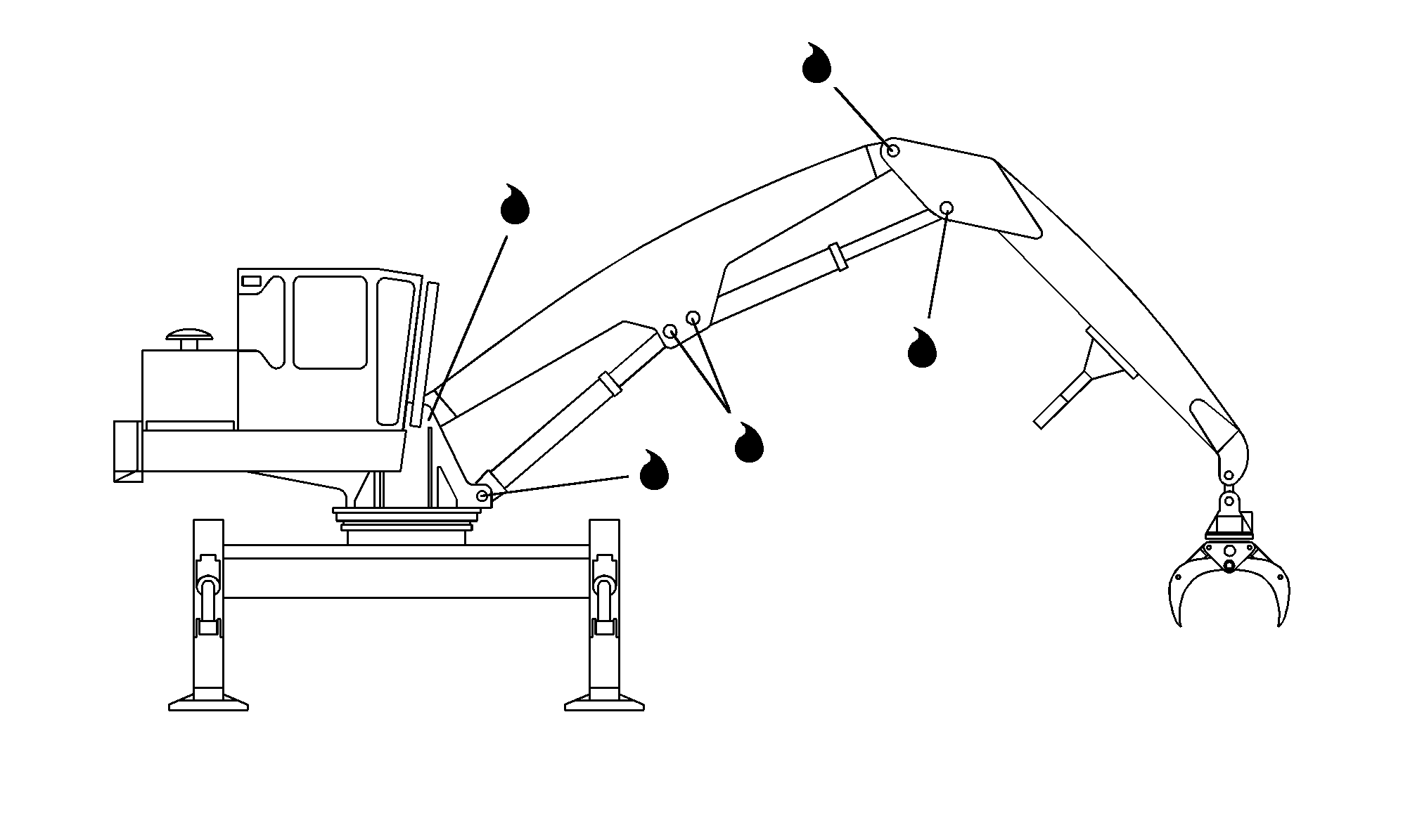

CAUTION: Before lubricating, the booms must be fully extended and the grapple head must be supported. DO NOT climb onto the booms to reach grease fittings.

Grease all fittings.

See Section 3-1 for recommended grease.

OUTJ003,0000BEE -19-21JAN02-1/1
