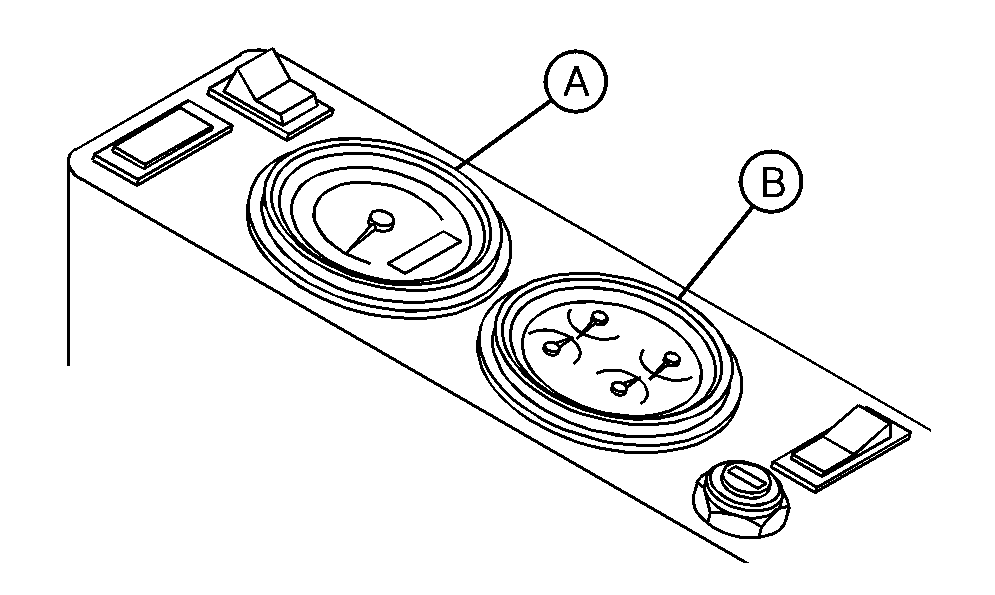

Check Engine Gauges
With the engine idling and at a normal operating temperature, verify that the gauges read as specified: |
|
|
| Item | Measurement | Specification |
|---|---|---|
|
Engine Oil Pressure |
Pressure | 103-517 kPa (15- 75 psi) |
|
Engine Coolant Temperature |
Temperature | 71-93°C (160-200°F) |
|
Tachometer - Low Idle |
Speed | 850 ± 50 rpm |
|
Voltmeter |
Voltage | 12-14 volts |
|
CAUTION:
During full-load operation the indicated oil pressure must be in the 40 to 70 psi range. Pressure below this range indicates the possibility of severe equipment damage.
