Check Engine Mounting Bolts Torque

Engine mounting bolts torque must be as specified.

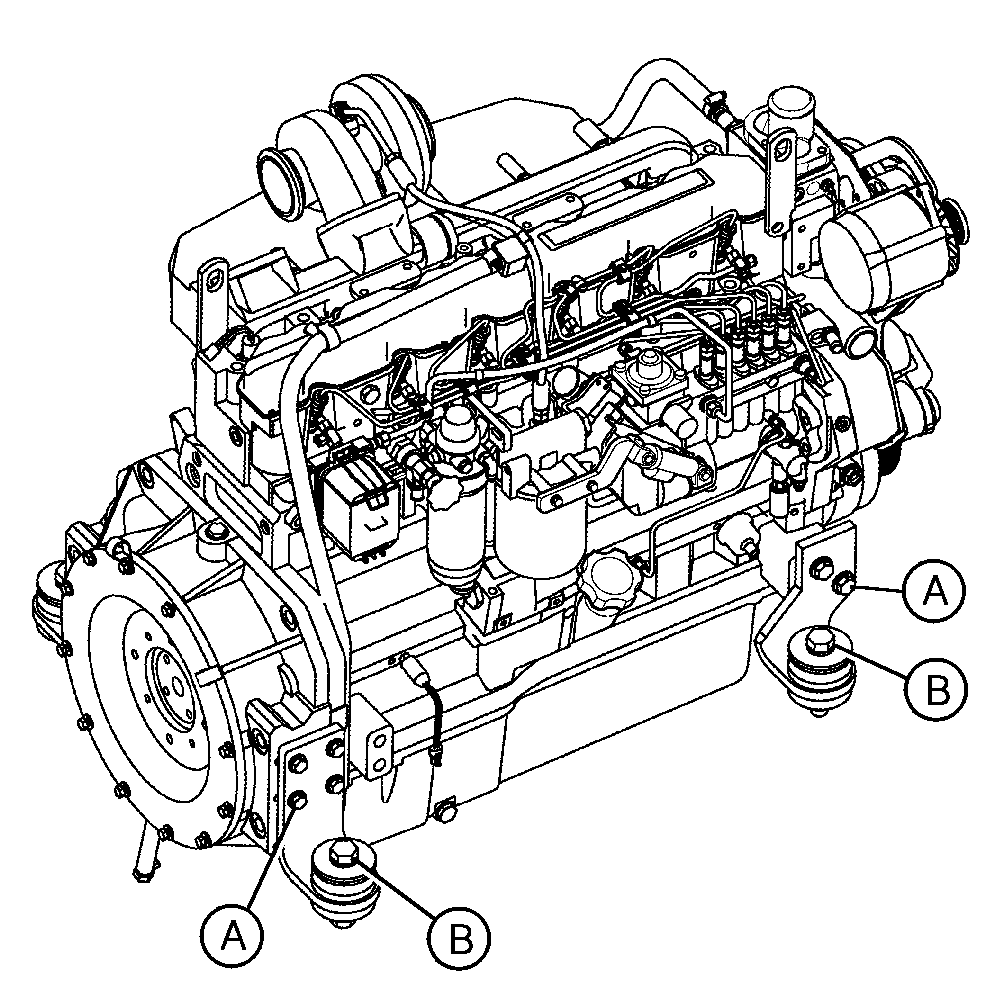

T150399


A-Bracket to Engine Capscrews
B-Bracket to Frame Capscrews

Item Measurement Specification

Bracket to Engine Capscrews (A)

Torque 140 N·m (105 lb-ft)

Bracket to Frame Capscrews (B)

Torque 644-691 N·m (475-510 lb-ft)

OUTJ003,0000BF2 -19-21JAN02-1/1
