Check Boom and Cylinder Pin Retainers Torque

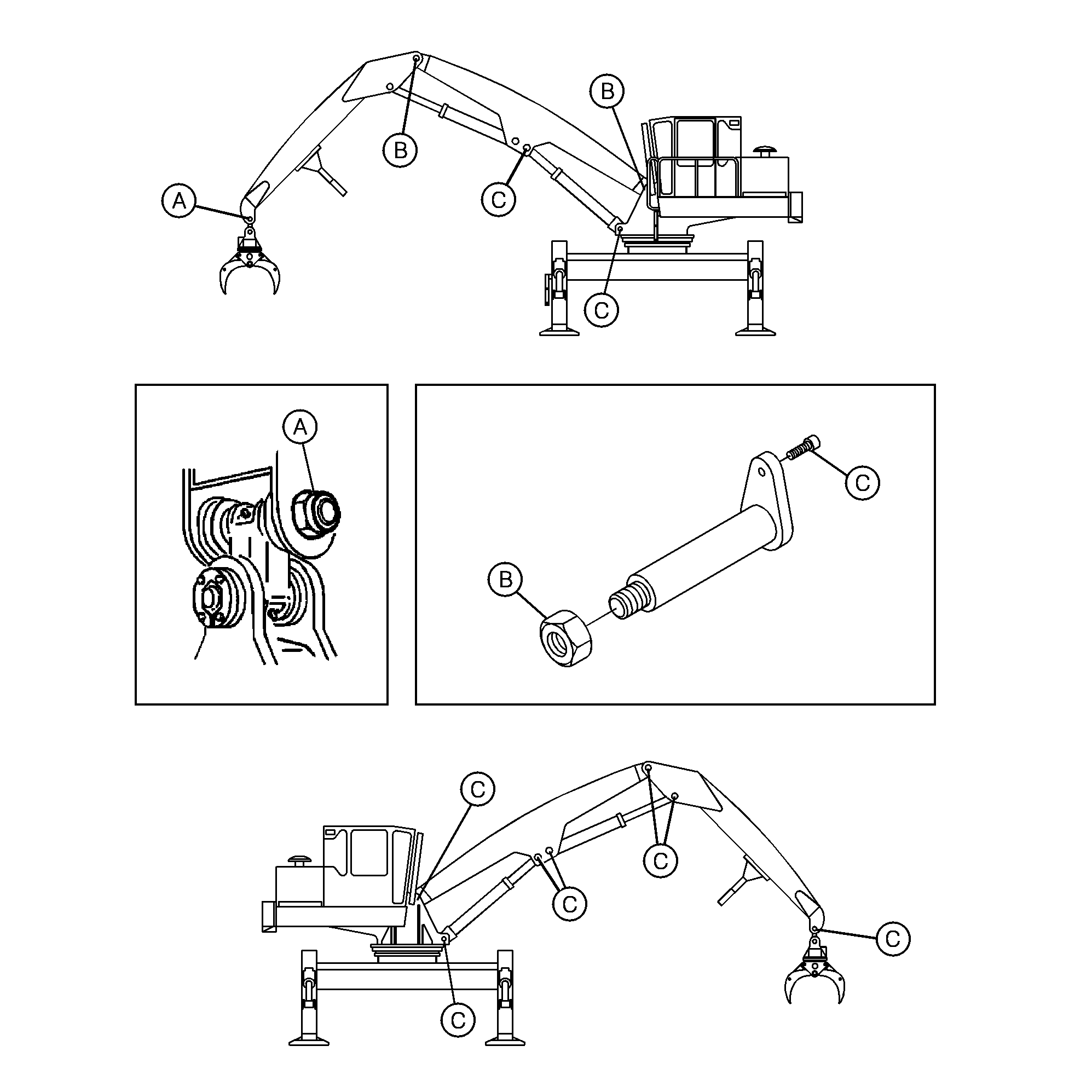

T150244


A-Grapple Pivot Pin Retainer Nuts

B-Boom Pin Retainer Nuts

C-Cap Screws



Verify that the boom and cylinder pin retainers are tightened to the specified torques.

Item Measurement Specification

Grapple Pivot Pin Retainer Nuts (A)

Torque 510 - 575 N·m (375 - 425 lb-ft)

OUTJ003,0000BF3 -19-21JAN02-1/2

Item Measurement Specification

Boom Pin Retainer Nuts (B)

Torque 815 - 880 N·m (600 - 650 lb-ft)

Cap Screws (C)

Torque 435 - 490 N·m (320 - 360 lb-ft)
