Check Loader Mounting Bolts Torque

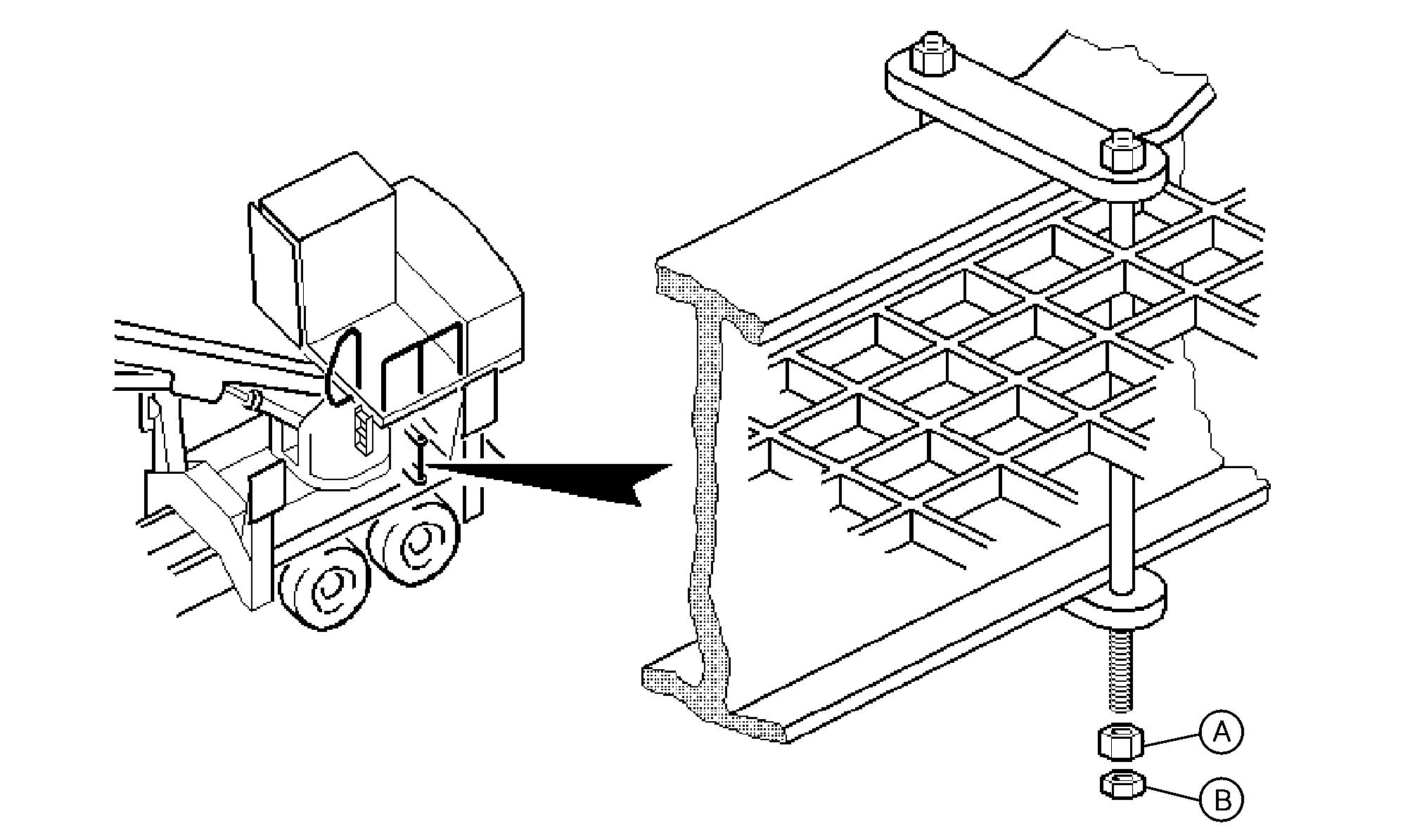

T150245


A-Nuts

B-Jam Nuts



Loosen jam nuts (B) and check that the nuts (A) on all eight loader mounting cap screws are torqued to the specified value.

Specification

Loader Mounting Cap Screws -Torque 678 - 718 N·m (500 - 530 lb-ft)

Re-tighten jam nuts.

OUTJ003,0000BF4 -19-21JAN02-1/1
