Change Engine Oil and Filter

1. Remove the plug from the engine oil drain hose. Open the engine oil drain valve. Drain the oil into a suitable container.

Specification

Engine Crankcase -Capacity 19.0 L (20.0 qt)

OUTJ003,0000BF6 -19-21JAN02-1/3

NOTE: Dispose of waste properly.

2. Close the engine oil drain valve. Install the plug in the engine oil drain hose.

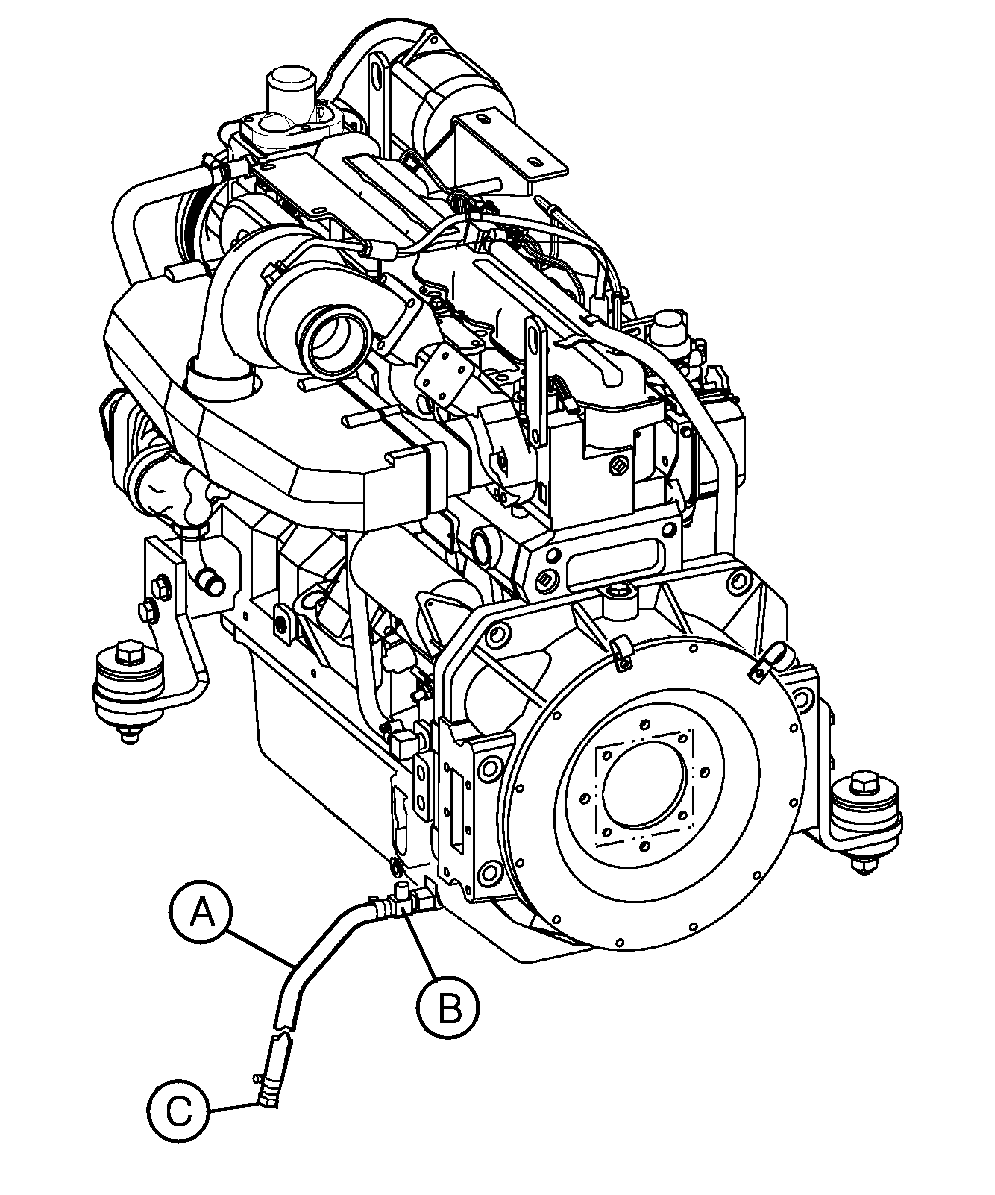

A-Engine Oil Drain Hose
B-Engine Oil Drain Valve
C-Engine Oil Drain Plug

T151043

OUTJ003,0000BF6 -19-21JAN02-2/3

3. Remove and discard the used oil filter. Clean the filter base.

4. Install replacement oil filter per the manufacturer's instructions.

5. Refill the engine with fresh engine oil. See Section 3-1 for recommended engine oil.

NOTE: The engine oil level dipstick is part of the engine oil filler cap.

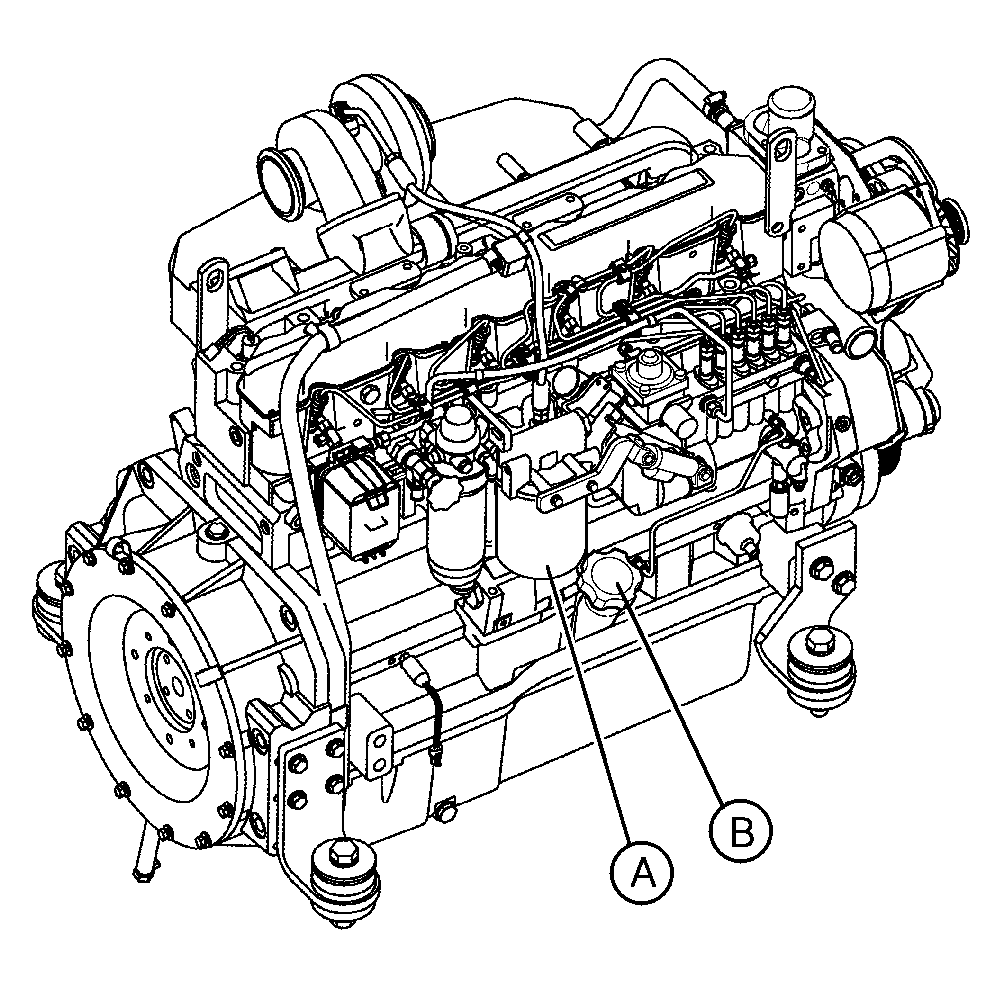

A-Engine Oil Filter
B-Engine Oil Filler Cap

T150400

OUTJ003,0000BF6 -19-21JAN02-3/3
