Check Turntable Bearing Mounting Cap Screws Torque

Check the torque of both upper and lower turntable cap screws, following the sequences shown.

The cap screws must be tightened to the specified torque.

Specification

Turntable Bearing Mounting Cap Screws -Torque 644-712 N·m (475-525 lb-ft)

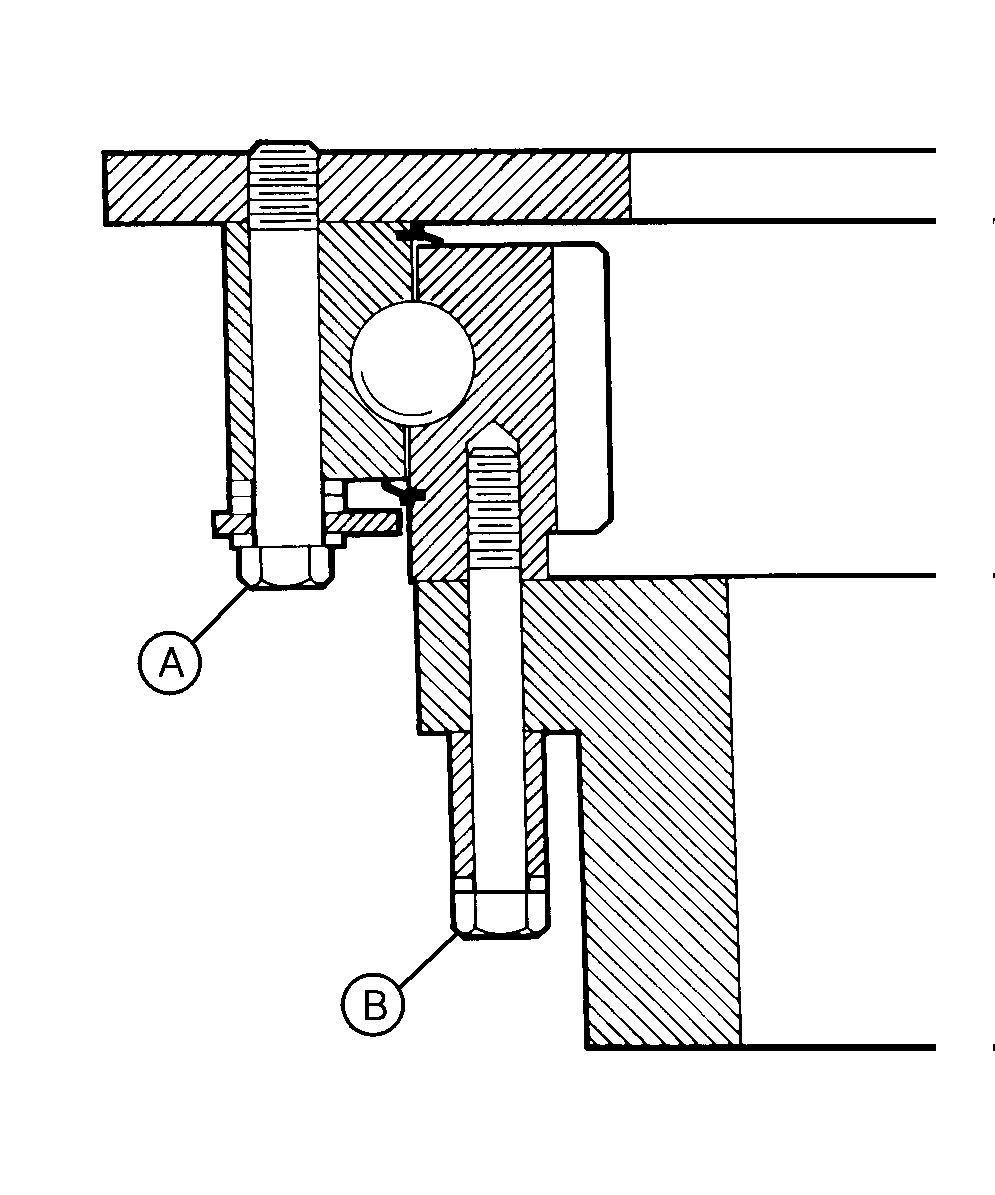

A-Upper Turntable Bearing Mounting Cap Screws
B-Lower Turntable Bearing Mounting Cap Screws

T150254

OUTJ003,0000BFD -19-21JAN02-1/2

NOTE: The Upper Turntable Bearing Mounting Cap Screws Torque Sequence figure shows the view from the underside of the turn table.

Both figures show the front of the machine at the top.

T150252

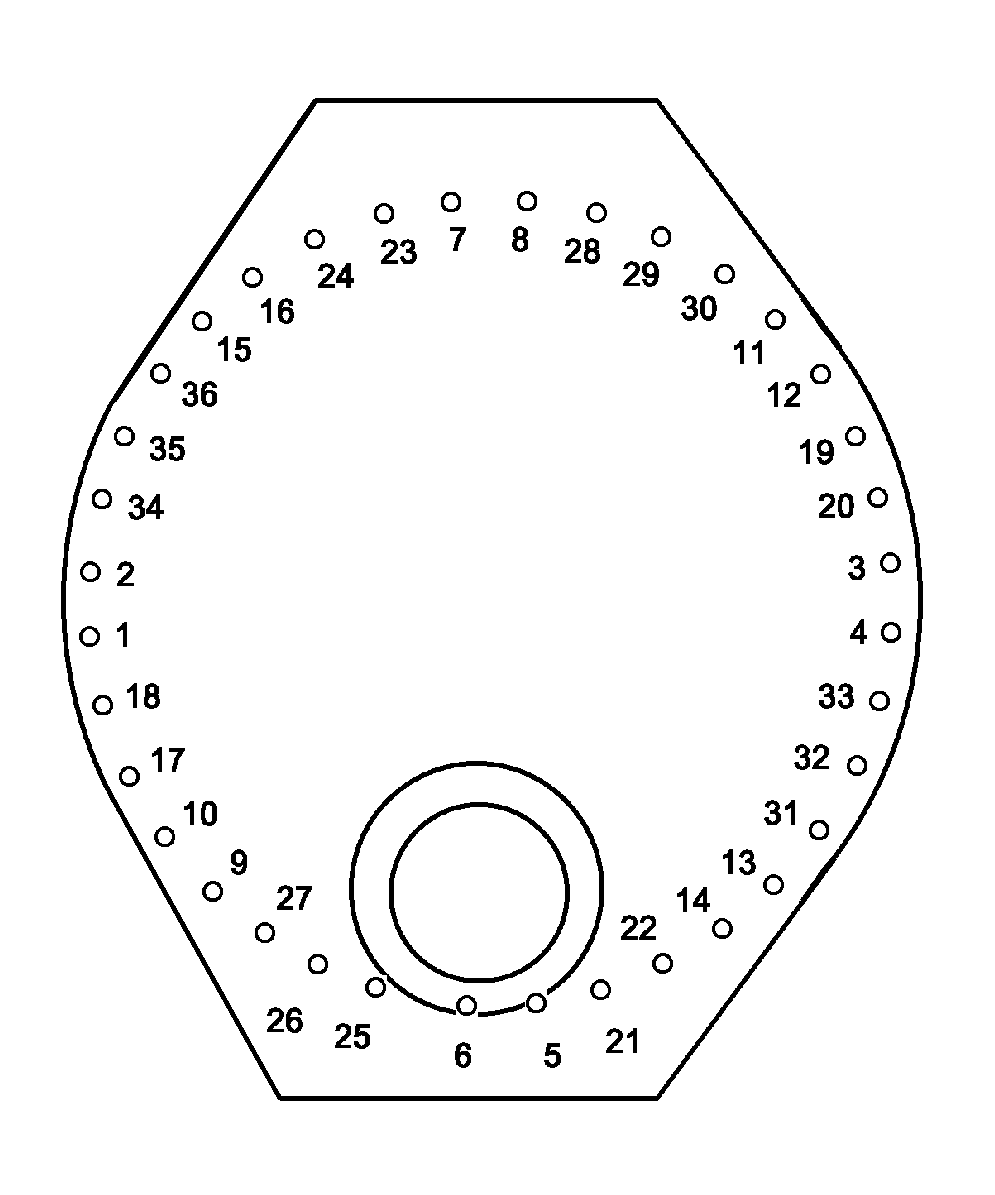

Upper Turntable Bearing Mounting Cap Screws Torque Sequence

T150253

Lower Turntable Bearing Mounting Cap Screws Torque Sequence

OUTJ003,0000BFD -19-21JAN02-2/2
