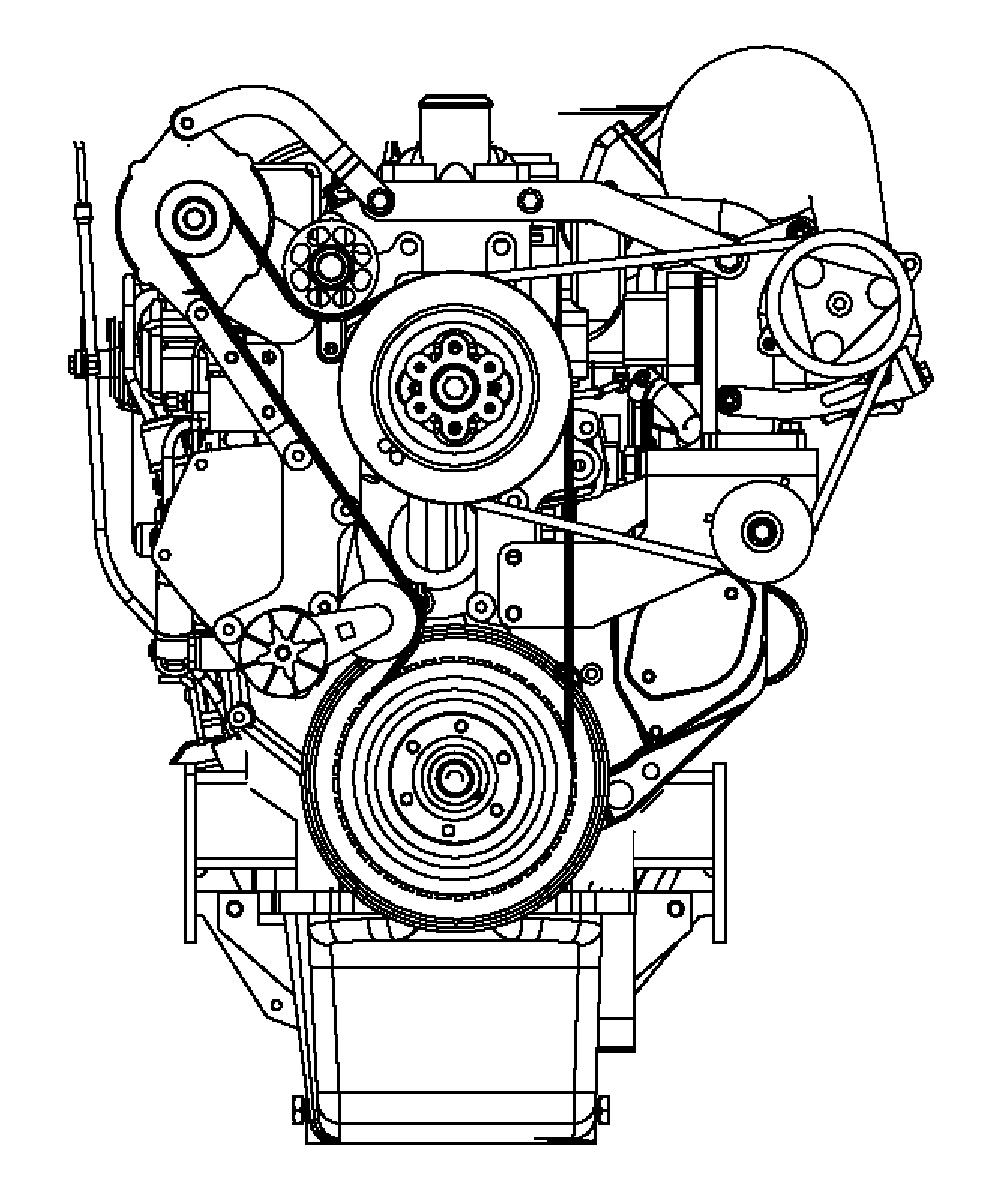

Check Engine Fan Belt and Tensioner

2. Check that the automatic belt tensioner and fan hub turn freely.

3. Inspect the fan belt for wear and damage:

• Minute transverse cracks are acceptable as long as they are not intersected by longitudinal cracks.
• Replace the fan belt if unacceptable cracks are noticed, the belt is frayed, or has pieces of material missing.

4. Install the fan belt.

OUTJ003,0000C01 -19-21JAN02-1/1
