535/530B Log Loader Machine Dimensions

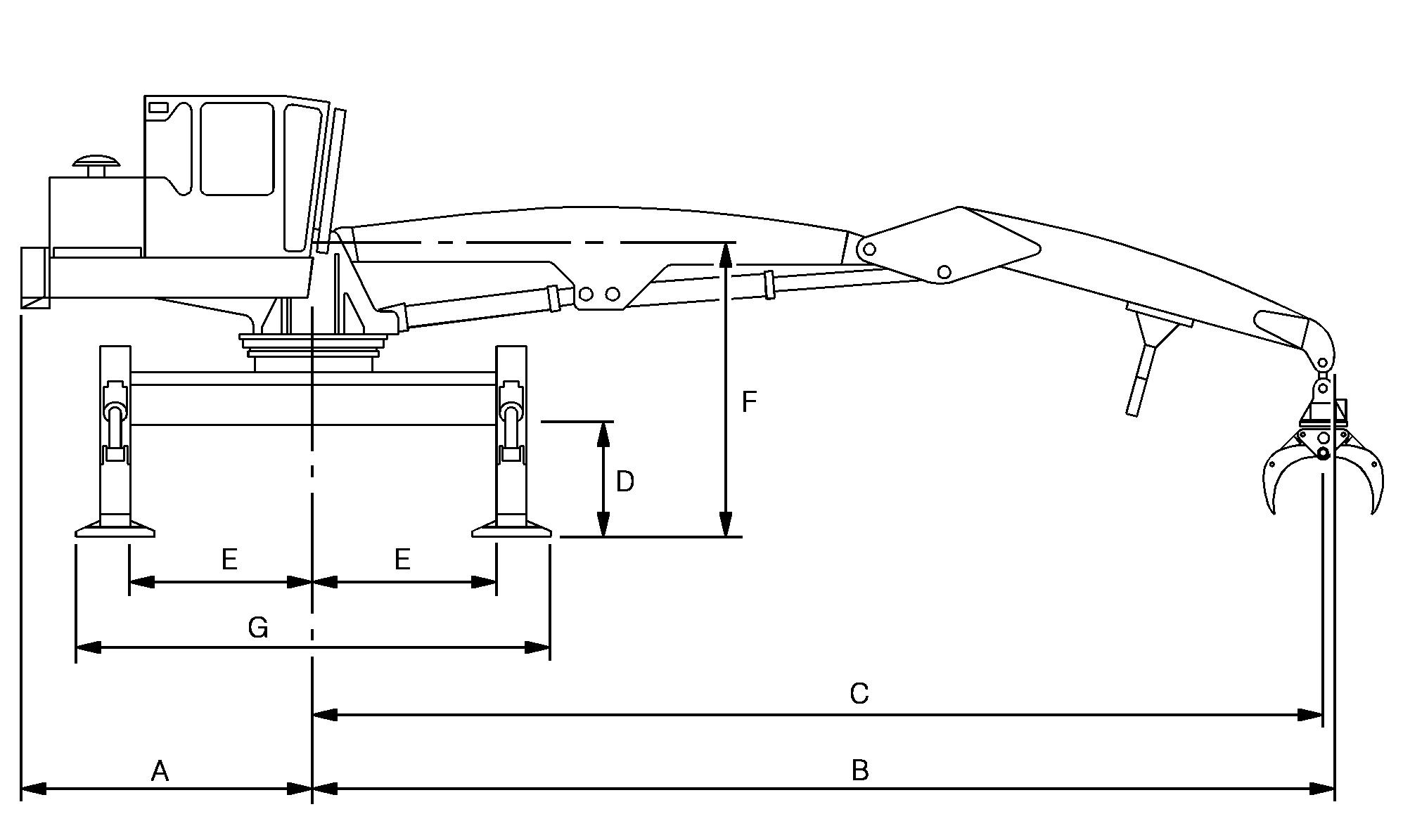

T150395

A 2883 mm 113.5 in.
B 9469 mm 372.8 in.
C 9413 mm 370.6 in.
D 1016 mm 40.0 in.
E 1676 mm 66.0 in.
F 2692 mm 106 in.
G 4803 mm 189.1 in.



OUTJ003,0000C06 -19-22JAN02-1/2

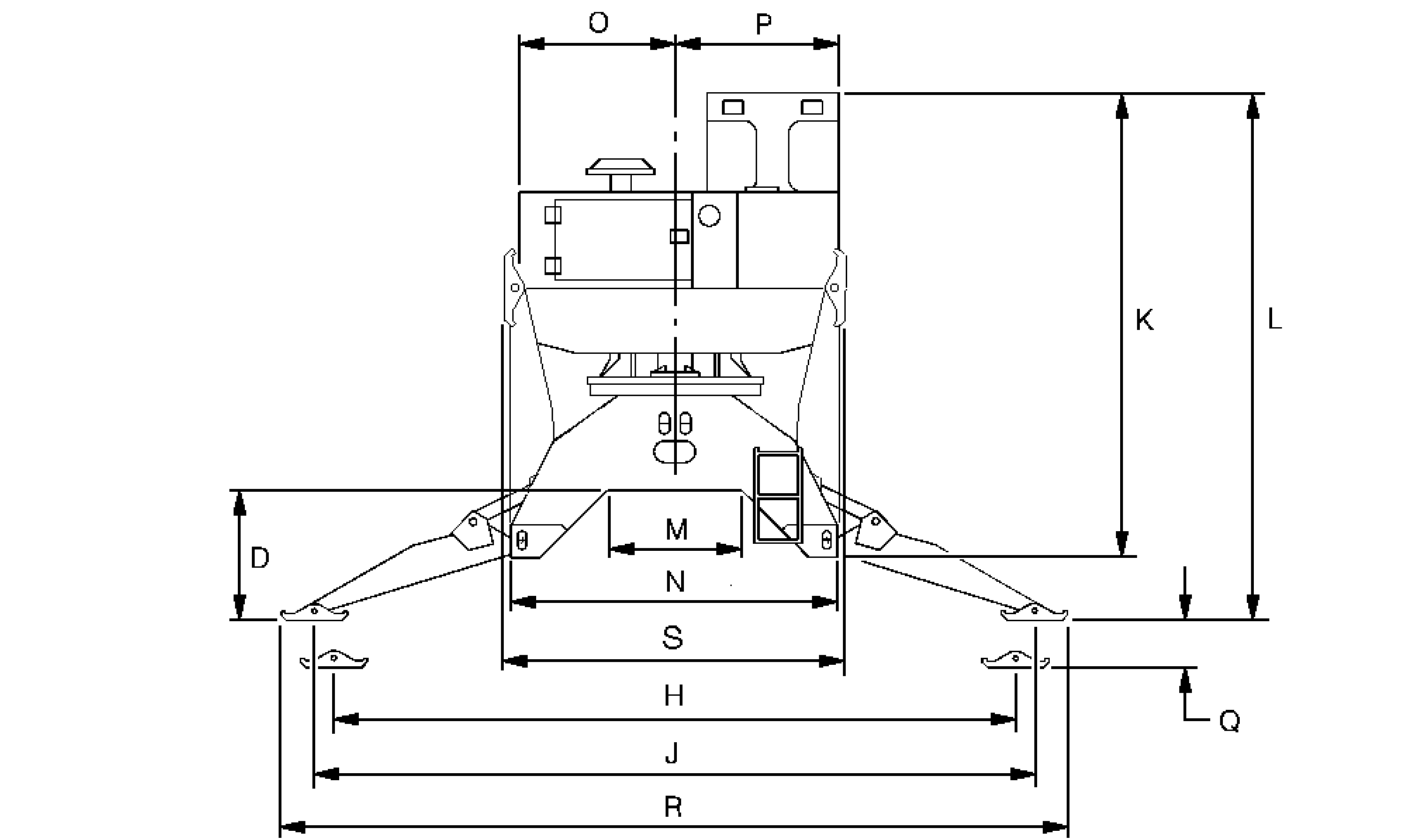

T150396

D 991 mm 39.0 in.
H 5323 mm 209.6 in.
J 5618 mm 221.2 in.
K 3604 mm 141.9 in.
L 4112 mm 161.9 in.
M 1054 mm 41.5 in.
N 2540 mm 100.0 in.
O 1227 mm 48.3 in.
P 1281 mm 50.4 in.
Q 508 mm 20 in.
R 6137 mm 241.6 in.
S 2644 mm 104.1 in.



OUTJ003,0000C06 -19-22JAN02-2/2
