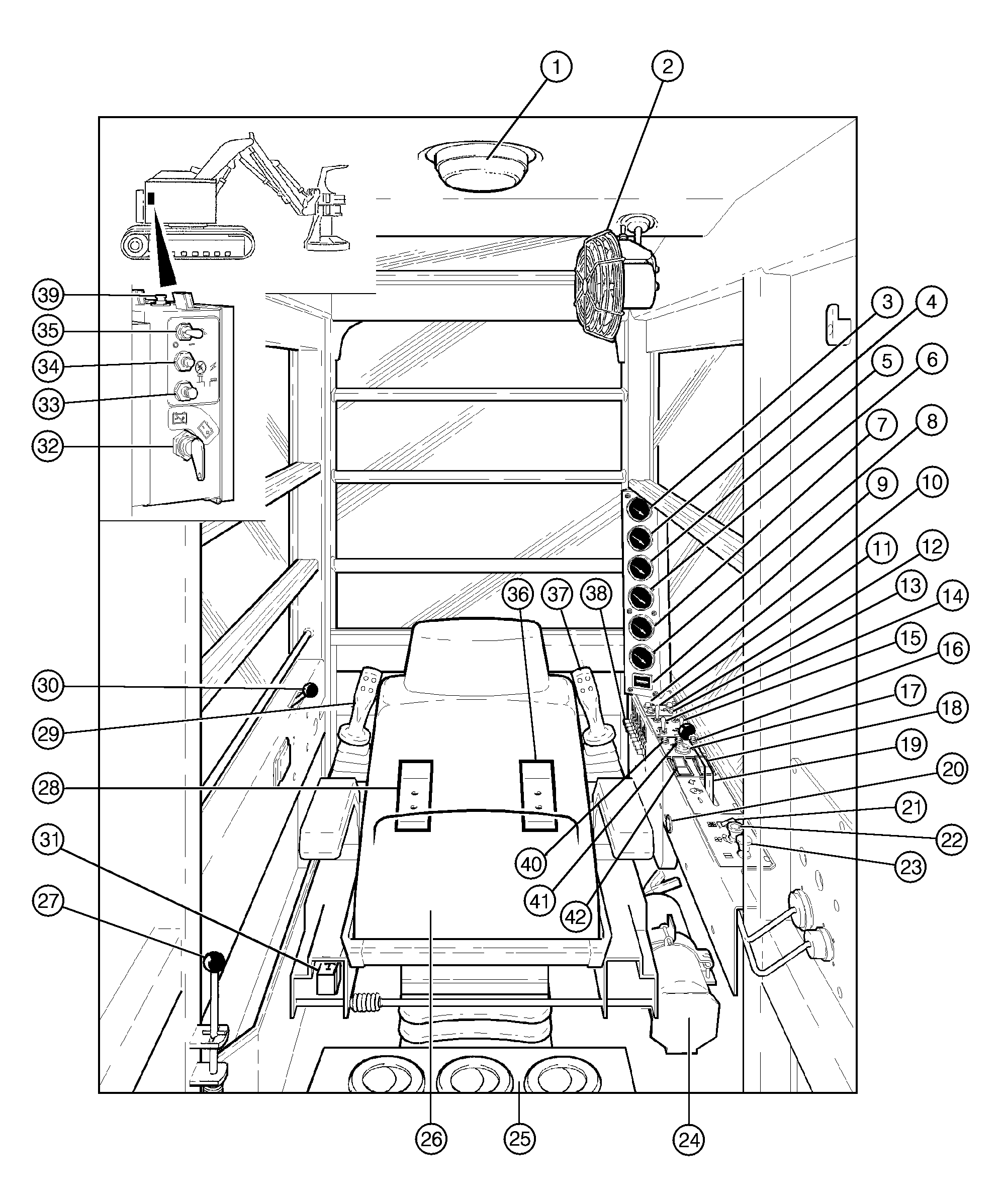

1-Dome Light
2-Defroster Fan
3-Tachometer
4-Engine Coolant Temperature Gauge
5-Engine Oil Pressure Gauge
6-Hydraulic Oil Temperature Gauge
7-Voltage Gauge
8-Fuel Gauge
9-Hourmeter
10-Hydraulic Warning Lights
Warning Light Hydraulic Oil Level
Return Filter Warning Light
Pump Inlet Pressure Warning Light
|
11-Front Cab Lights
12-Front Enclosure Lights
13-Low Engine Coolant Warning Light
14-Swing Brake Control
15-Travel Speed Control
16-Travel Alarm Override
17-Ignition Key Switch
18-Saw On/Off Switch
19-Throttle Control Lever
20-Alarm
Engine Enclosure Door Open
Pilot Circuit Engaged
21-Air Conditioning Switch
22-Fan Speed Switch
23-Heater Control
|
24-Fire Extinguisher
Fire Suppression System - Optional
25-Cab Heater/AC Outlet
26-Operator's Seat
27-Cab Door Jamb Lever
28-Left Foot Pedal - Drive Control
29-Left Joystick
30-Cab Door Release Handle
31-Pilot Switch
32-Battery Disconnect Switch
33-Circuit Breaker - Main
34-Circuit Breaker - Service Lights
|
35-Service Light Switch
36-Right Foot Pedal - Drive Control
37-Right Joystick
38-Circuit Breakers
39-Circuit Breaker - Enclosure Door Pump
40-Horn Override and Lamp Test
41-Forward Horn
42-Pilot Reset Switch
43-Secondary Exit/Rear Window - Not Shown
44-Cab Air Filter - Not Shown
|
