Gauges
1.
Tachometer
: Engine speed is displayed on the engine tachometer.
High Idle
Speed
2160 ± 50 rpm
Low Idle (6CT8.3)
Speed
900 rpm
Low Idle (6CTA8.3)
Speed
950 rpm
2.
Engine Coolant Temperature Gauge
: Indicates engine coolant temperature.
Normal Engine Coolant Temperature
Temperature
84 - 88°C (183 - 190°F)
Audible Alarm
Temperature
above 99 °C (210 °F)
3.
Engine Oil Pressure Gauge
: Indicates engine oil pressure.
Normal Engine Oil Pressure
Pressure
207 - 414 kPa (30 - 60 psi)
Audible Alarm
Pressure
Below 104 kPa (15 psi)
4.
Hydraulic Oil Temperature Gauge
: Indicates hydraulic oil temperature. Temperature is maintained by a thermostatic valve in the oil cooler.
Normal operating temperature - Winter Oil
Temperature
60 - 63 °C (140 -145°F)
Normal operating temperature - Summer Oil
Temperature
71 - 77 °C (160 - 170°F)
Audible Alarm
Temperature
Above 99 °C (210 °F)
5.
Voltage Gauge
: Indicates battery voltage.
Normal Voltage
Voltage
25 - 28 volts
6.
Fuel Gauge
: Indicates fuel level.
Fuel Tank
Capacity
570 L (150 gal)
7.
Hourmeter
: Indicates total hours of engine operation. The operating time is counted in regular hours from start up to shut down regardless of engine speed and machine operation.
|

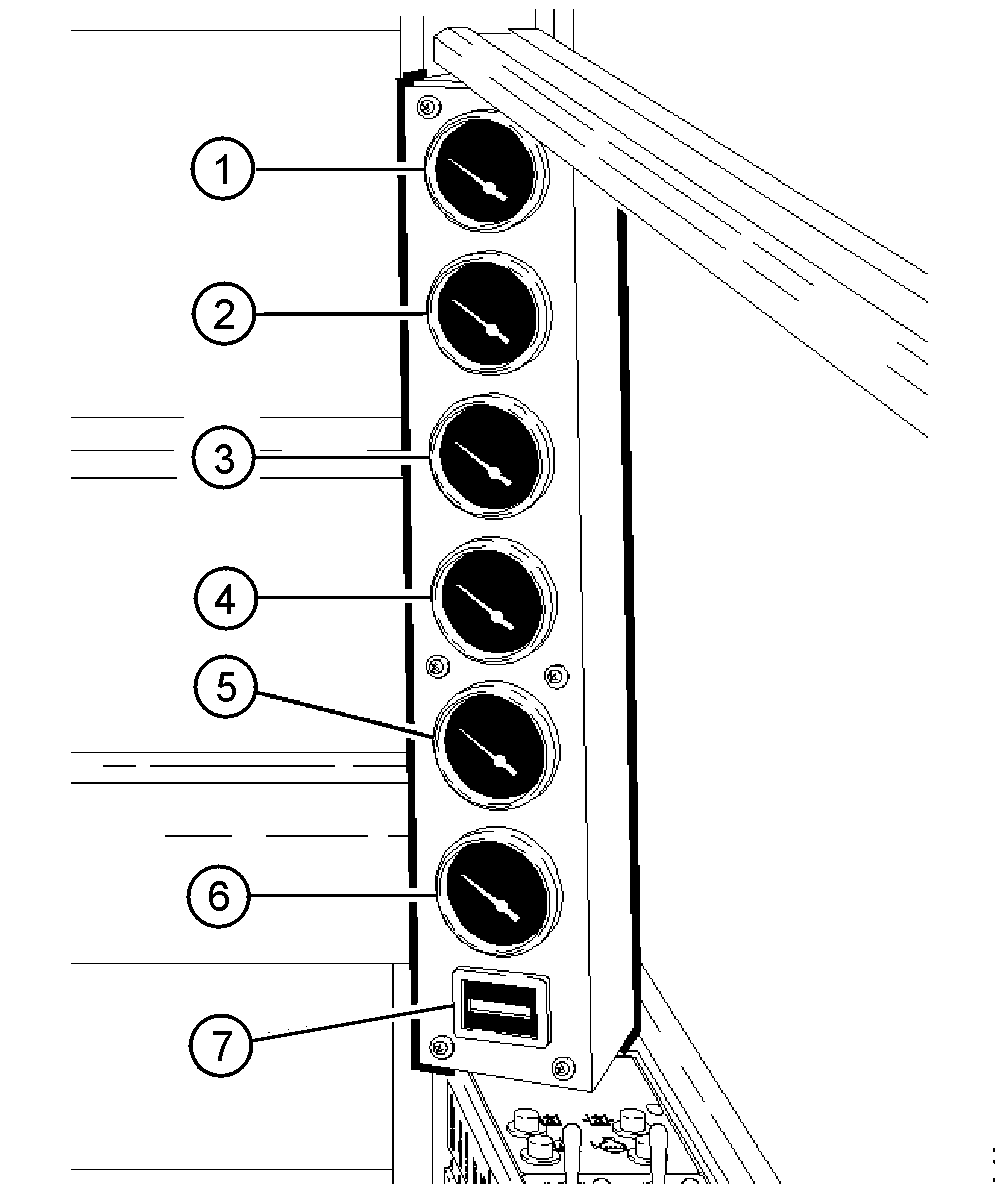

1-Tachometer
2-Engine Coolant Temperature Gauge
3-Engine Oil Pressure Gauge
4-Hydraulic Oil Temperature Gauge
5-Voltage Gauge
6-Fuel Gauge
7-Hourmeter
|
