Warning Lights

1. Hydraulic Oil Level Warning Light : Indicates that the hydraulic level oil is too low. When this light is on check for oil leaks on the machine and check the hydraulic oil reservoir and refill to proper level.
2. Return Filter Warning Light : Indicates the hydraulic oil filters may be plugged. Do not operate machine with warning light on. Return Filter Warning Light Activated
Pressure Above 124 kPa (18 psi )


3. Pump Inlet Pressure Warning Light : Indicates when pressure in the suction manifold is too low. Check for hydraulic oil leak or air leak. Normal Hydraulic Tank Pressure
Pressure 55 - 103 kPa (8 - 15 psi) Pump Inlet Pressure Warning Light Activated
Pressure Below 14 kPa (2 psi)

NOTE: The light may come on in cold weather start-up conditions. Do not run engine over 1500 rpm during cold start-up. To help pressurize tank, extend boom cylinder fully then retract boom cylinder.


4. Low Engine Coolant Warning Light : The light will turn on when the engine coolant level drops below the radiator top tank level sensor. Shut the engine down immediately if the light turns on and check the coolant level.

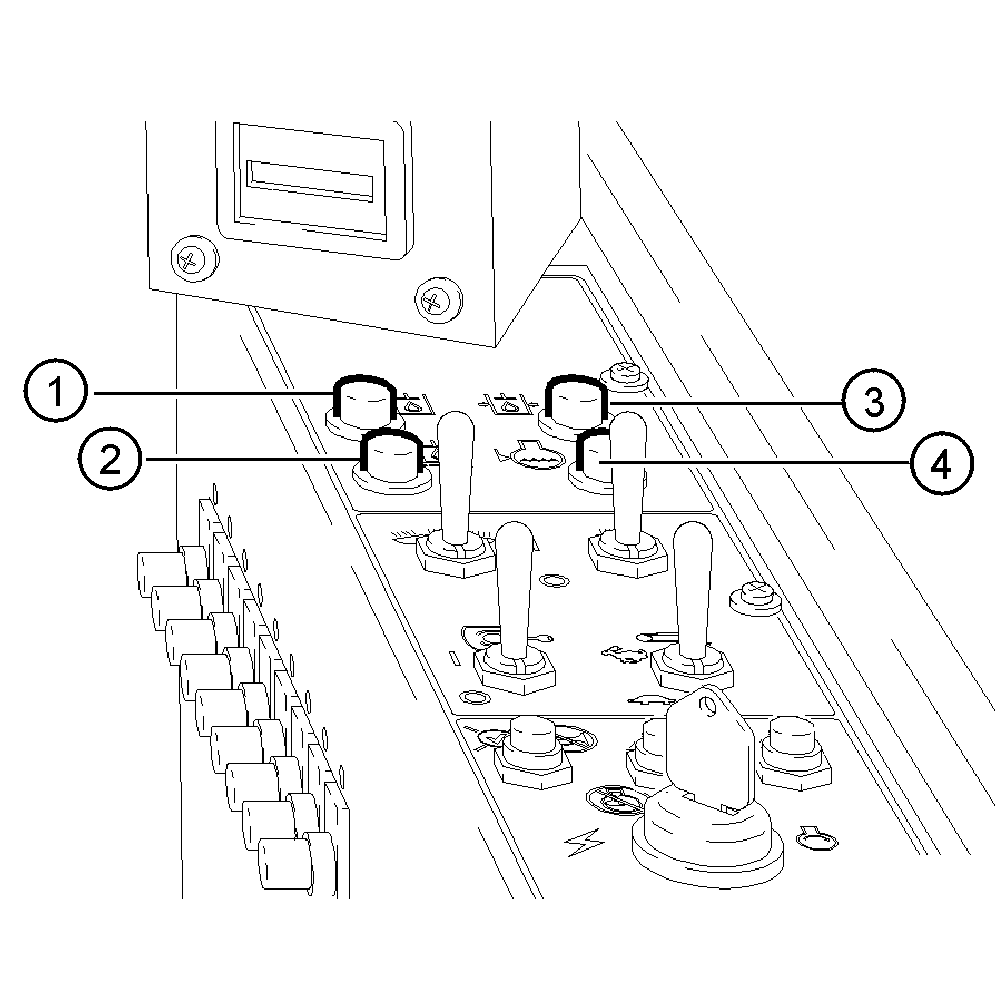

T146968


1-Hydraulic Oil Level Warning Light
2-Return Filter Warning Light
3-Pump Inlet Pressure Warning Light
4-Low Engine Coolant Warning Light

MR64971,000003A -19-05DEC01-1/1
