Horn Override and Lamp Test Switch
This button (1) when pressed, silences the alarm while starting the engine and illuminates the warning lights (2, 3, 4) as a bulb check.

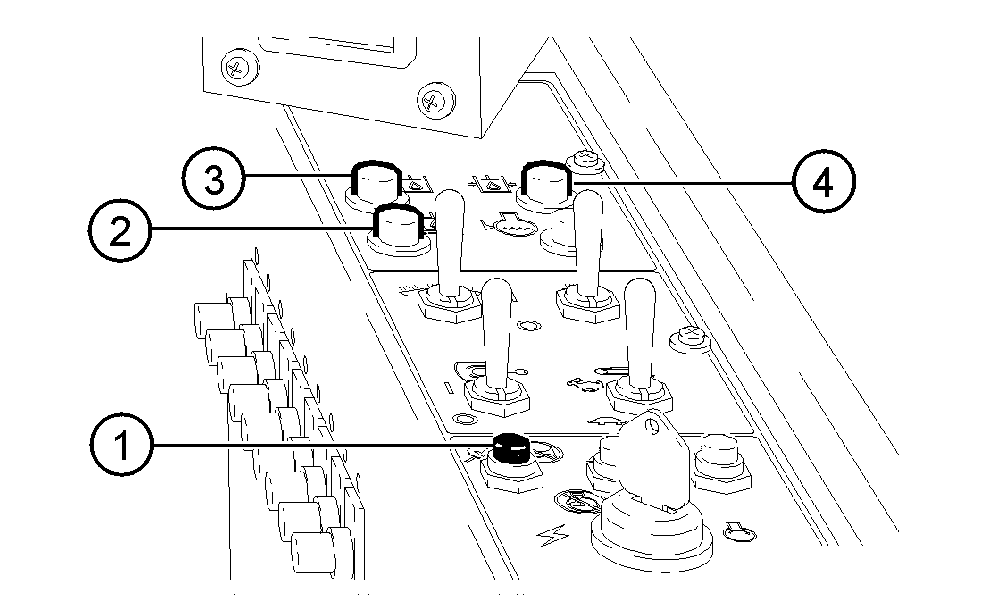

1-Horn Override and Lamp Test Switch
2-Return Filter Warning Light
3-Hydraulic Oil Level Warning Light
4-Pump Inlet Pressure Warning Light
|
|
