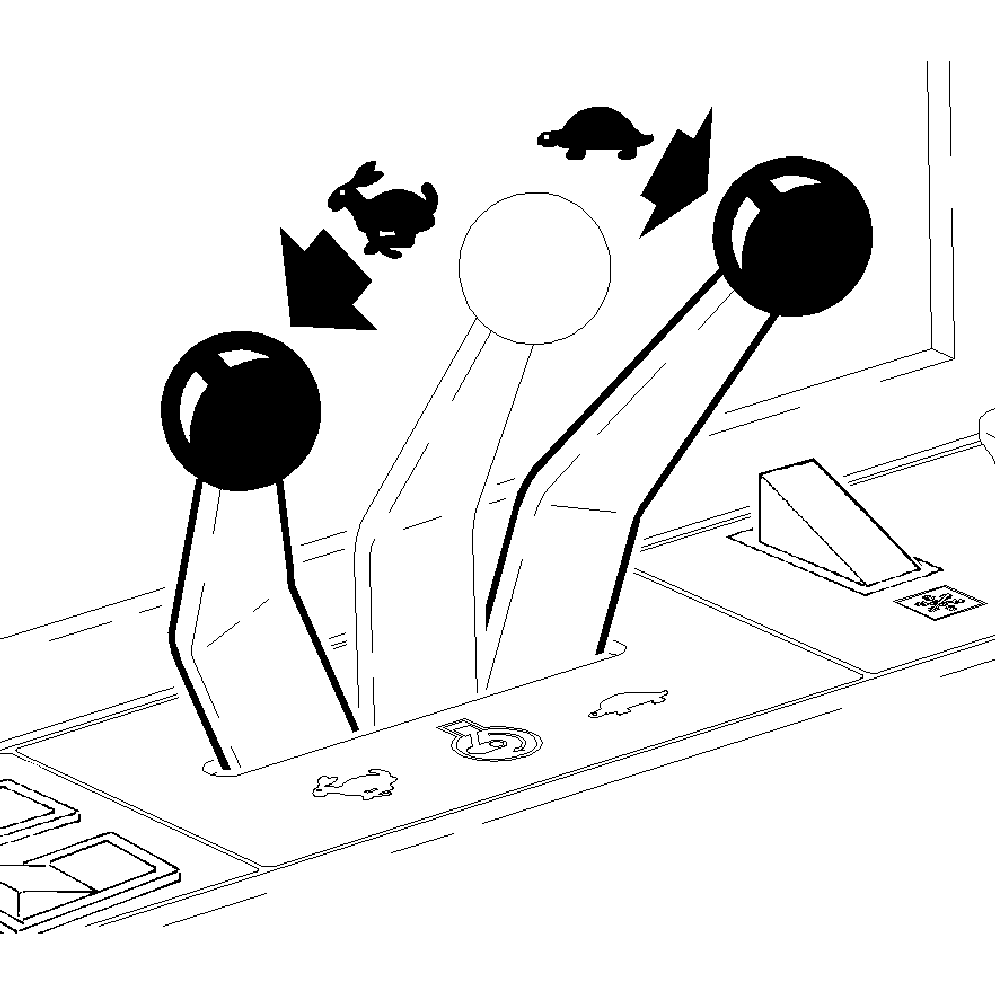

Throttle Lever

To regulate engine speed, push lever forward completely for full throttle and pull back completely for low idle.

All felling operations should be performed at full throttle. It is most important that the rpm of the engine be correct at all times.

IMPORTANT: Under no circumstances allow the Full Throttle engine rpm to exceed the recommended settings as serious damage to the pumps will result.

MR64971,000003E -19-05DEC01-1/1
