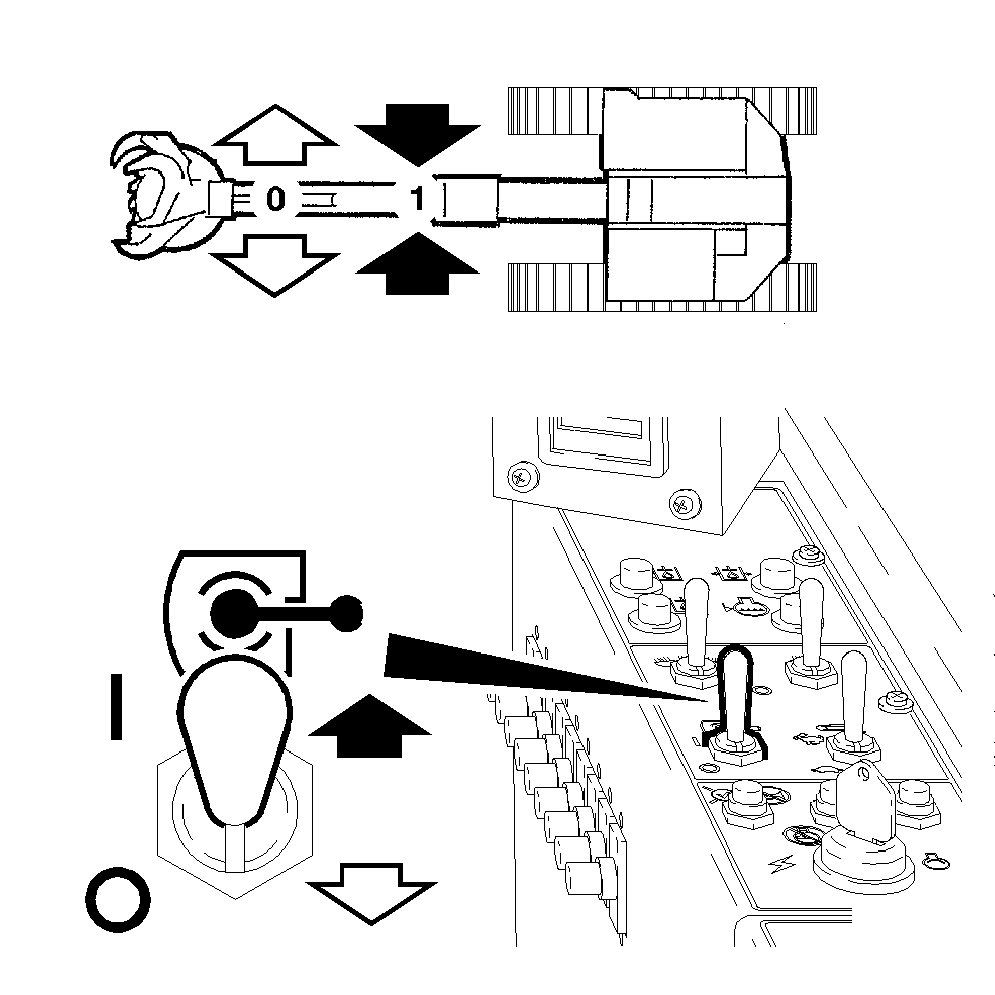

Swing Brake Control Switch

This is a two position switch used to engage or disengage the turntable swing brake.

When the swing brake is ON the turntable will not rotate. During normal operation the swing brake must be switched OFF.

-OFF
l -ON

MR64971,000003F -19-05DEC01-1/1
