Circuit Breakers

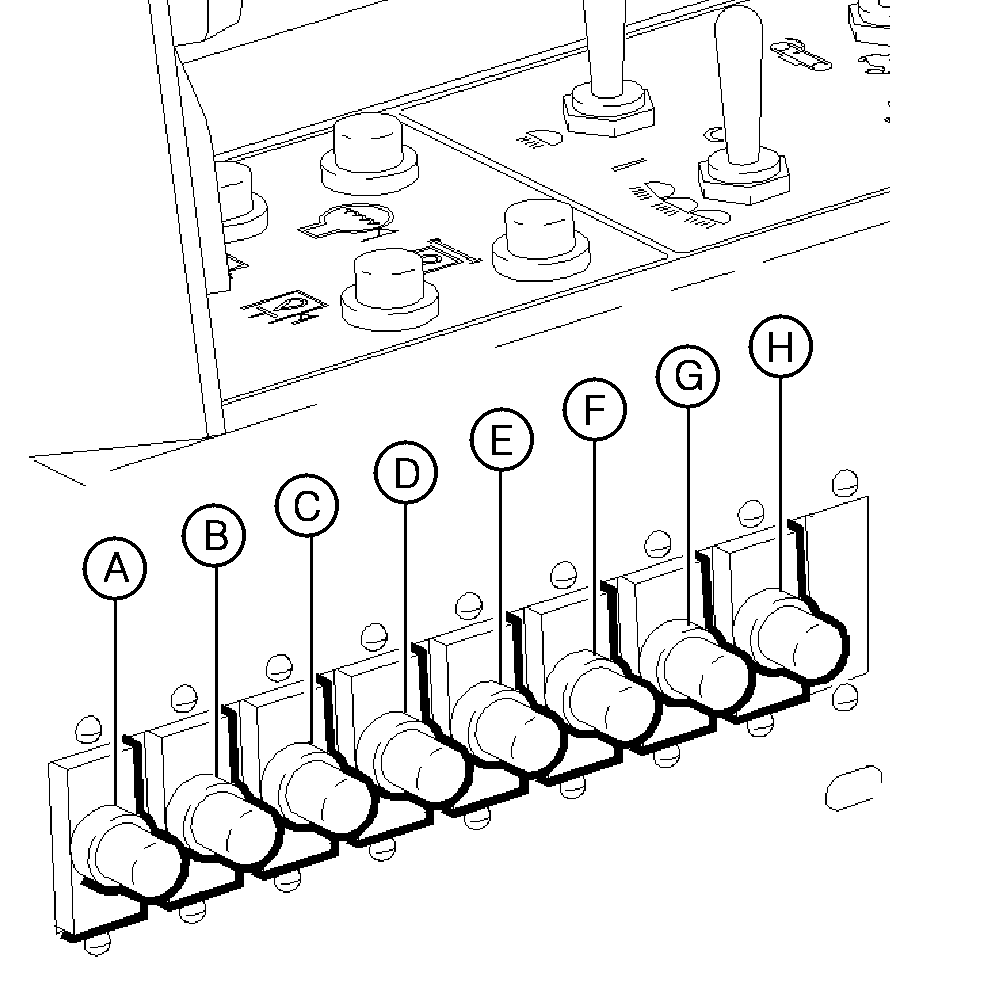

These circuit breakers (15 amp) are used to protect the individual electrical circuits. Press to reset.

A-Solenoid valves
B-Air Conditioner/Heater
C-Gauges
D-Starter Relay
E-Front Lights (20 amp)
F-Enclosure Door Lights
G-Dome Light/Defroster Fan
H-Spare (24V)

MR64971,0000045 -19-05DEC01-1/2

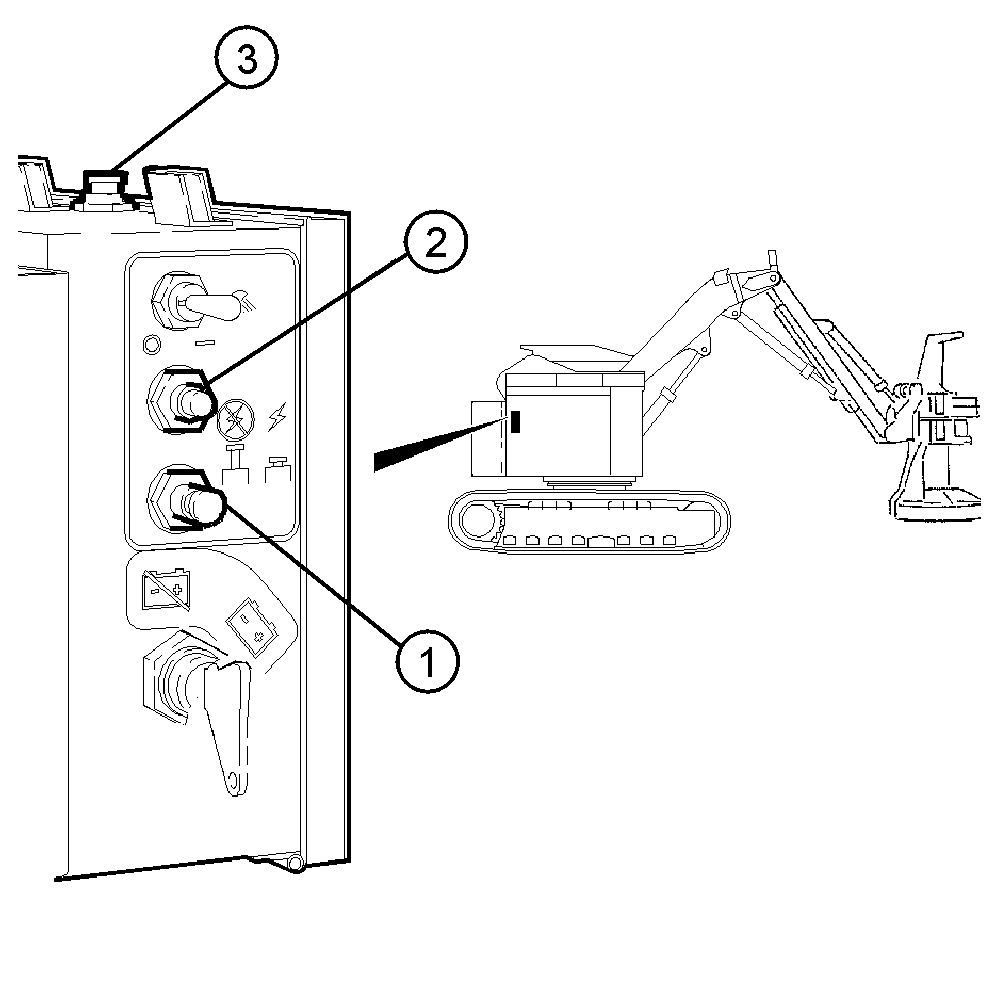

The Main System Circuit Breaker (1) protects all of the systems electrical circuits. Press to reset.

The Service Lights Circuit Breaker (2) protects the service light circuits. Press to reset.

The Enclosure Door Pump Circuit Breaker (3) protects the engine enclosure door pump circuit. Press to reset.

1-Main System Circuit Breaker
2-Service Lights Circuit Breaker
3-Enclosure Door Pump Circuit Breaker
