Operator's Seat

CAUTION: Use the seat belt when operating the machine. Do not adjust the seat position while the machine is moving. Failure to observe these safety precautions can lead to risk of personal injury.

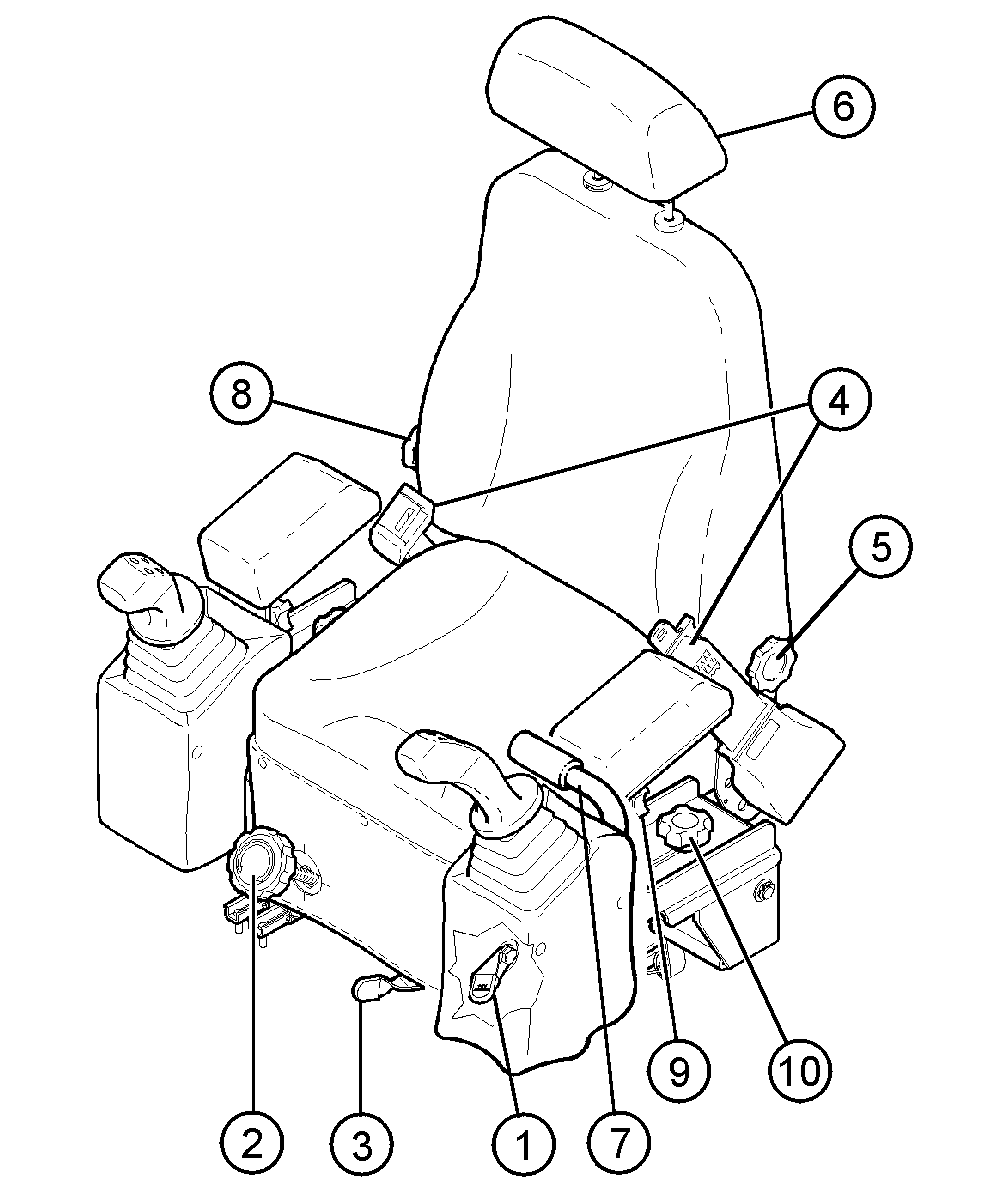

The operator seat provides adjustments for up, down, forward, rearward, lumbar rest, arm rest and cushion.

1-Height Adjustment Lever
2-Ride Adjustment Knob
3-Seat Fore and Aft Adjustment
4-Seat Belt
5-Back Angle Adjustment Knob
6-Headrest Adjustment
7-Joystick and Armrest Raise/Lower
8-Lumbar Adjustment Knob
9-Armrest Adjustment
10-Fore and Aft Adjustment Armrest/Joystick

MR64971,0000048 -19-05DEC01-1/11

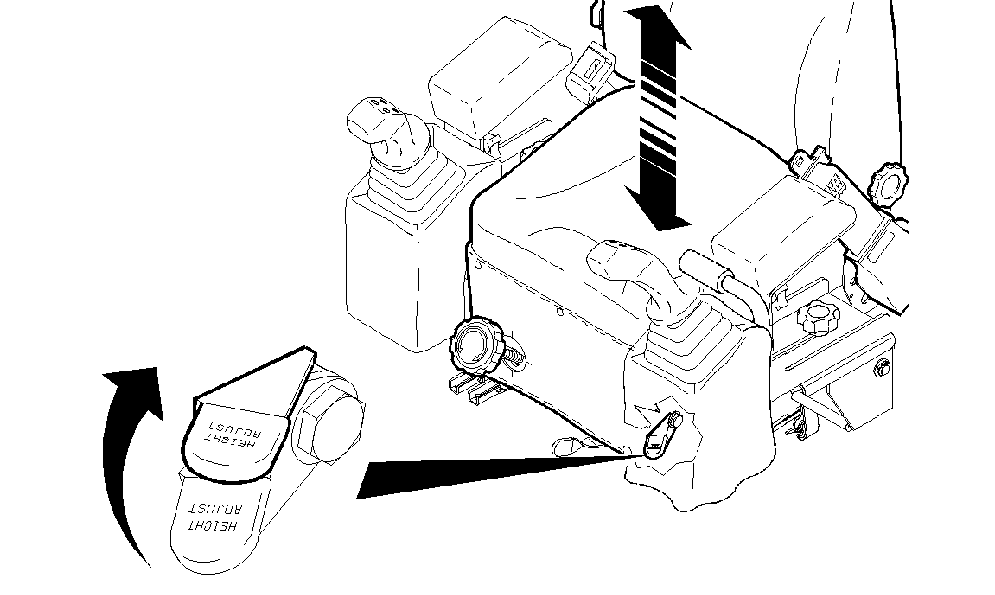

Lift the lever to raise or lower the seat height. Lower the lever to lock the seat in the desired position.

MR64971,0000048 -19-05DEC01-2/11

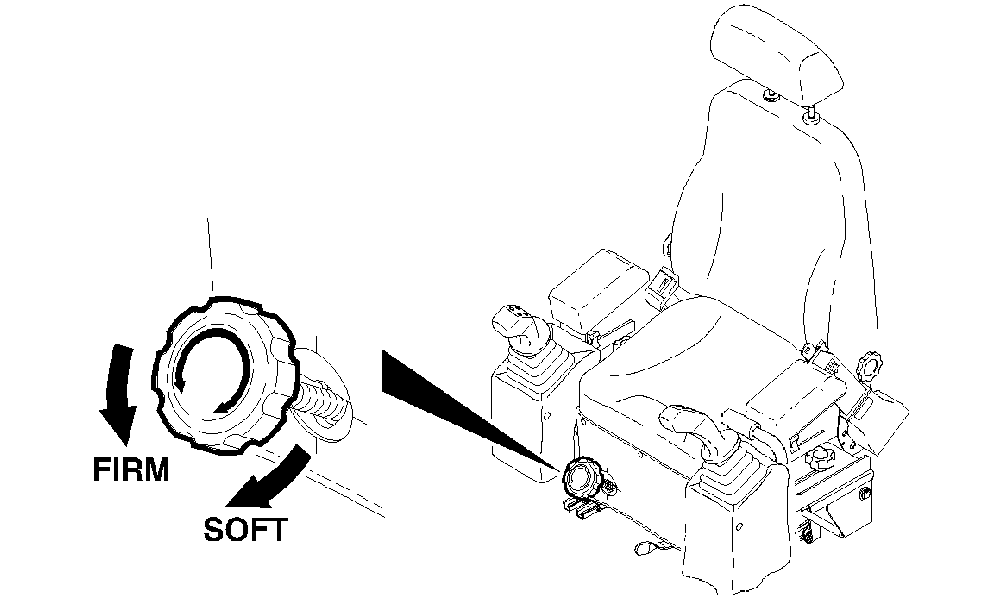

After adjusting the height, turn the knob counterclockwise until the seat cushion is level.

MR64971,0000048 -19-05DEC01-3/11

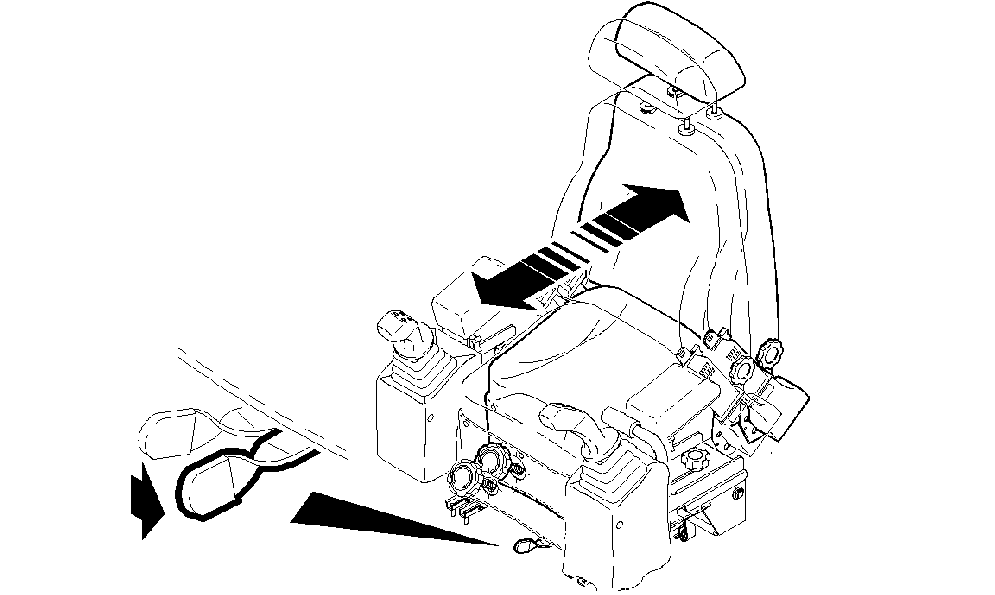

Push the lever to the left and slide the seat forward or rearward to the desired position. Release the lever to lock the seat in place.

MR64971,0000048 -19-05DEC01-4/11

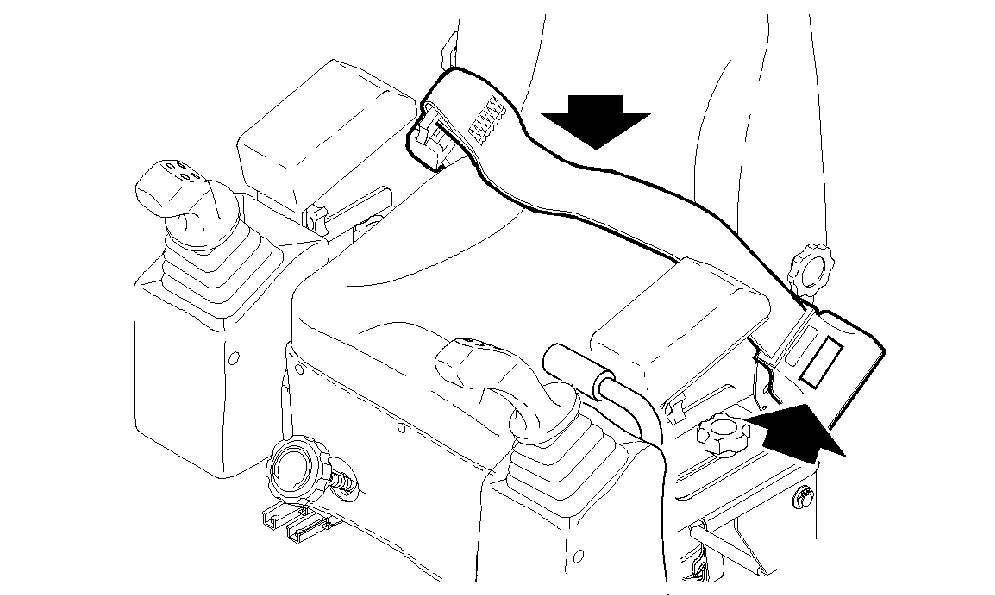

The seat belt must be worn at all times while driving or operating the machine.

NOTE: The seat belt must be replaced every 3 years from date marked on decal.

MR64971,0000048 -19-05DEC01-5/11

Turn the knob and adjust the backrest angle to desired position.

MR64971,0000048 -19-05DEC01-6/11

Pull up or push down on the headrest to adjust the headrest height.

MR64971,0000048 -19-05DEC01-7/11

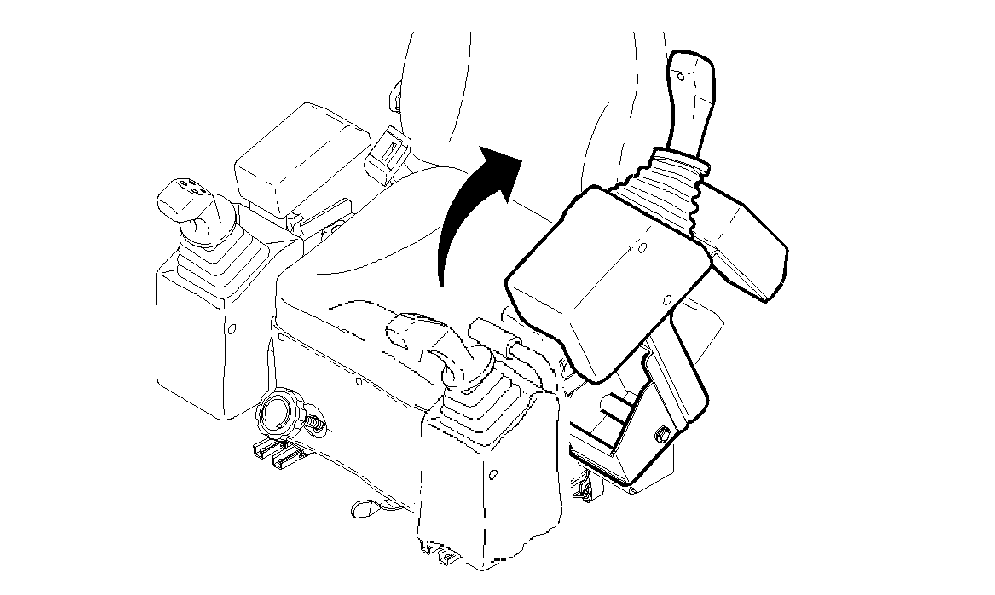

Lift to raise the joystick and armrest unit.

MR64971,0000048 -19-05DEC01-8/11

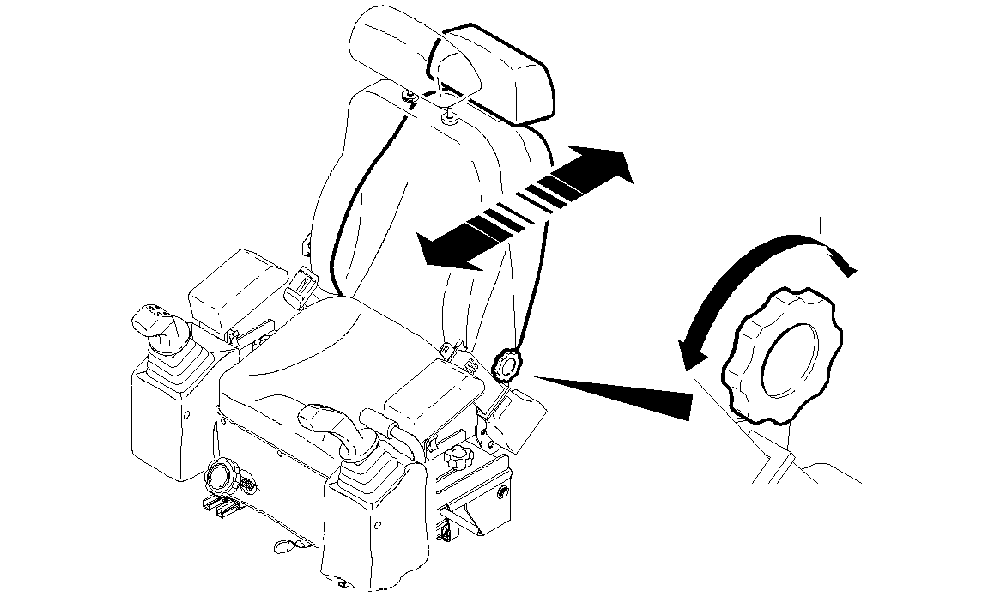

Turn the knob forward to position the lumbar support forward and rearward to retract the lumbar support.

MR64971,0000048 -19-05DEC01-9/11

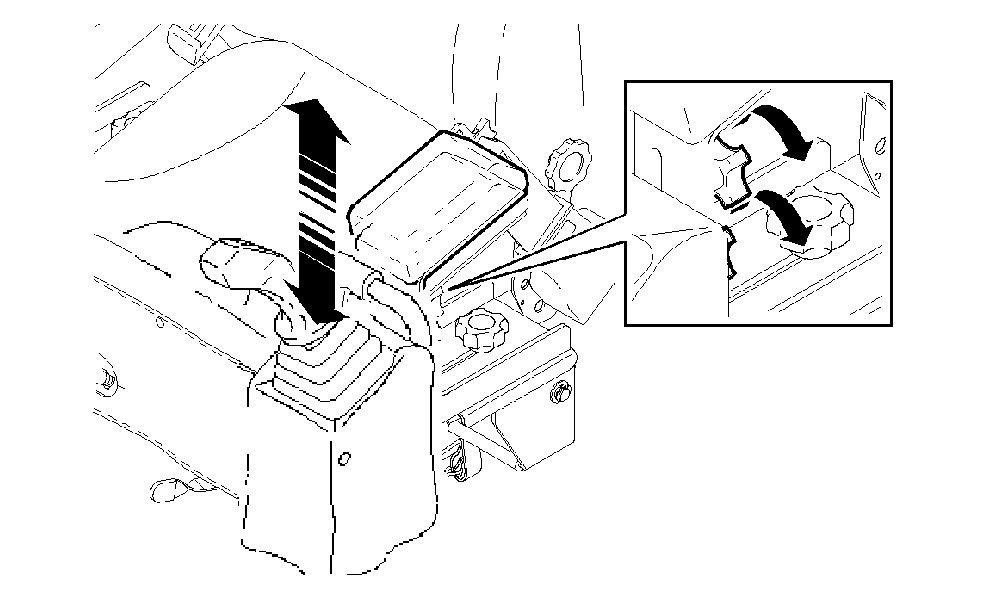

Turn the two knobs counterclockwise to loosen adjustment and lift the armrest up or down to desired position. Turn both knobs clockwise to tighten the adjustment.

MR64971,0000048 -19-05DEC01-10/11

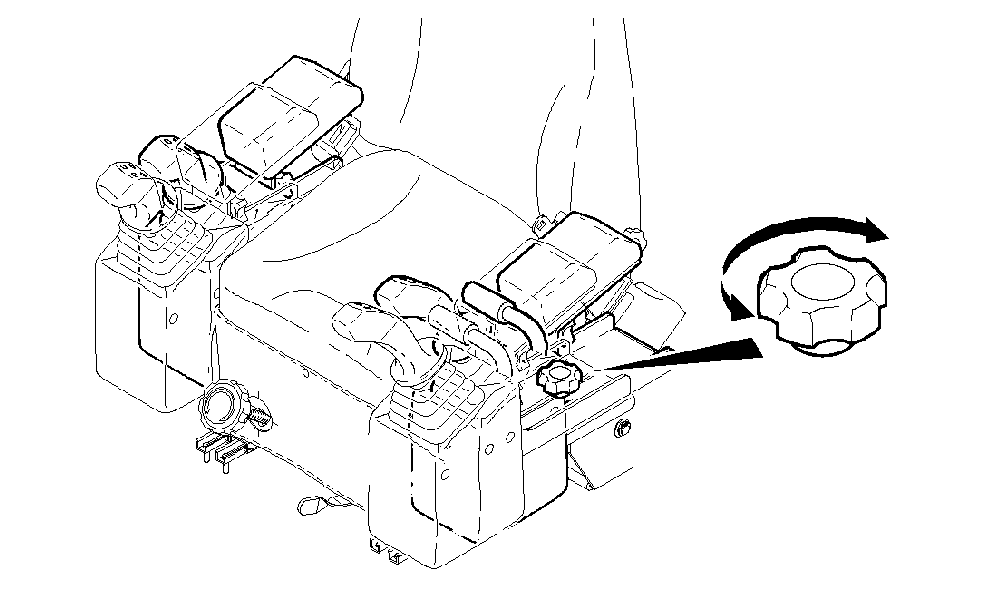

Turn the knob to slide the joystick and armrest forward or rearward.

MR64971,0000048 -19-05DEC01-11/11
