Pilot Hydraulic Circuit and Reset Switch

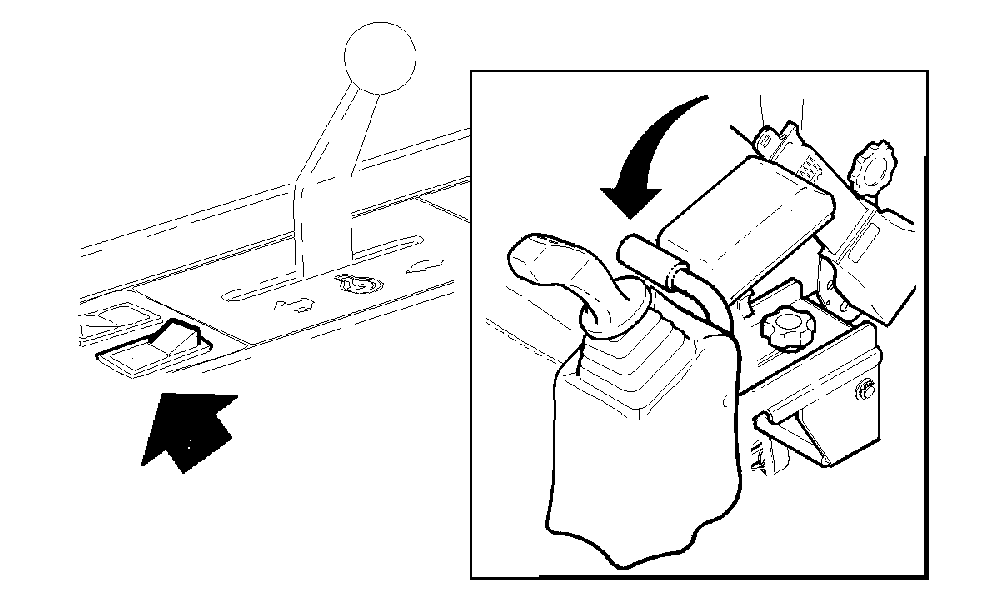

To activate the machine, the left armrest must be lowered first, then the pilot reset switch turned ON. When the pilot hydraulics are activated, the amber light on the gauge panel will illuminate.

MR64971,000004A -19-05DEC01-1/2

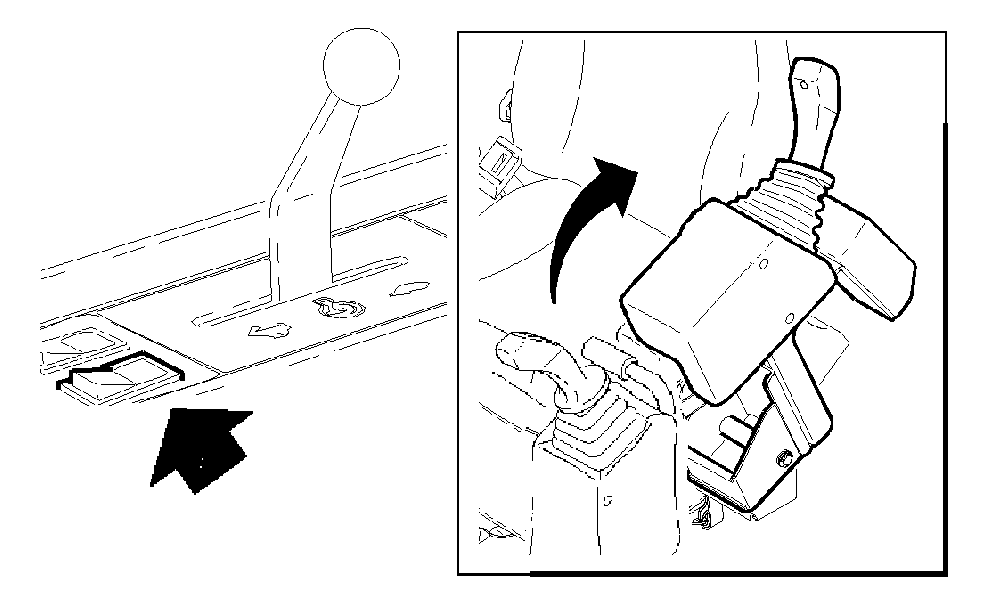

To disable the pilot hydraulics, either raise the left armrest and/or turn the pilot reset switch to OFF. When the armrest is raised, and the pilot switch is still in the ON position, if the armrest is re-lowered, the pilot system will not re-activate until the pilot switch is turned OFF then back ON.
