Secondary Exit (Rear Window)

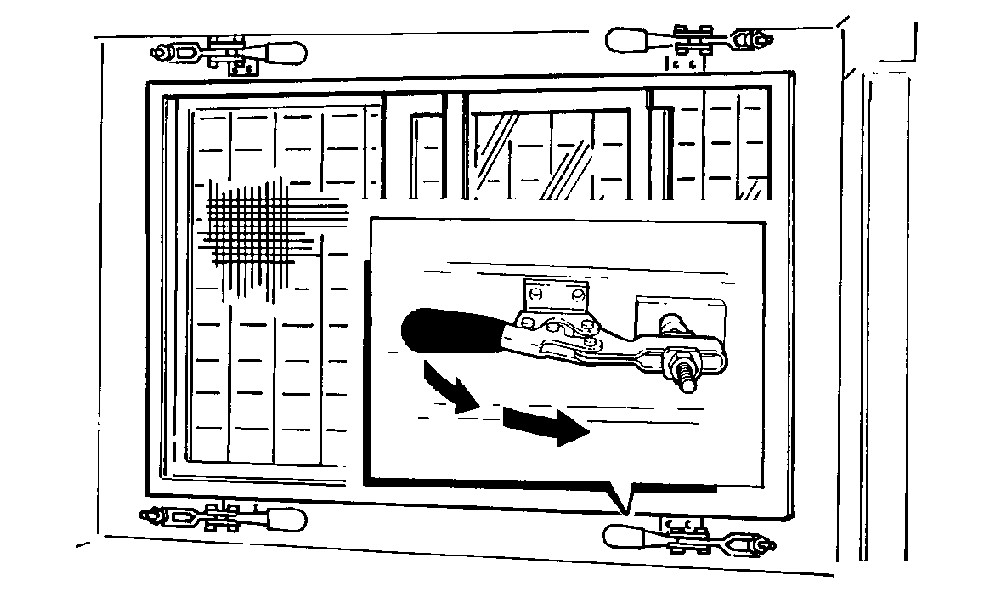

In case of emergency the rear window can be removed by releasing the overcentre latches and pushing out the window.

MR64971,000004C -19-05DEC01-1/2

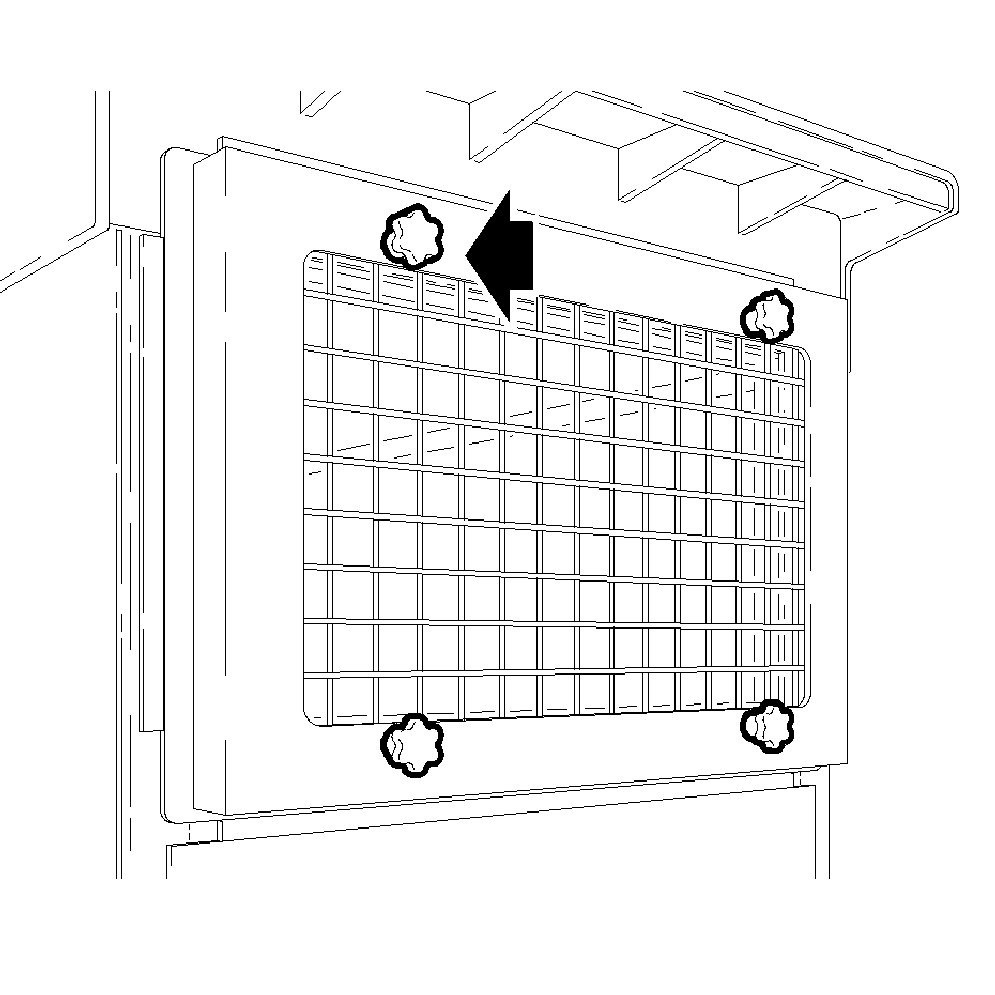

The rear window can also be removed from the outside by removing the four knobs on the window frame and lifting out the window. Every 125 Hours, remove the knobs and add NEVER-SEEZ ® to the threads. Also, remove the window and coat the seal between the window and frame, and frame to cab with petroleum jelly.

NEVER-SEEZ is a trademark of Emhart Chemical Group

MR64971,000004C -19-05DEC01-2/2
