Before Starting the Engine

causym CAUTION: Do not drive or attempt to operate the machine unless seated in the operator's seat with the seat belt fastened, and in full control of all equipment functions. Failure to observe these safety precautions can lead to risk of personal injury.

IMPORTANT: Ensure that the Disc Saw Control is turned OFF.

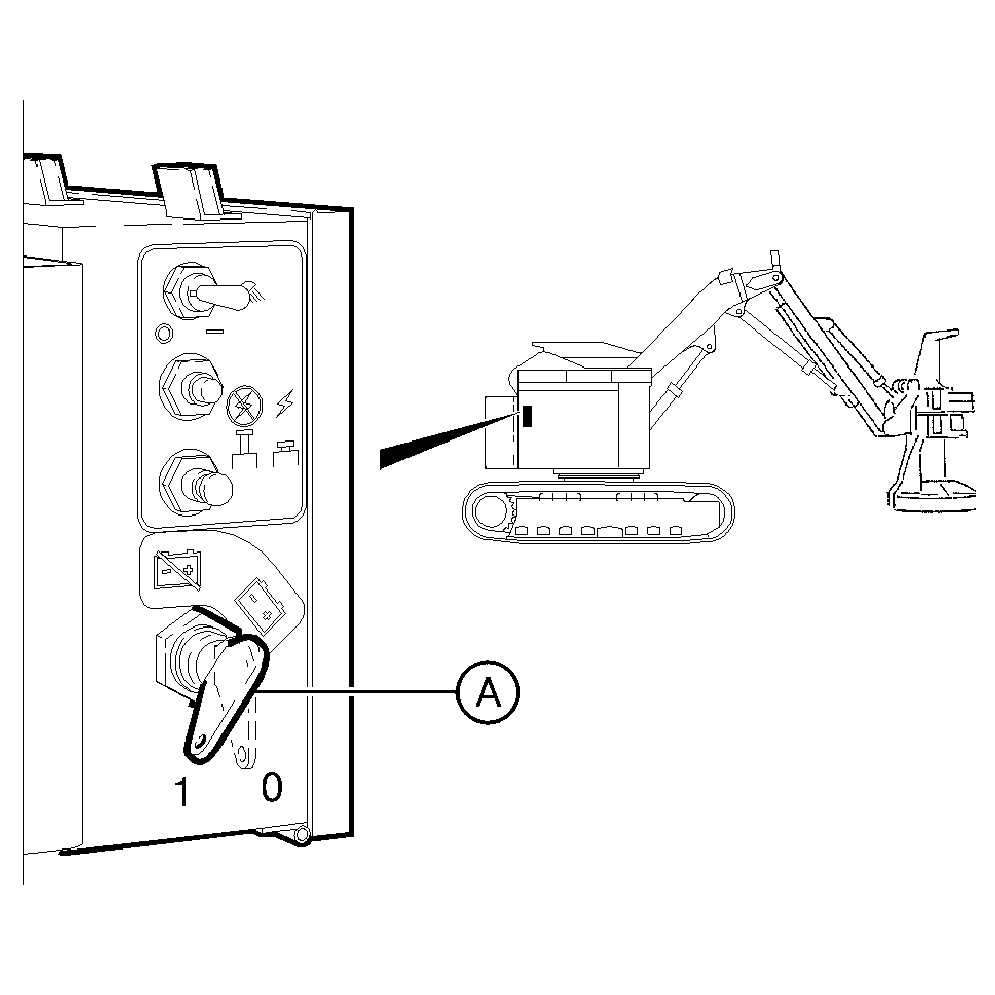

1. Turn the battery disconnect switch ON (position 1).

2. Close the cab door.


A-Battery Disconnect Switch

T147006

MR64971,0000057 -19-05DEC01-1/2

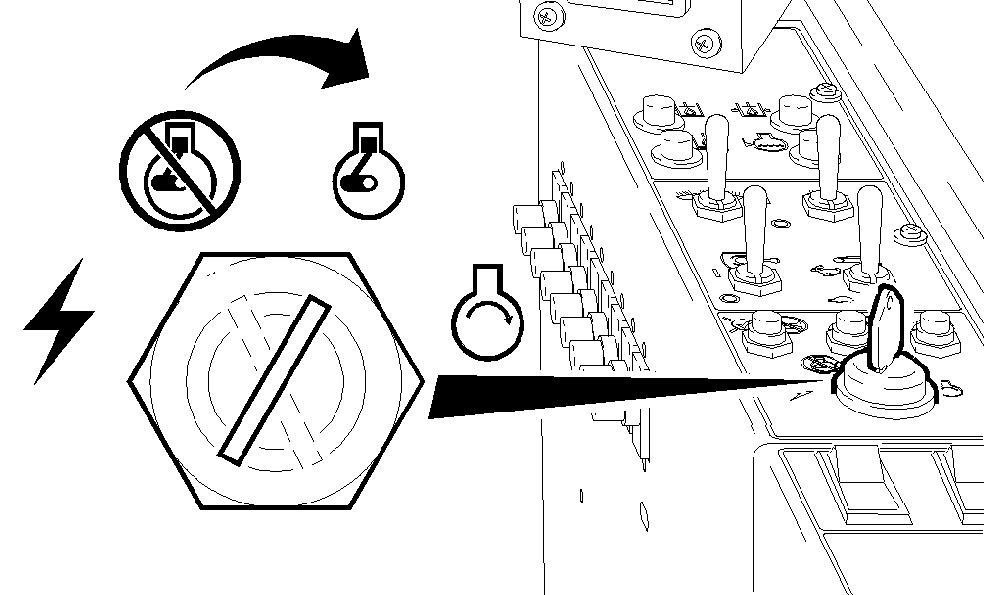

3. Turn the ignition key switch to Run position.

4. Check that the warning lights come on and the buzzer sounds.

T147012

MR64971,0000057 -19-05DEC01-2/2
