causym CAUTION: The engine enclosure door must be closed before engaging the pilot circuit. An alarm will sound if this condition is not met.

NOTE: These instructions assume that the traction drive sprockets are at the rear of the machine.

NOTE: The cab door must be fully closed when operating the machine.

Machine movement is controlled by two foot pedals located at floor level in front of the operator.

MR64971,000005B -19-05DEC01-1/6

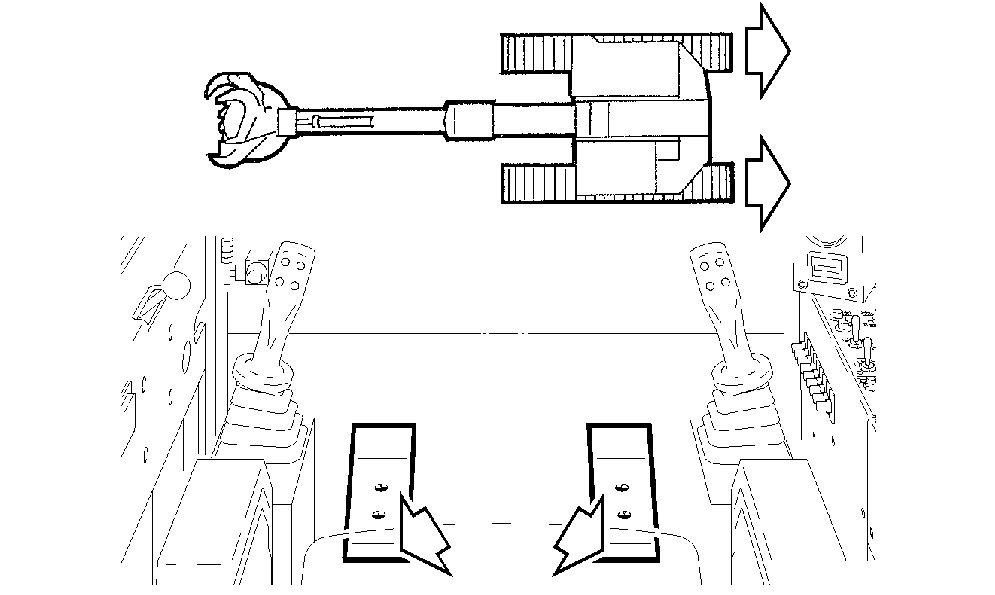

Forward movement is obtained by pushing down on both pedals at the same time with your toes.

MR64971,000005B -19-05DEC01-2/6

Reverse movement is obtained by pushing down on both pedals at the same time with your heels.

MR64971,000005B -19-05DEC01-3/6

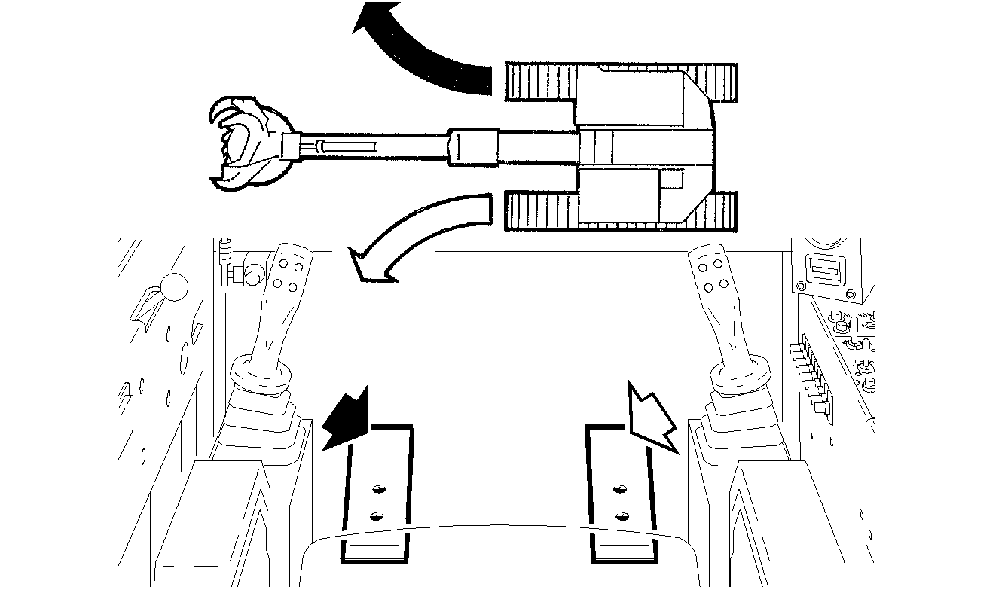

To steer right, press forward with toe on left pedal.

To steer left, press forward with toe on right pedal.

MR64971,000005B -19-05DEC01-4/6

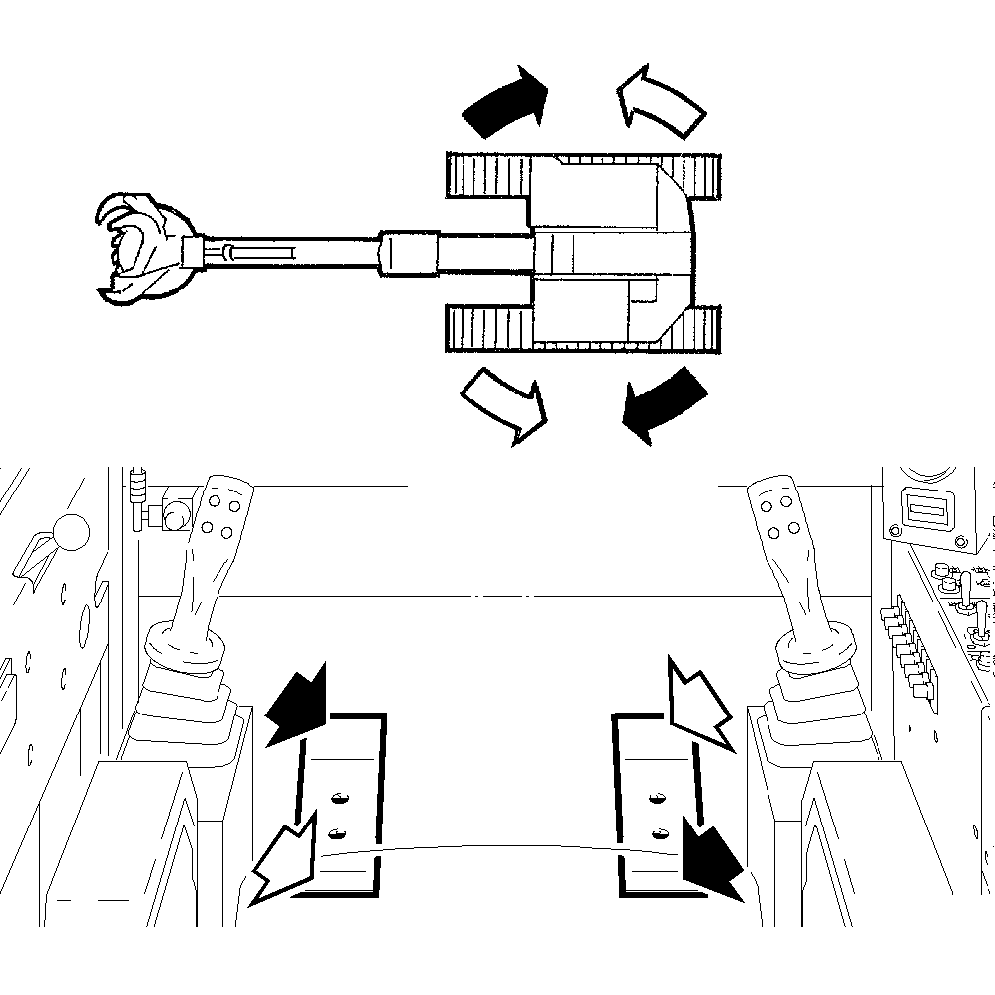

Turning the machine on the spot is done by pushing down on one pedal with your toe while pushing down on the other pedal with your heel.

MR64971,000005B -19-05DEC01-5/6

Travel Speed

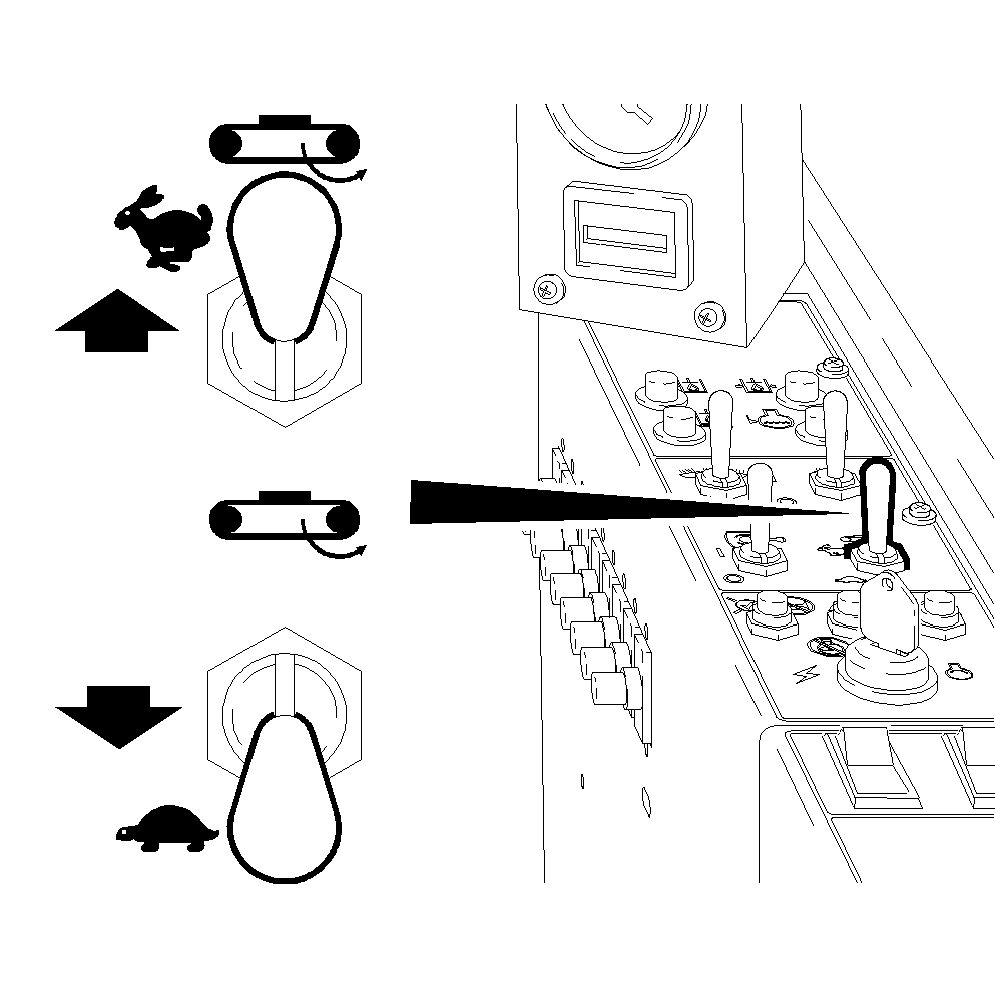

This is a two position switch for Low and High travel speed.
