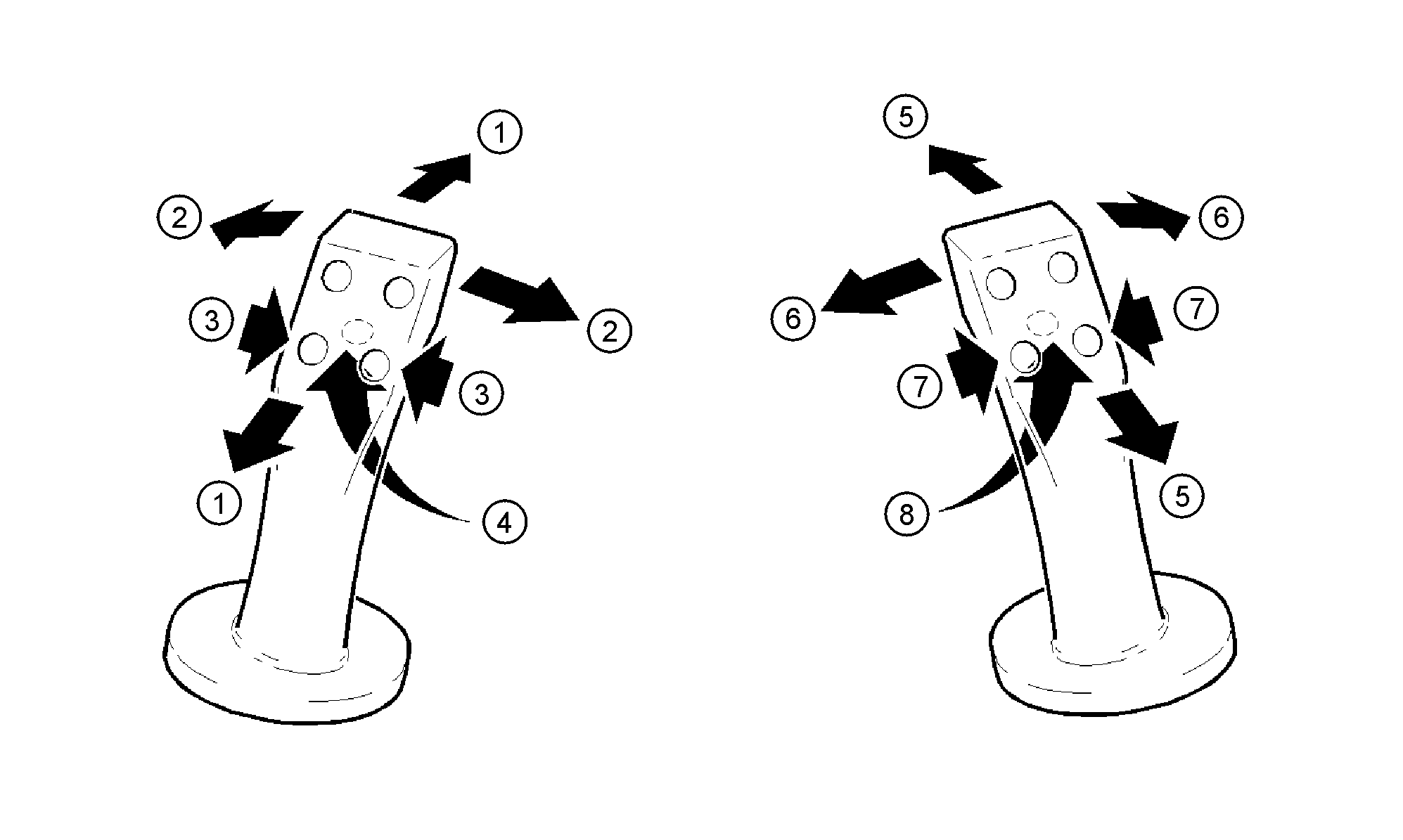

1-Stick Boom
2-Turntable Swing

3-Accumulating Clamps
4-Wrist Tilt Left

5-Hoist Boom
6-Tilt Control

7-Harvesting Clamps
8-Wrist Tilt Right

CAUTION: Do not drive or attempt to operate the machine unless seated in the operator's seat with the seat belt fastened and in full control of all equipment functions. Failure to observe these safety precautions can lead to risk of personal injury.

CAUTION: The control functions are described as they are arranged when the machine leaves the factory. Some of these may be changed to suit particular operating situations. Ensure that you are aware of all of the functions before operating any of the controls.

CAUTION: The engine enclosure door must be closed before engaging the pilot circuit. An alarm will sound if this condition is not met.

Each hand control (joystick) operates four functions and automatically returns to neutral when released.

To activate the hydraulic circuit, lower the left armrest and press the pilot reset switch ON.

MR64971,000005D -19-05DEC01-1/1
