Joystick Control Lever - Left Hand

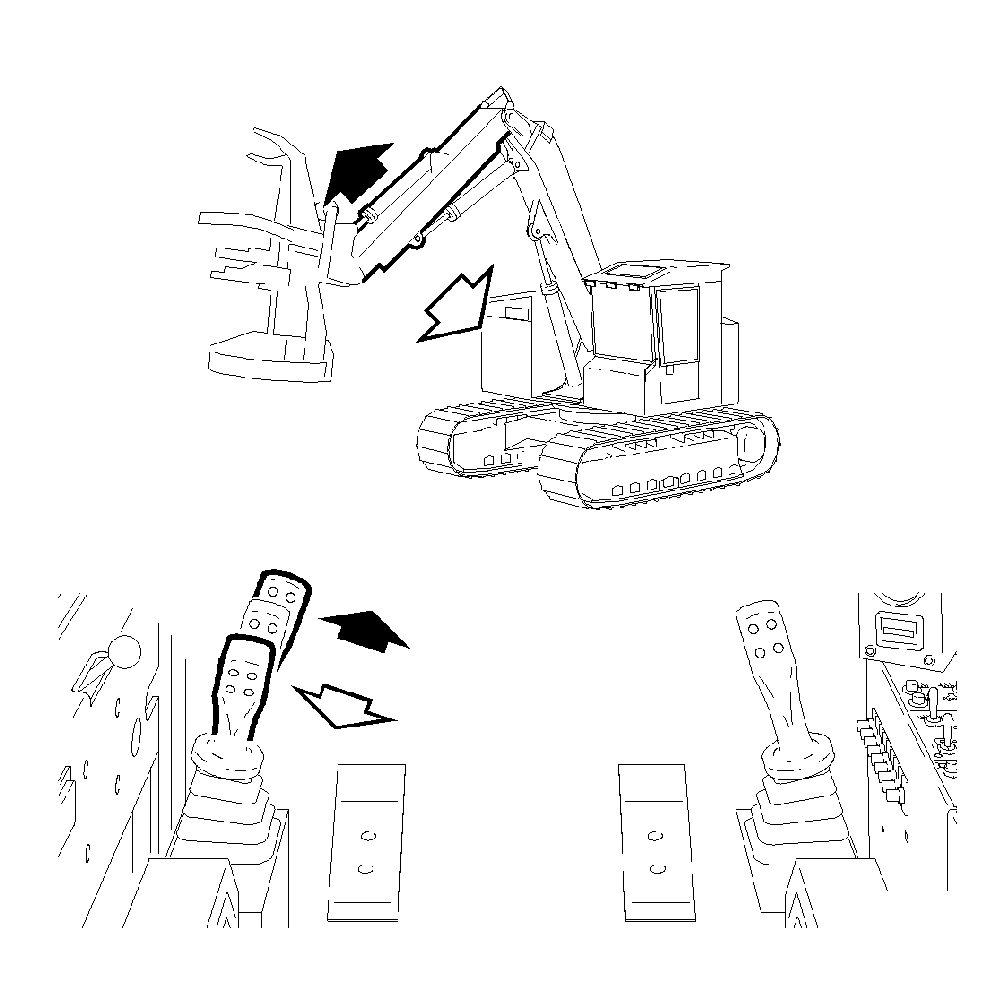

Stick Boom
Push the lever forward to boom out.
Pull the lever back to boom in.
|
|
|
|
MR64971,000005E -19-05DEC01-1/4
|

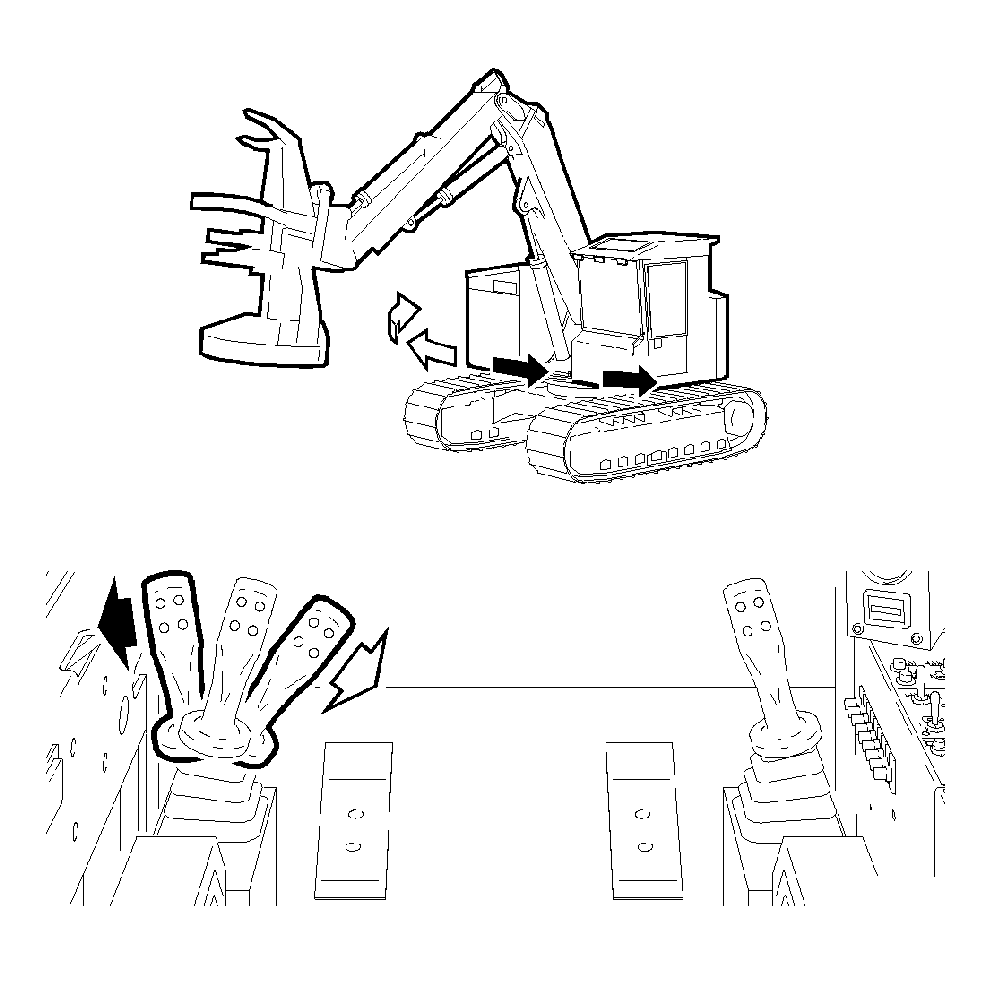

Turntable Swing
Move the lever to the left to swing left.
Move the lever to the right to swing right.
|
|
|
|
MR64971,000005E -19-05DEC01-2/4
|

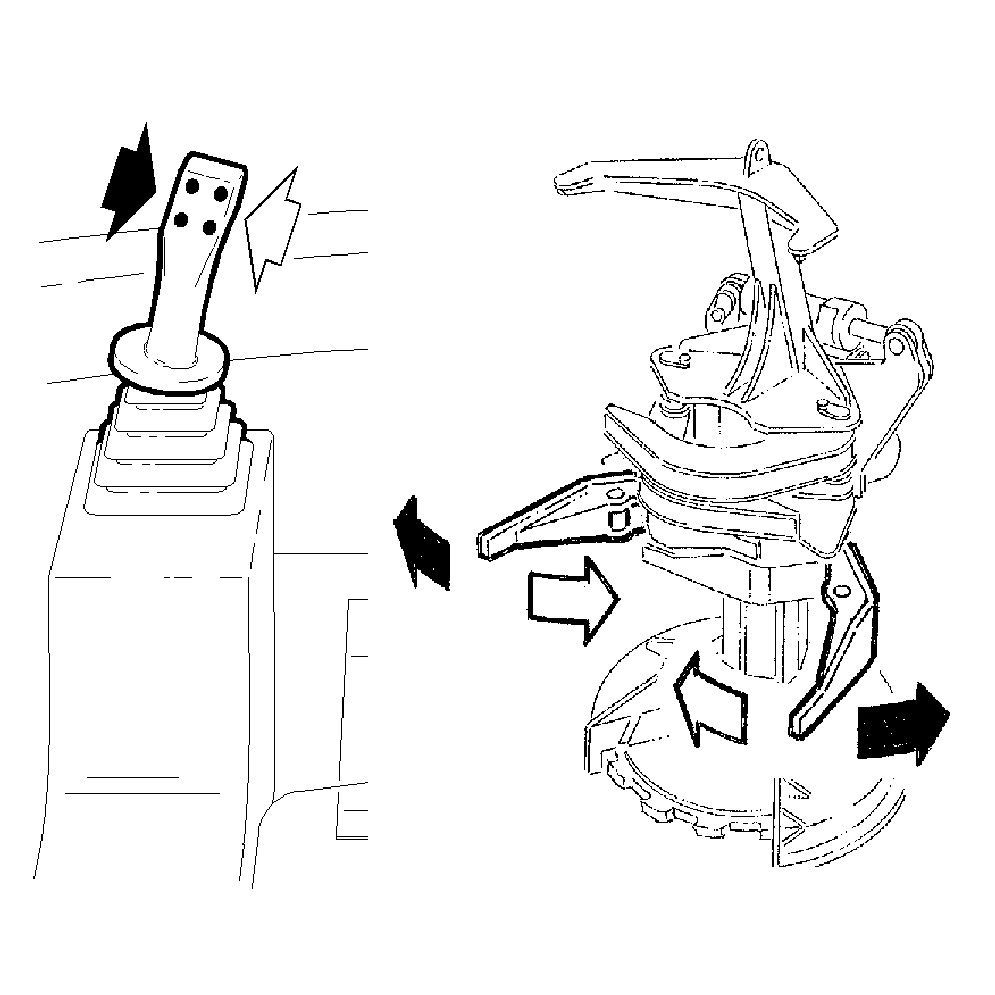

Lower (Accumulating) Clamps Open/Close
Press the right side thumb switch to close the lower clamps.
Press the left side thumb switch to open the lower clamps.
|
|
|
|
MR64971,000005E -19-05DEC01-3/4
|

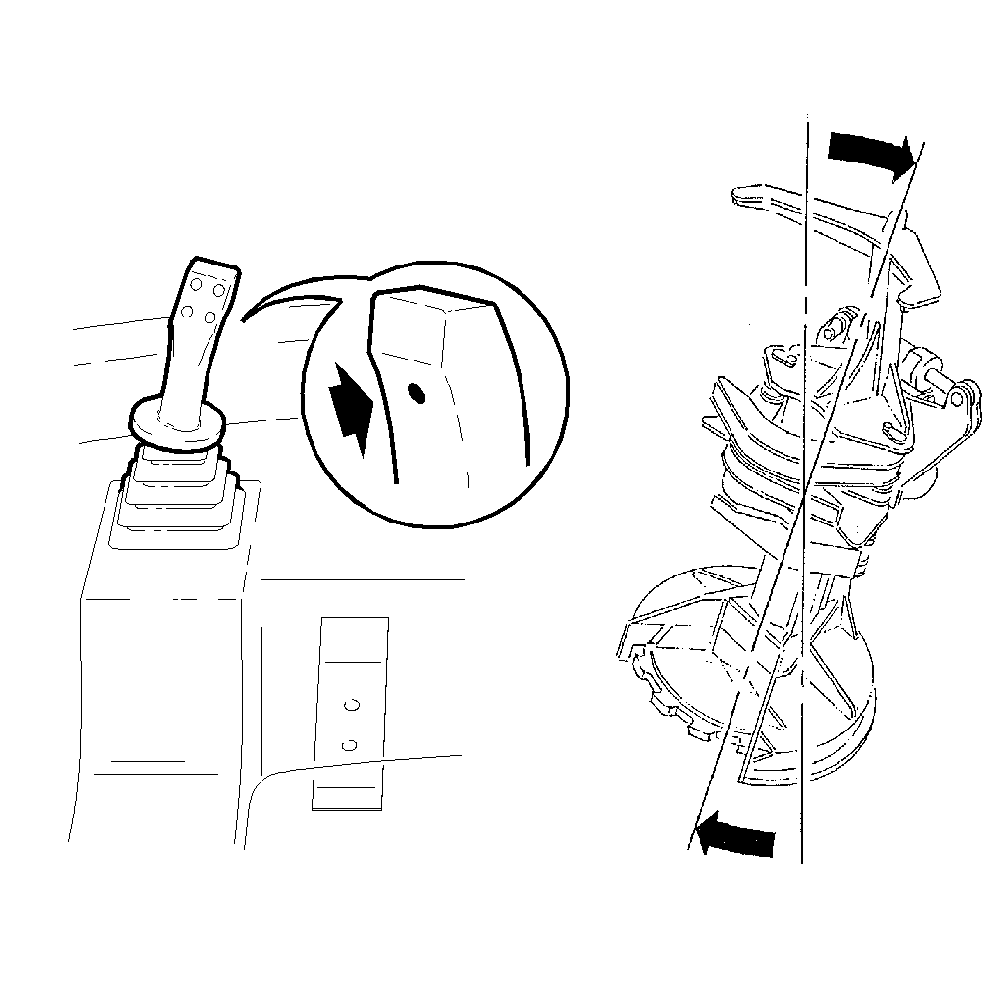

Wrist Tilt Left
Press the finger switch to tilt the felling head left.
|
|
|
|
MR64971,000005E -19-05DEC01-4/4
|
|
