Joystick Control Lever - Right Hand

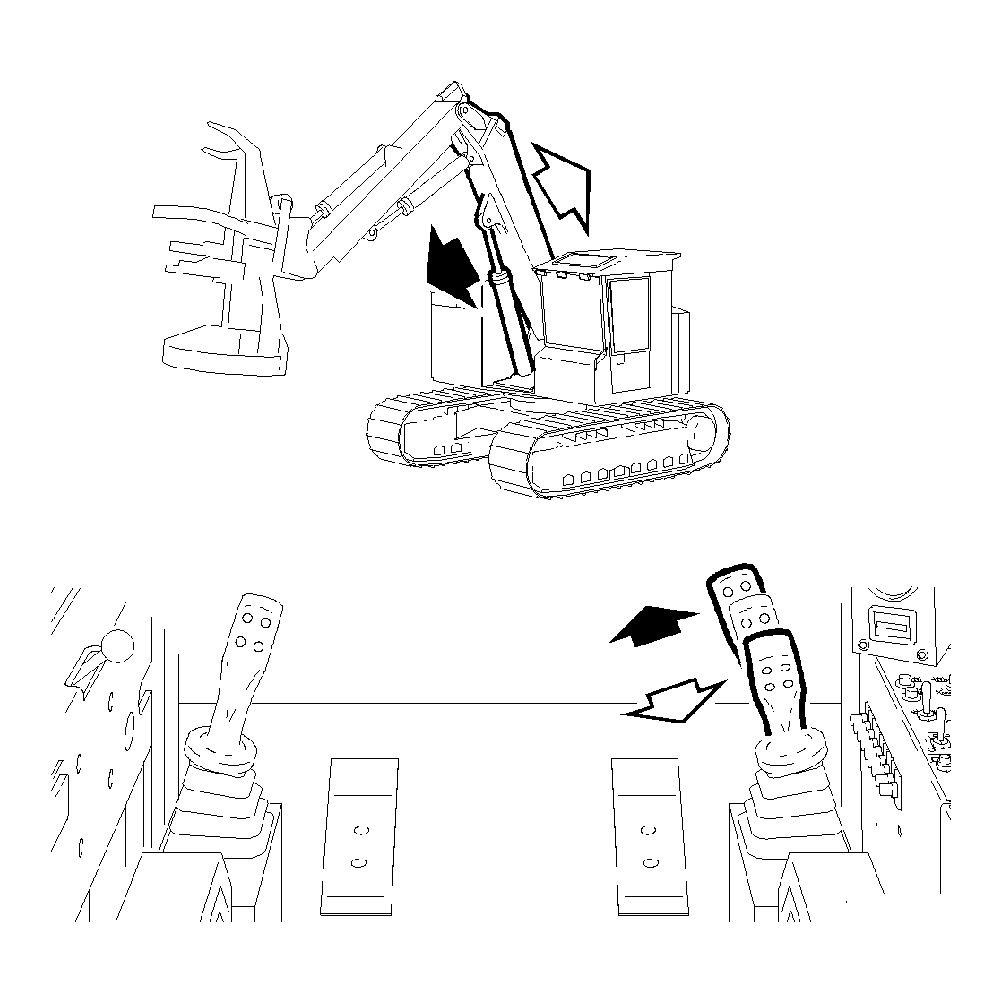

Hoist Boom
Push the lever forward to lower the boom.
Pull the lever back to raise the boom.
|
|
|
|
MR64971,000005F -19-05DEC01-1/4
|

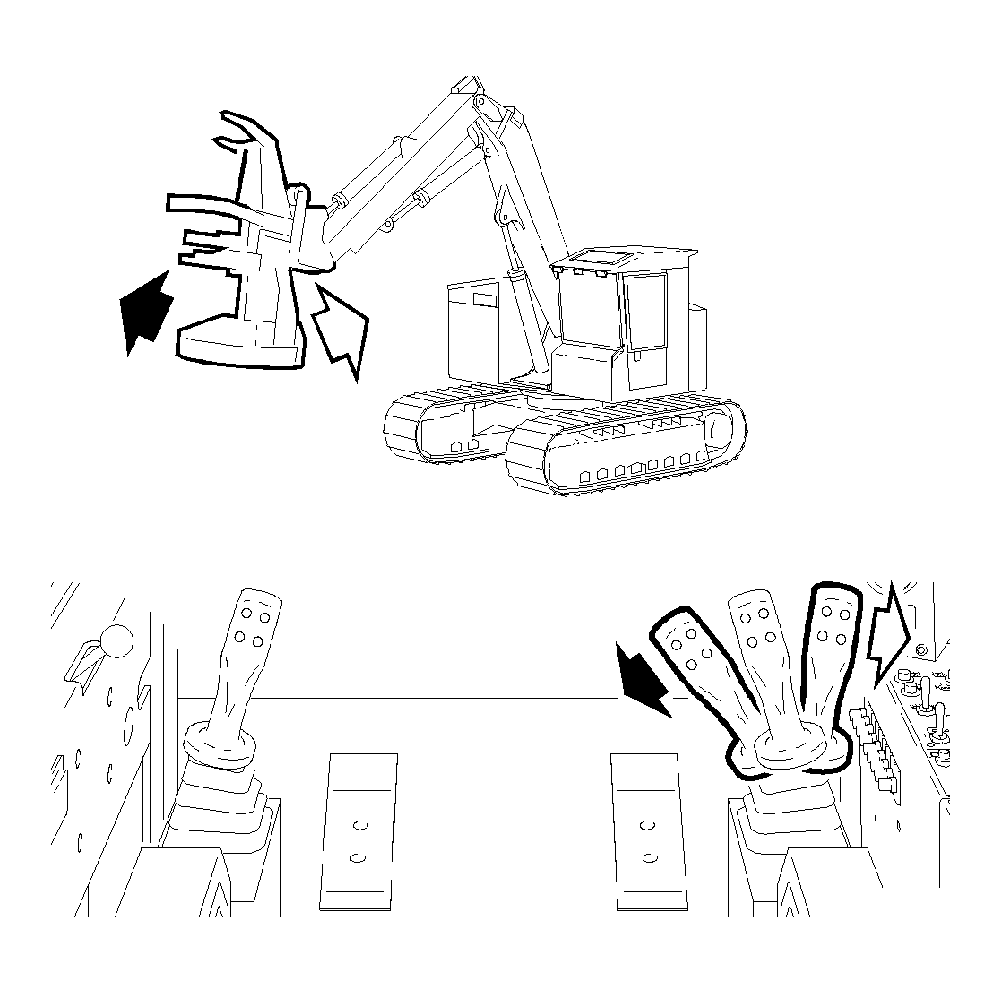

Felling Head Tilt
Move the lever to the left to tilt the felling head in.
Move the lever to the right to tilt the felling head out.
|
|
|
|
MR64971,000005F -19-05DEC01-2/4
|
Upper (Harvesting) Clamps Open/Close
Press the left side thumb switch to close the upper clamps.
Press the right side thumb switch to open the upper clamps.
|
|
|
|
MR64971,000005F -19-05DEC01-3/4
|

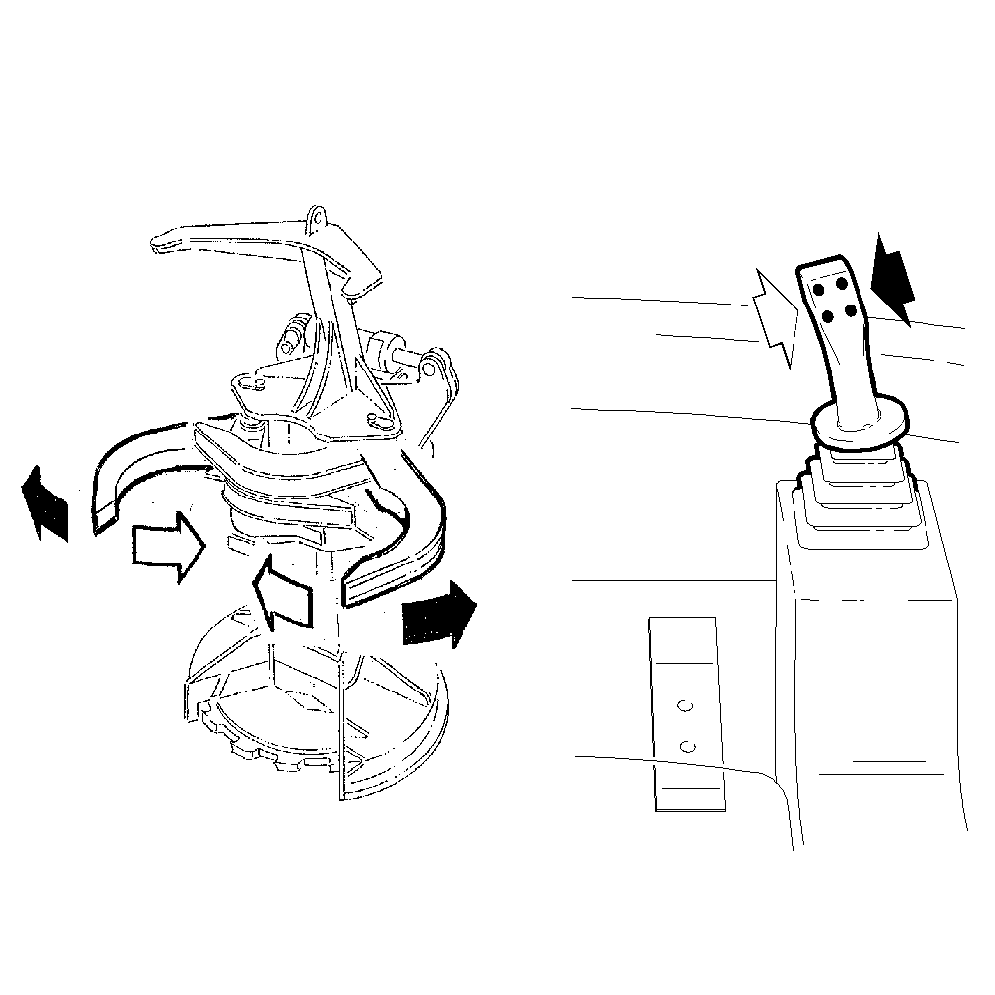

Wrist Tilt Right
Press the finger switch to tilt the felling head right.
|
|
|
|
