The following operating techniques cover some of the important points for the operator to keep in mind while using the Feller-Buncher.

This information is intended as a guide for the new operator as well as an experienced operator changing from another type of Feller-Buncher to achieve the best possible performance and production output.

The most preferable felling approach is where the trees are placed in rows, (either single stems or pre-bunched), with the butt end pointing toward the skidding direction. Plan the felling pattern and skidding routes so that potential trouble spots can be avoided.

MR64971,0000063 -19-05DEC01-1/3

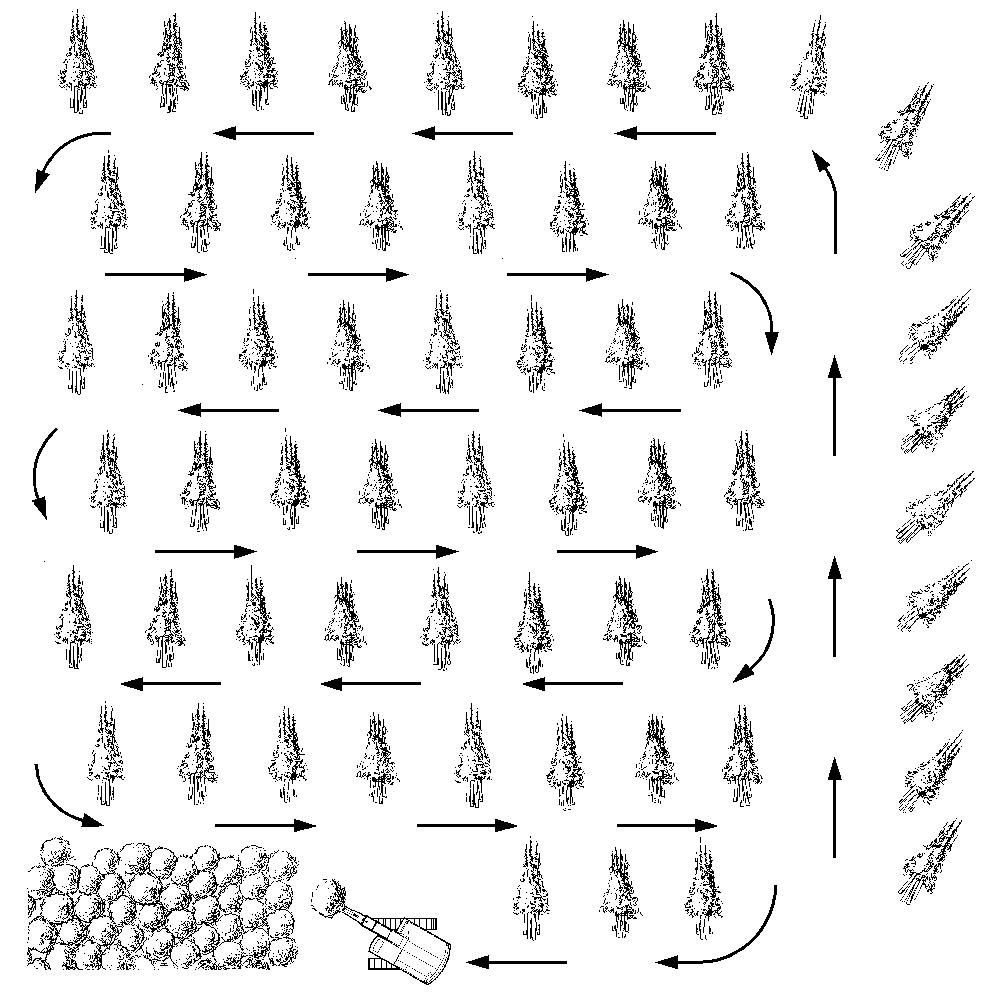

Start the felling operation at the outer boundary of the logging area and progressively move the machine forward in continuous felling and bunching cycles.

MR64971,0000063 -19-05DEC01-2/3

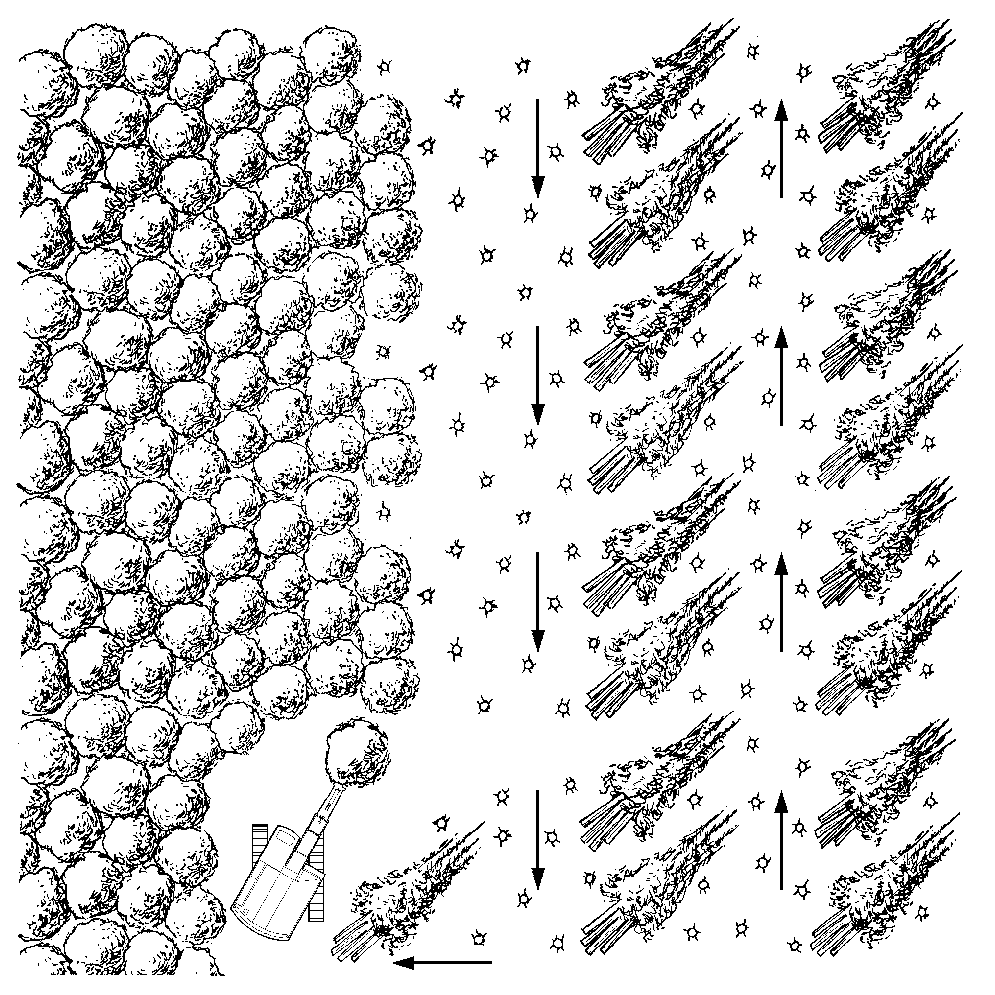

This approach is used on level ground or in winter conditions where snow is greater than 2 feet (60 mm) deep and tracks from the Feller-Buncher may present problems for skidding operation.

MR64971,0000063 -19-05DEC01-3/3
