Felling Head

Read and understand the Attachments Technical Manual thoroughly.

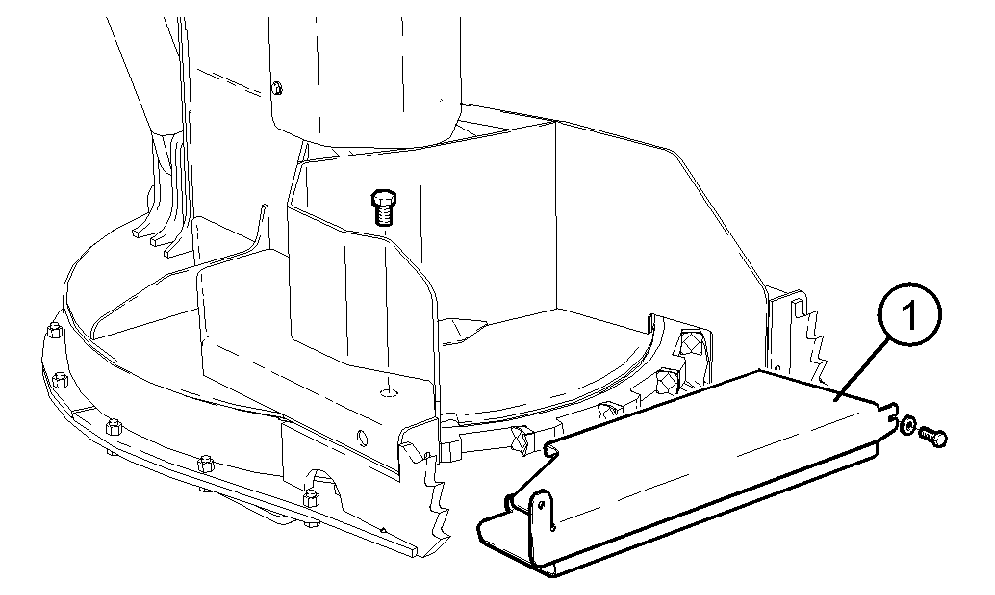

With the felling head lowered to the ground and the engine shut off, remove the saw guard (1) and keep for reinstallation during servicing of the felling head. (FS120 felling head shown).


1-Saw Guard

T147044

MR64971,0000064 -19-05DEC01-1/1
